GAP FILLERS

T-flex

TM

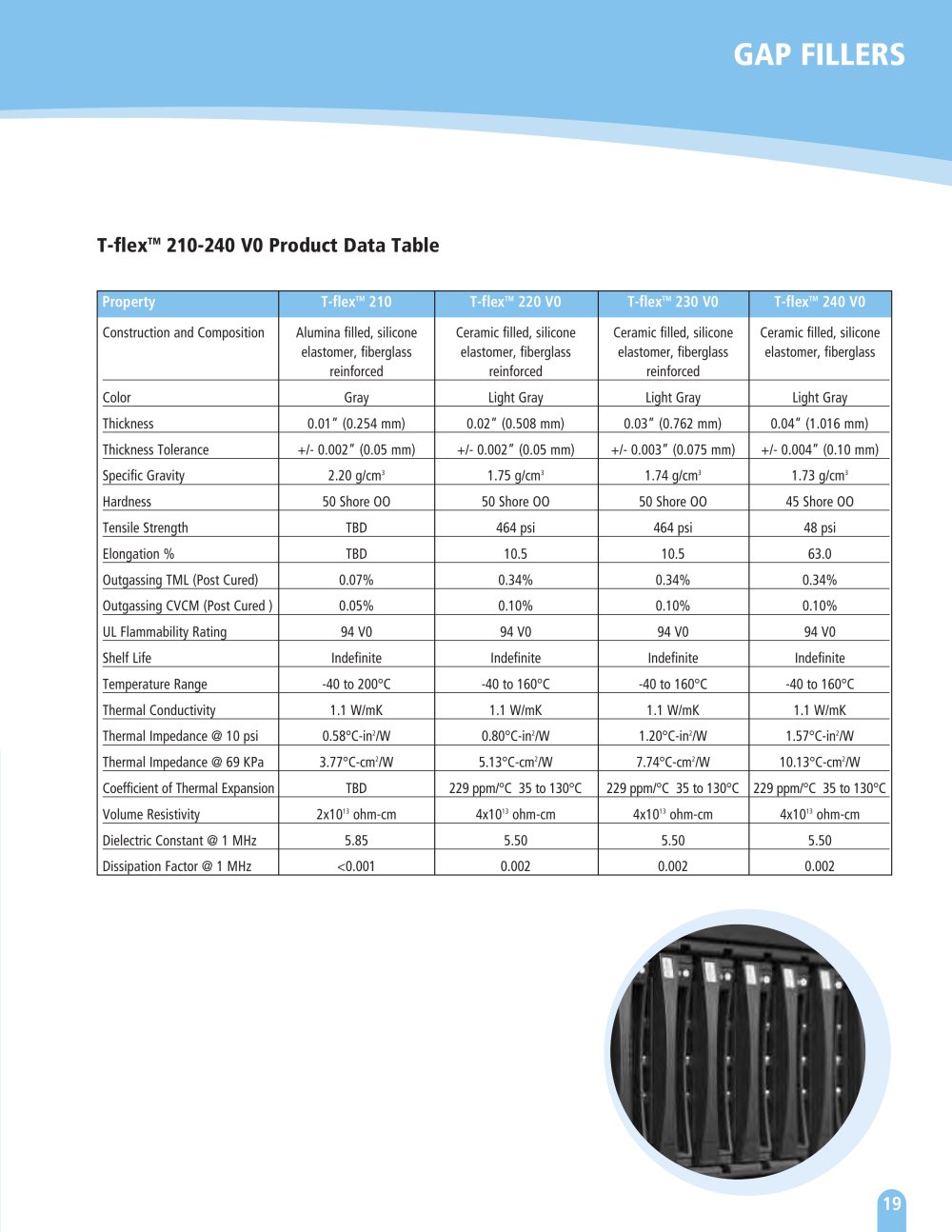

210-240 V0 Product Data Table

PropertyT-flex

TM

210 T-flex

TM

220 V0T-flex

TM

230 V0T-flex

TM

240 V0

Construction and Composition Alumina filled, silicone Ceramic filled, silicone Ceramic filled, siliconeCeramic filled, siliconeelastomer, fiberglass elastomer, fiberglass elastomer, fiberglasselastomer, fiberglass reinforced reinforcedreinforced ColorGrayLight GrayLight GrayLight Gray Thickness0.01” (0.254 mm)0.02” (0.508 mm)0.03” (0.762 mm)0.04” (1.016 mm) Thickness Tolerance+/- 0.002” (0.05 mm)+/- 0.002” (0.05 mm)+/- 0.003” (0.075 mm) +/- 0.004” (0.10 mm) Specific Gravity 2.20 g/cm
3 1.75 g/cm
3 1.74 g/cm
3 1.73 g/cm
3 Hardness50 Shore OO 50 Shore OO 50 Shore OO 45 Shore OO Tensile StrengthTBD464 psi 464 psi 48 psi Elongation % TBD10.510.563.0 Outgassing TML (Post Cured) 0.07%0.34%0.34%0.34% Outgassing CVCM (Post Cured ) 0.05%0.10%0.10%0.10% UL Flammability Rating 94 V0 94 V0 94 V0 94 V0 Shelf LifeIndefiniteIndefiniteIndefiniteIndefinite Temperature Range -40 to 200°C-40 to 160°C-40 to 160°C-40 to 160°C Thermal Conductivity1.1 W/mK 1.1 W/mK 1.1 W/mK 1.1 W/mK Thermal Impedance @ 10 psi 0.58°C-in
2 /W0.80°C-in
2 /W1.20°C-in
2 /W1.57°C-in
2 /W Thermal Impedance @ 69 KPa 3.77°C-cm
2 /W5.13°C-cm
2 /W7.74°C-cm
2 /W10.13°C-cm
2 /W Coefficient of Thermal ExpansionTBD 229 ppm/°C 35 to 130°C229 ppm/°C 35 to 130°C229 ppm/°C 35 to 130°C Volume Resistivity 2x10
13 ohm-cm4x10
13 ohm-cm4x10
13 ohm-cm4x10
13 ohm-cm Dielectric Constant @ 1 MHz5.855.505.505.50Dissipation Factor @ 1 MHz <0.0010.0020.0020.002
