Thermal Management Solutions - 11 / 96 Pages

GAP FILLERS

T-pli

TM

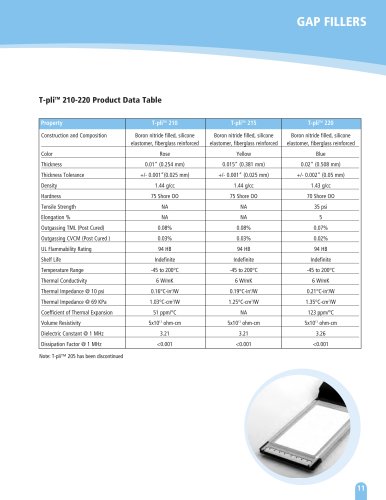

210-220 Product Data Table

PropertyT-pli

TM

210T-pli

TM

215T-pli

TM

220

Construction and Composition Boron nitride filled, silicone Boron nitride filled, silicone Boron nitride filled, silicone elastomer, fiberglass reinforced elastomer, fiberglass reinforcedelastomer, fiberglass reinforced ColorRoseYellowBlue Thickness0.01 (0.254 mm)0.015Ԕ (0.381 mm)0.02 (0.508 mm) Thickness Tolerance+/- 0.001Ԕ(0.025 mm)+/- 0.001 (0.025 mm) +/- 0.002Ԕ (0.05 mm) Density1.44 g/cc 1.44 g/cc1.43 g/cc Hardness75 Shore OO 75 Shore OO 70 Shore OO Tensile StrengthNANA35 psi Elongation % NANA5 Outgassing TML (Post Cured) 0.08%0.08%0.07% Outgassing CVCM (Post Cured ) 0.03%0.03%0.02% UL Flammability Rating 94 HB 94 HB 94 HB Shelf LifeIndefiniteIndefiniteIndefinite Temperature Range -45 to 200C-45 to 200аC-45 to 200C Thermal Conductivity6W/mK 6 W/mK 6 W/mK Thermal Impedance @ 10 psi 0.16аC-in >
2 /W0.19C-in >
2 /W0.21аC-in >
2 /W Thermal Impedance @ 69 KPa 1.03C-cm >
2 /W1.25аC-cm >
2 /W1.35C-cm >
2 /W Coefficient of Thermal Expansion51 ppm/аC NA123 ppm/C Volume Resistivity 5x10 >
13 ohm-cm5x10 >
13 ohm-cm5x10 >
13 ohm-cm Dielectric Constant @ 1 MHz3.213.213.26Dissipation Factor @ 1 MHz <0.001<0.001<0.001 >
Note: T-pliЙ 205 has been discontinued

11
