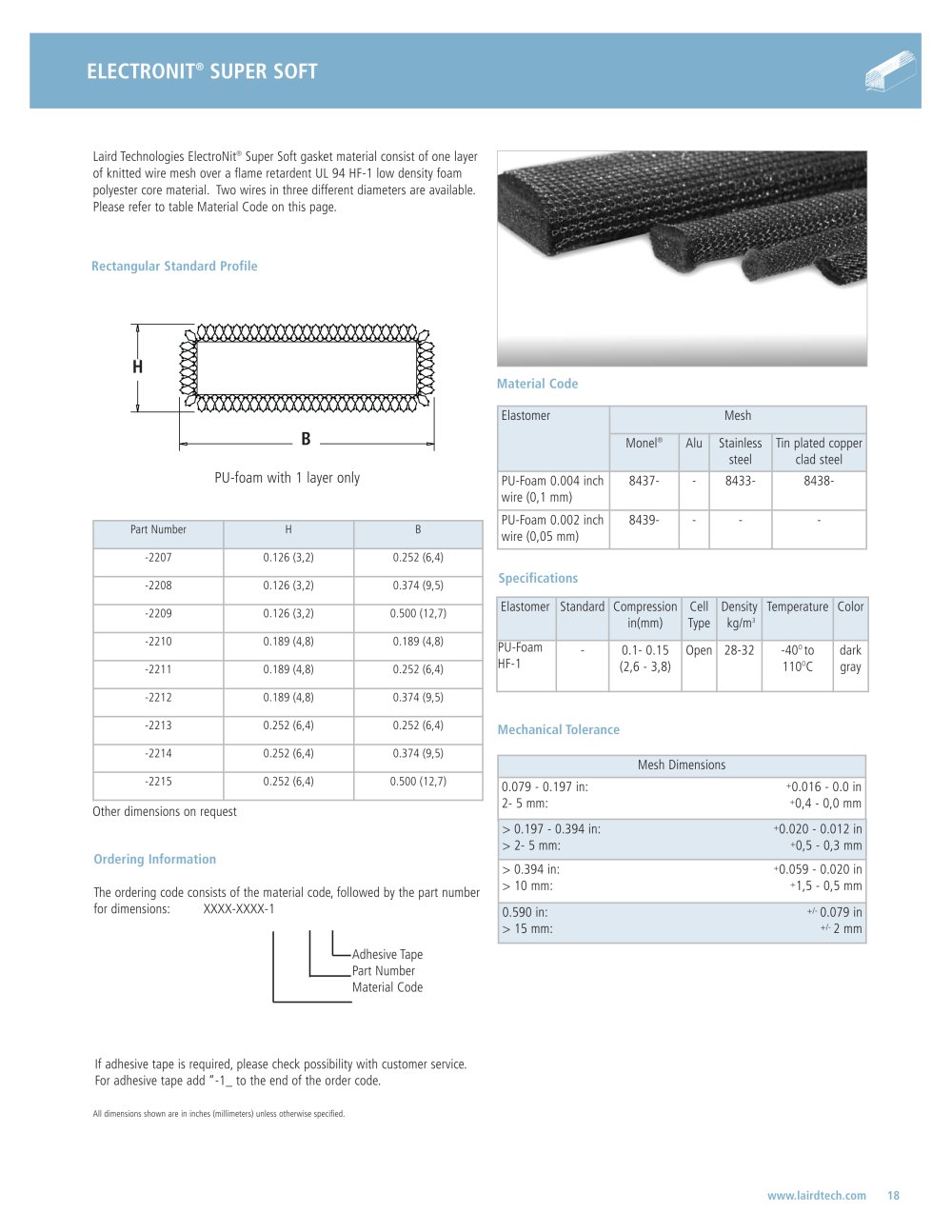

ELECTRONIT

®

SUPER SOFT

Laird Technologies ElectroNit
® Super Soft gasket material consist of one layerof knitted wire mesh over a flame retardent UL 94 HF-1 low density foam polyester core material.Two wires in three different diameters are available. Please refer to table Material Code on this page. Rectangular Standard Profile Material Code

H

H Elastomer Mesh

B

B Monel
® Alu Stainlesssteel Tin plated copperclad steel

PU-foam with 1 layer only

PU-Foam 0.004 inchwire (0,1 mm) 8437- - 8433- 8438-
Part Number H B PU-Foam 0.002 inch wire (0,05 mm) 8439- - - -
-2207 0.126 (3,2) 0.252 (6,4) -2208 0.126 (3,2) 0.374 (9,5) Specifications
-2209 0.126 (3,2) 0.500 (12,7) Elastomer Standard Compressionin(mm) CellType Densitykg/m Temperature Color
3 -2210 0.189 (4,8) 0.189 (4,8) PU-Foam HF-1 - 0.1- 0.15(2,6 - 3,8) Open 28-32 -40
O to110 darkgray
-2211 0.189 (4,8) 0.252 (6,4) O C
-2212 0.189 (4,8) 0.374 (9,5) -2213 0.252 (6,4) 0.252 (6,4) Mechanical Tolerance
-2214 0.252 (6,4) 0.374 (9,5) Mesh Dimensions
-2215 0.252 (6,4) 0.500 (12,7) 0.079 - 0.197 in:
+ 0.016 - 0.0 in2- 5 mm:
+ Other dimensions on request 0,4 - 0,0 mm > 0.197 - 0.394 in:
+ 0.020 - 0.012 in> 2- 5 mm:
+ 0,5 - 0,3 mm Ordering Information > 0.394 in:
+ 0.059 - 0.020 in> 10 mm: The ordering code consists of the material code,followed by the part numberfor dimensions:XXXX-XXXX-1
+ 1,5 - 0,5 mm 0.590 in:
+/- 0.079 in> 15 mm:
+/- 2 mm Adhesive Tape Part Number Material CodeIf adhesive tape is required,please check possibility with customer service.For adhesive tape add “-1_ to the end of the order code.
All dimensions shown are in inches (millimeters) unless otherwise specified. www.lairdtech.com18
