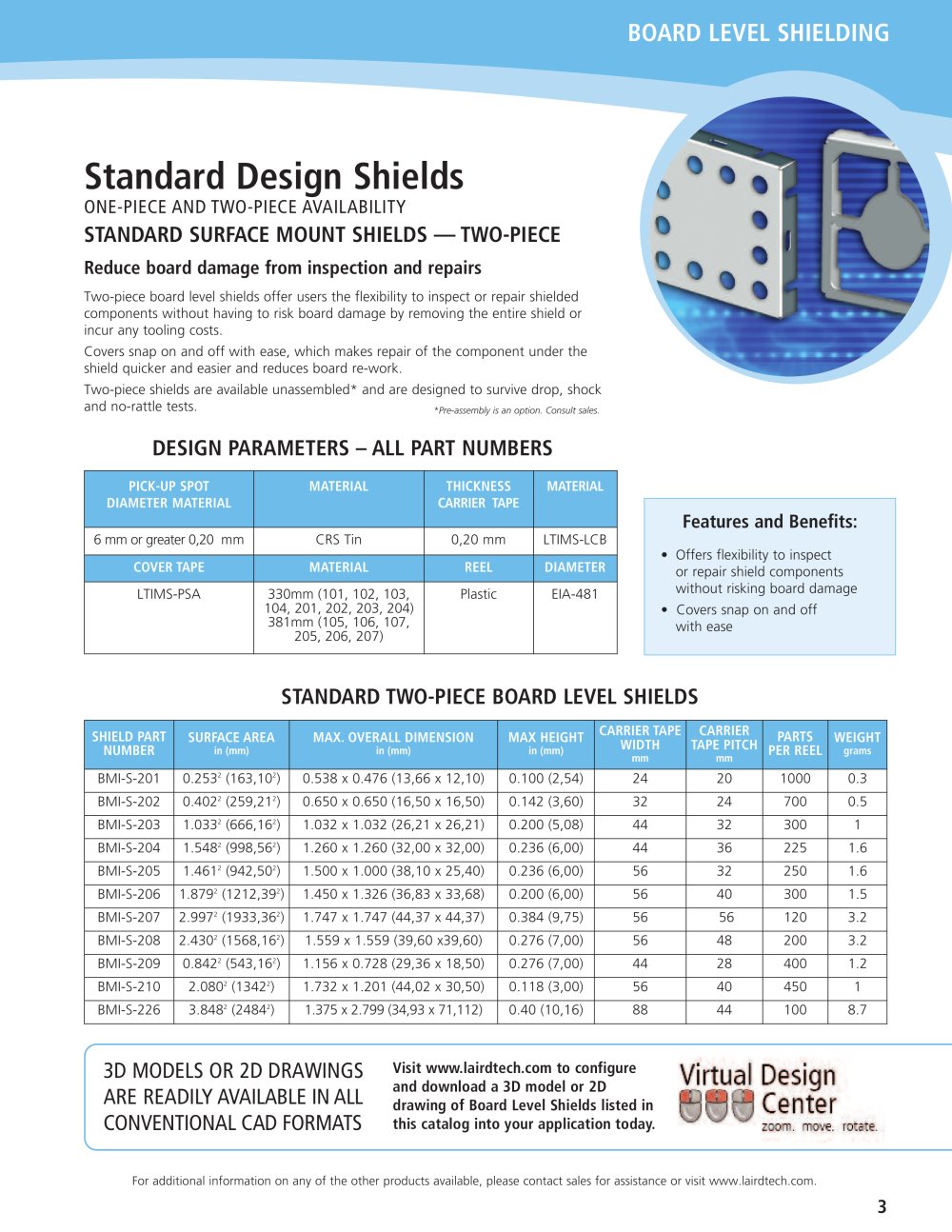

BOARD LEVEL SHIELDING

EMI ESSENTIALS - 12624 Standard Design Shields

ONE-PIECE AND TWO-PIECE AVAILABILITY

STANDARD SURFACE MOUNT SHIELDS — TWO-PIECE

Reduce board damage from inspection and repairs

Two-piece board level shields offer users the flexibility to inspect or repair shieldedcomponents without having to risk board damage by removing the entire shield or incur any tooling costs. Covers snap on and off with ease, which makes repair of the component under theshield quicker and easier and reduces board re-work. Two-piece shields are available unassembled* and are designed to survive drop, shockand no-rattle tests.
*Pre-assembly is an option. Consult sales.

DESIGN PARAMETERS – ALL PART NUMBERS

PICK-UP SPOT DIAMETERMATERIAL MATERIAL THICKNESS CARRIER TAPE MATERIAL

Features and Benefits:

6mm or greater 0,20 mm CRS Tin 0,20 mm LTIMS-LCB •Offers flexibility to inspect or repair shield components without risking board damage•Covers snap on and off with ease COVER TAPE MATERIAL REEL DIAMETER LTIMS-PSA 330mm (101, 102, 103,104, 201, 202, 203, 204) 381mm (105, 106, 107,205, 206,207) Plastic EIA-481

STANDARD TWO-PIECE BOARD LEVEL SHIELDS

SHIELD PARTNUMBER SURFACE AREA MAX.OVERALL DIMENSION MAX HEIGHT CARRIER TAPEWIDTH CARRIERTAPE PITCH PARTSPER REEL WEIGHT
in (mm) in (mm) in (mm) mm mm grams BMI-S-2010.253
2 (163,10
2 )0.538 x 0.476 (13,66 x 12,10)0.100 (2,54)24 2010000.3BMI-S-2020.402
2 (259,21
2 )0.650 x 0.650 (16,50 x 16,50)0.142 (3,60)3224 7000.5BMI-S-2031.033
2 (666,16
2 )1.032 x 1.032 (26,21 x 26,21)0.200 (5,08)44 32 3001BMI-S-2041.548
2 (998,56
2 )1.260 x 1.260 (32,00 x 32,00)0.236 (6,00)44 36 2251.6BMI-S-2051.461
2 (942,50
2 )1.500 x 1.000 (38,10 x 25,40)0.236 (6,00)56 32 2501.6BMI-S-2061.879
2 (1212,39
2 )1.450 x 1.326 (36,83 x 33,68)0.200 (6,00)56 40 3001.5BMI-S-2072.997
2 (1933,36
2 )1.747 x 1.747 (44,37 x 44,37)0.384 (9,75)56 56 1203.2BMI-S-2082.430
2 (1568,16
2 )1.559 x 1.559 (39,60 x39,60)0.276 (7,00)56 48 2003.2BMI-S-2090.842
2 (543,16
2 )1.156 x 0.728 (29,36 x 18,50)0.276 (7,00)4428 4001.2BMI-S-2102.080
2 (1342
2 )1.732 x 1.201 (44,02 x 30,50)0.118 (3,00)56 40 4501BMI-S-2263.848
2 (2484
2 )1.375 x 2.799 (34,93 x 71,112)0.40 (10,16)88 44 1008.7

3D MODELS OR 2D DRAWINGS ARE READILYAVAILABLE IN ALLCONVENTIONAL CAD FORMATS

Visit www.lairdtech.com to configure and download a 3D model or 2D drawing of Board Level Shields listed in this catalog into your application today.

For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.
