BOARD LEVEL SHIELDING

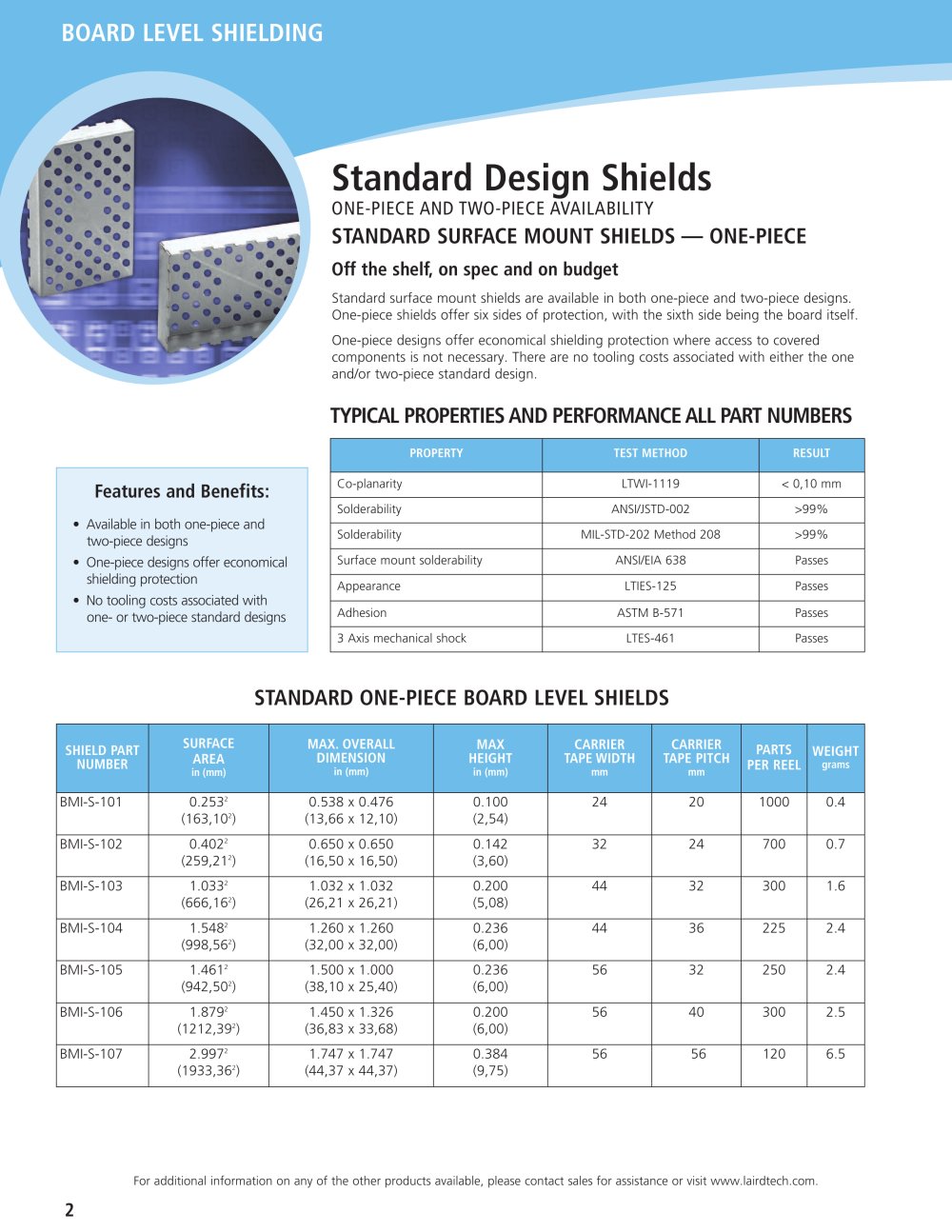

EMI ESSENTIALS - 12624 Standard Design Shields

ONE-PIECE AND TWO-PIECE AVAILABILITY

STANDARD SURFACE MOUNT SHIELDS — ONE-PIECE

Off the shelf,on spec and on budget

Standard surface mount shields are available in both one-piece and two-piece designs.One-piece shields offer six sides of protection, with the sixth side being the board itself. One-piece designs offer economical shielding protection where access to coveredcomponents is not necessary. There are no tooling costs associated with either the one and/or two-piece standard design.

TYPICAL PROPERTIES AND PERFORMANCE ALL PART NUMBERS

PROPERTY TEST METHOD RESULT

Features and Benefits:

Co-planarity LTWI-1119 <0,10 mmSolderabilityANSI/JSTD-002>99%SolderabilityMIL-STD-202 Method 208>99%Surface mount solderabilityANSI/EIA 638PassesAppearanceLTIES-125Passes •Available in both one-piece and two-piece designs•One-piece designs offer economicalshielding protection•No tooling costs associated withone- or two-piece standard designs
Adhesion ASTM B-571 Passes 3Axis mechanical shock LTES-461 Passes

STANDARD ONE-PIECE BOARD LEVEL SHIELDS

SHIELD PARTNUMBER SURFACE AREA MAX.OVERALL DIMENSION MAX HEIGHT CARRIER TAPE WIDTH CARRIERTAPE PITCH PARTSPER REEL WEIGHT
in(mm) in (mm) in (mm) mm mm grams BMI-S-1010.253
2 (163,10
2 )0.538 x 0.476 (13,66 x 12,10)0.100 (2,54)24 2010000.4BMI-S-1020.402
2 (259,21
2 )0.650 x 0.650 (16,50 x 16,50)0.142 (3,60)32 24 7000.7BMI-S-1031.033
2 (666,16
2 )1.032 x 1.032 (26,21 x 26,21)0.200 (5,08)44 323001.6BMI-S-1041.548
2 (998,56
2 )1.260 x 1.260 (32,00 x 32,00)0.236 (6,00)44 36 2252.4BMI-S-1051.461
2 (942,50
2 )1.500 x 1.000 (38,10 x 25,40)0.236 (6,00)56 32 2502.4BMI-S-1061.879
2 (1212,39
2 )1.450 x 1.326 (36,83 x 33,68)0.200 (6,00)56 40 3002.5BMI-S-1072.997
2 (1933,36
2 )1.747 x 1.747 (44,37 x 44,37)0.384 (9,75)56 56 1206.5
For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.
