FINGERSTOCK

MOUNTINGMETHODS

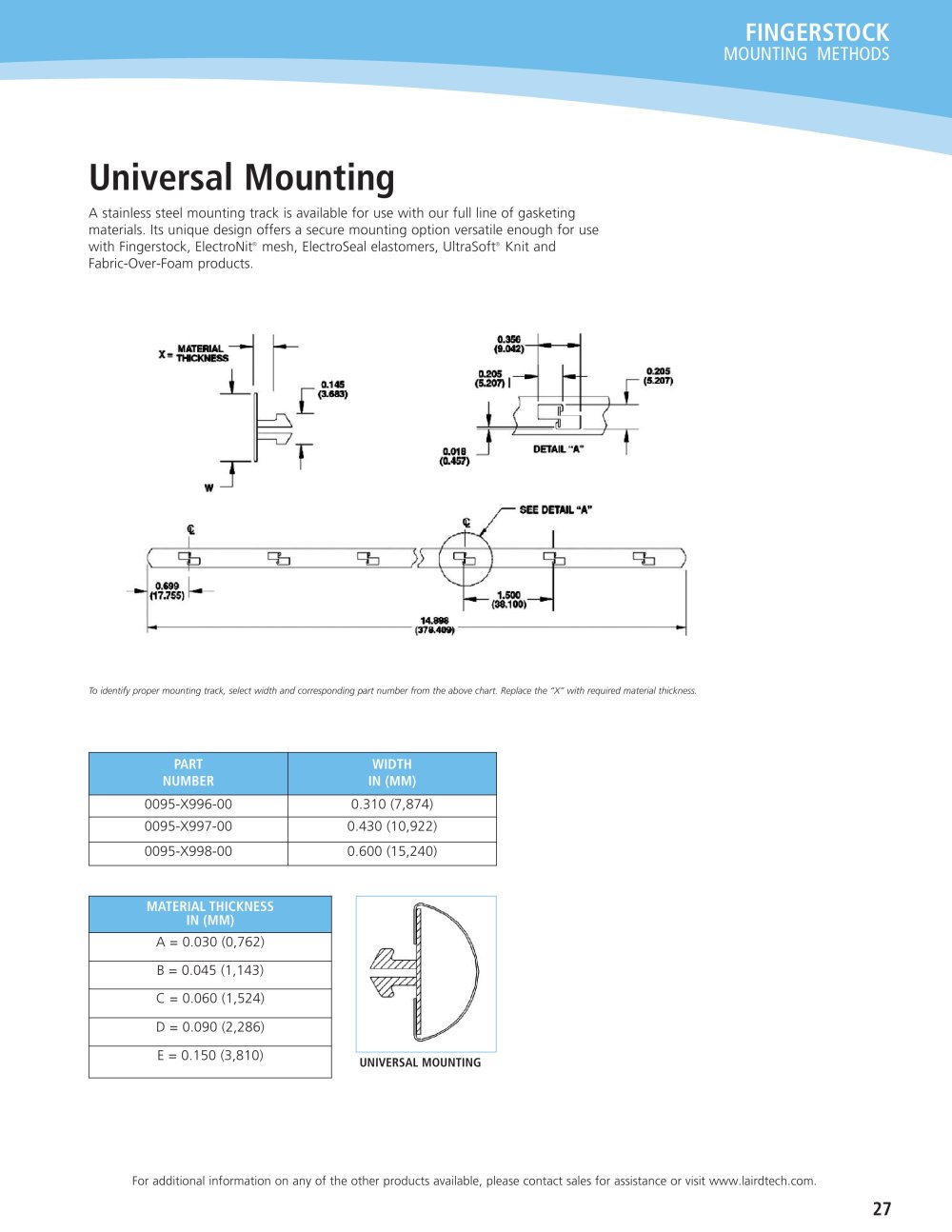

EMI ESSENTIALS - 12624 Universal Mounting

A stainless steel mounting track is available for use with our full line of gasketingmaterials. Its unique design offers a secure mounting option versatile enough for use with Fingerstock, ElectroNit
® mesh, ElectroSeal elastomers, UltraSoft
® Knit and Fabric-Over-Foam products.
To identify proper mounting track, select width and corresponding part number from the above chart. Replace the “X” with required material thickness. PART NUMBER WIDTHIN (MM) 0095-X996-00 0.310 (7,874) 0095-X997-00 0.430 (10,922) 0095-X998-00 0.600 (15,240) MATERIAL THICKNESSIN (MM) A = 0.030 (0,762) B = 0.045 (1,143) C = 0.060 (1,524) D = 0.090 (2,286) E = 0.150 (3,810)
UNIVERSAL MOUNTING For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.

27
