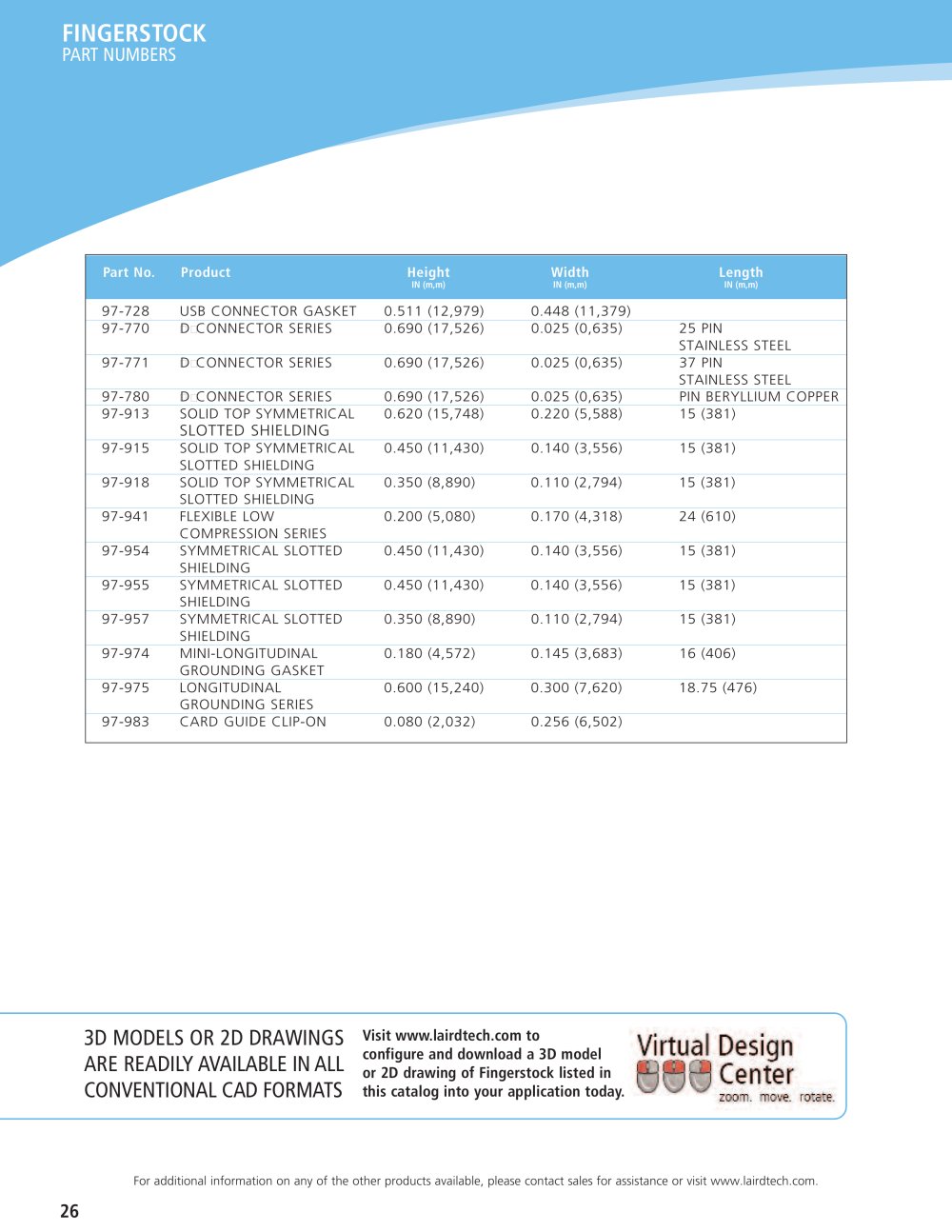

FINGERSTOCK

PART NUMBERS

Part No.ProductHeightWidthLength
IN (m,m)IN (m,m)IN (m,m) 97-728USB CONNECTOR GASKET0.511 (12,979)0.448 (11,379)97-770 D CONNECTOR SERIES0.690 (17,526)0.025 (0,635)25 PIN STAINLESS STEEL97-771 D CONNECTOR SERIES0.690 (17,526)0.025 (0,635)37 PIN STAINLESS STEEL 97-780 D CONNECTOR SERIES0.690 (17,526)0.025 (0,635)PIN BERYLLIUM COPPER 97-913SOLID TOP SYMMETRICAL 0.620 (15,748)0.220 (5,588)15 (381)

SLOTTED SHIELDING

97-915SOLID TOP SYMMETRICAL 0.450 (11,430)0.140 (3,556)15 (381) SLOTTED SHIELDING97-918SOLID TOP SYMMETRICAL 0.350 (8,890)0.110 (2,794)15 (381) SLOTTED SHIELDING97-941FLEXIBLE LOW 0.200 (5,080)0.170 (4,318)24 (610) COMPRESSION SERIES97-954SYMMETRICAL SLOTTED 0.450 (11,430)0.140 (3,556)15 (381) SHIELDING97-955SYMMETRICAL SLOTTED 0.450 (11,430)0.140 (3,556)15 (381) SHIELDING97-957SYMMETRICAL SLOTTED 0.350 (8,890)0.110 (2,794)15 (381) SHIELDING97-974MINI-LONGITUDINAL 0.180 (4,572)0.145 (3,683)16 (406) GROUNDING GASKET97-975LONGITUDINAL 0.600 (15,240)0.300 (7,620)18.75 (476) GROUNDING SERIES97-983CARD GUIDE CLIP-ON0.080 (2,032)0.256 (6,502)

3D MODELS OR 2D DRAWINGSARE READILY AVAILABLE IN ALLCONVENTIONAL CAD FORMATS

Visit www.lairdtech.com to configure and download a 3D model or 2D drawing of Fingerstock listed in this catalog into your application today.

For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.

26
