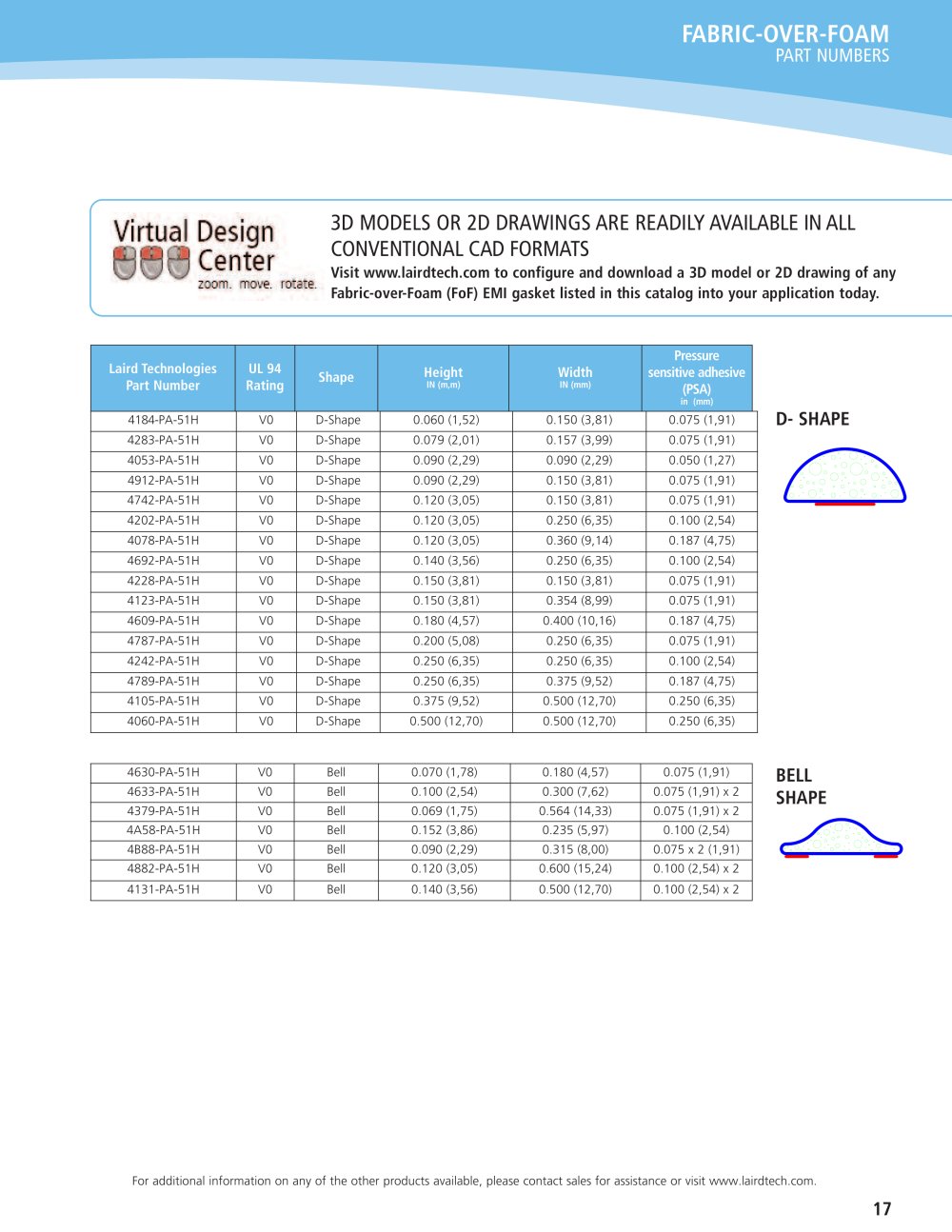

FABRIC-OVER-FOAM

PART NUMBERS

3D MODELS OR 2D DRAWINGS ARE READILY AVAILABLE IN ALLCONVENTIONAL CAD FORMATS

Visit www.lairdtech.com to configure and download a 3D model or 2D drawing of anyFabric-over-Foam (FoF) EMI gasket listed in this catalog into your application today.

Pressure sensitive adhesive(PSA) Laird Technologies Part Number UL94Rating Shape Height Width

IN (m,m) IN (mm) in (mm) 4184-PA-51H V0 D-Shape 0.060 (1,52) 0.150 (3,81) 0.075 (1,91)

D- SHAPE BELLSHAPE

4283-PA-51H V0 D-Shape 0.079 (2,01) 0.157 (3,99) 0.075 (1,91) 4053-PA-51H V0 D-Shape 0.090 (2,29) 0.090 (2,29) 0.050 (1,27) 4912-PA-51H V0 D-Shape 0.090 (2,29) 0.150 (3,81) 0.075 (1,91) 4742-PA-51H V0 D-Shape 0.120 (3,05) 0.150 (3,81) 0.075 (1,91) 4202-PA-51H V0 D-Shape 0.120 (3,05) 0.250 (6,35) 0.100 (2,54) 4078-PA-51H V0 D-Shape 0.120 (3,05) 0.360 (9,14) 0.187 (4,75) 4692-PA-51H V0 D-Shape 0.140 (3,56) 0.250 (6,35) 0.100 (2,54) 4228-PA-51H V0 D-Shape 0.150 (3,81) 0.150 (3,81) 0.075 (1,91) 4123-PA-51H V0 D-Shape 0.150 (3,81) 0.354 (8,99) 0.075 (1,91) 4609-PA-51H V0 D-Shape 0.180 (4,57) 0.400 (10,16) 0.187 (4,75) 4787-PA-51H V0 D-Shape 0.200 (5,08) 0.250 (6,35) 0.075 (1,91) 4242-PA-51H V0 D-Shape 0.250 (6,35) 0.250 (6,35) 0.100 (2,54) 4789-PA-51H V0 D-Shape 0.250 (6,35) 0.375 (9,52) 0.187 (4,75) 4105-PA-51H V0 D-Shape 0.375 (9,52) 0.500 (12,70) 0.250 (6,35) 4060-PA-51H V0 D-Shape 0.500 (12,70) 0.500 (12,70) 0.250 (6,35) 4630-PA-51H V0 Bell 0.070 (1,78) 0.180 (4,57) 0.075 (1,91) 4633-PA-51H V0 Bell 0.100 (2,54) 0.300 (7,62) 0.075 (1,91) x 2 4379-PA-51H V0 Bell 0.069 (1,75) 0.564 (14,33) 0.075 (1,91) x 2 4A58-PA-51H V0 Bell 0.152 (3,86) 0.235 (5,97) 0.100 (2,54) 4B88-PA-51H V0 Bell 0.090 (2,29) 0.315 (8,00) 0.075 x 2 (1,91) 4882-PA-51H V0 Bell 0.120 (3,05) 0.600 (15,24) 0.100 (2,54) x 2 4131-PA-51H V0 Bell 0.140 (3,56) 0.500 (12,70) 0.100 (2,54) x 2 For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.

17
