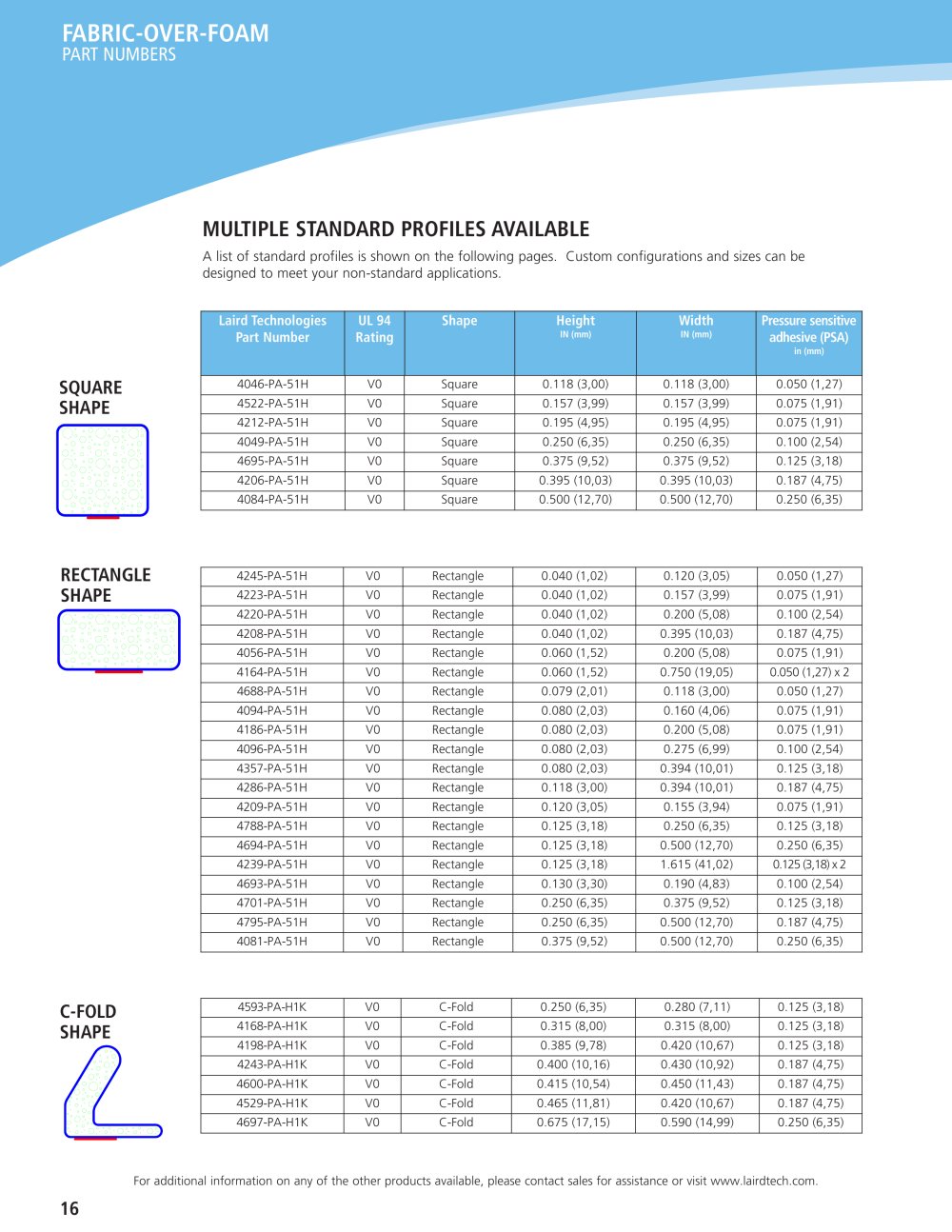

FABRIC-OVER-FOAM

PART NUMBERS

MULTIPLE STANDARD PROFILES AVAILABLE

A list of standard profiles is shown on the following pages. Custom configurations and sizes can bedesigned to meet your non-standard applications. Laird Technologies Part Number UL94Rating Shape Height Width Pressure sensitiveadhesive (PSA)

IN (mm) IN (mm) in (mm)

SQUARESHAPE

4046-PA-51H V0 Square 0.118 (3,00) 0.118 (3,00) 0.050 (1,27) 4522-PA-51H V0 Square 0.157 (3,99) 0.157 (3,99) 0.075 (1,91) 4212-PA-51H V0 Square 0.195 (4,95) 0.195 (4,95) 0.075 (1,91) 4049-PA-51H V0 Square 0.250 (6,35) 0.250 (6,35) 0.100 (2,54) 4695-PA-51H V0 Square 0.375 (9,52) 0.375 (9,52) 0.125 (3,18) 4206-PA-51H V0 Square 0.395 (10,03) 0.395 (10,03) 0.187 (4,75) 4084-PA-51H V0 Square 0.500 (12,70) 0.500 (12,70) 0.250 (6,35)

RECTANGLESHAPE

4245-PA-51H V0 Rectangle 0.040 (1,02) 0.120 (3,05) 0.050 (1,27) 4223-PA-51H V0 Rectangle 0.040 (1,02) 0.157 (3,99) 0.075 (1,91) 4220-PA-51H V0 Rectangle 0.040 (1,02) 0.200 (5,08) 0.100 (2,54) 4208-PA-51H V0 Rectangle 0.040 (1,02) 0.395 (10,03) 0.187 (4,75) 4056-PA-51H V0 Rectangle 0.060 (1,52) 0.200 (5,08) 0.075 (1,91) 4164-PA-51H V0 Rectangle 0.060 (1,52) 0.750 (19,05) 0.050 (1,27) x 2 4688-PA-51H V0 Rectangle 0.079 (2,01) 0.118 (3,00) 0.050 (1,27) 4094-PA-51H V0 Rectangle 0.080 (2,03) 0.160 (4,06) 0.075 (1,91) 4186-PA-51H V0 Rectangle 0.080 (2,03) 0.200 (5,08) 0.075 (1,91) 4096-PA-51H V0 Rectangle 0.080 (2,03) 0.275 (6,99) 0.100 (2,54) 4357-PA-51H V0 Rectangle 0.080 (2,03) 0.394 (10,01) 0.125 (3,18) 4286-PA-51H V0 Rectangle 0.118 (3,00) 0.394 (10,01) 0.187 (4,75) 4209-PA-51H V0 Rectangle 0.120 (3,05) 0.155 (3,94) 0.075 (1,91) 4788-PA-51H V0 Rectangle 0.125 (3,18) 0.250 (6,35) 0.125 (3,18) 4694-PA-51H V0 Rectangle 0.125 (3,18) 0.500 (12,70) 0.250 (6,35) 4239-PA-51H V0 Rectangle 0.125 (3,18) 1.615 (41,02) 0.125 (3,18) x 2 4693-PA-51H V0 Rectangle 0.130 (3,30) 0.190 (4,83) 0.100 (2,54) 4701-PA-51H V0 Rectangle 0.250 (6,35) 0.375 (9,52) 0.125 (3,18) 4795-PA-51H V0 Rectangle 0.250 (6,35) 0.500 (12,70) 0.187 (4,75) 4081-PA-51H V0 Rectangle 0.375 (9,52) 0.500 (12,70) 0.250 (6,35)

C-FOLDSHAPE

4593-PA-H1K V0 C-Fold 0.250 (6,35) 0.280 (7,11) 0.125 (3,18) 4168-PA-H1K V0 C-Fold 0.315 (8,00) 0.315 (8,00) 0.125 (3,18) 4198-PA-H1K V0 C-Fold 0.385 (9,78) 0.420 (10,67) 0.125 (3,18) 4243-PA-H1K V0 C-Fold 0.400 (10,16) 0.430 (10,92) 0.187 (4,75) 4600-PA-H1K V0 C-Fold 0.415 (10,54) 0.450 (11,43) 0.187 (4,75) 4529-PA-H1K V0 C-Fold 0.465 (11,81) 0.420 (10,67) 0.187 (4,75) 4697-PA-H1K V0 C-Fold 0.675 (17,15) 0.590 (14,99) 0.250 (6,35) For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.
