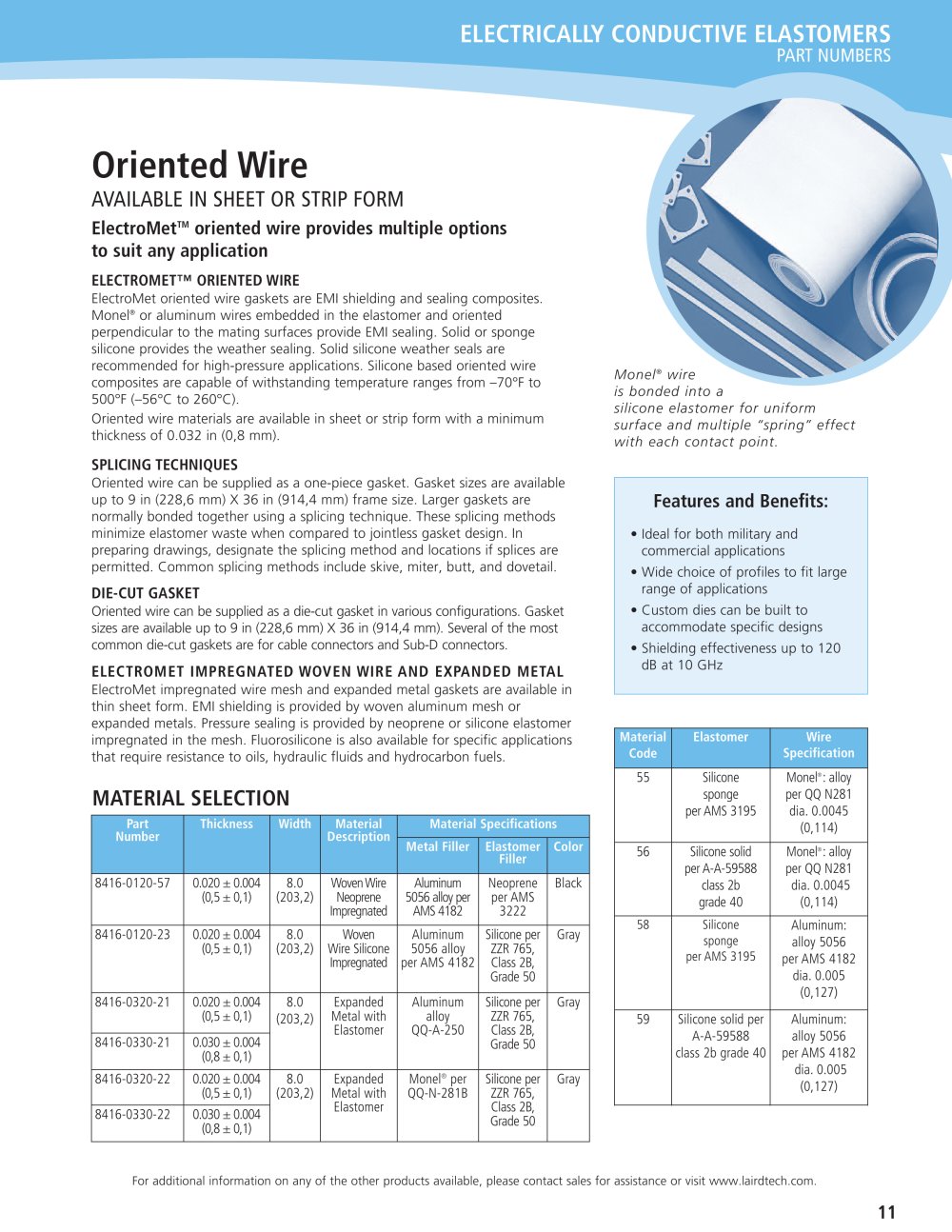

electrically conductive elastomers

PART NUMBERS

Oriented Wire

AVAILABLE IN SHEET OR STRIP FORM

ElectroMet^TM oriented wire provides multiple options to suit any application

ELECTROMET™ ORIENTED WIRE

ElectroMet oriented wire gaskets are EMI shielding and sealing composites. Monel® or aluminum wires embedded in the elastomer and oriented perpendicular to the mating surfaces provide EMI sealing. Solid or sponge silicone provides the weather sealing. Solid silicone weather seals are recommended for high-pressure applications. Silicone based oriented wire composites are capable of withstanding temperature ranges from -70°F to 500°F (-56°C to 260°C).

Oriented wire materials are available in sheet or strip form with a minimum thickness of 0.032 in (0,8 mm).

SPLICING TECHNIQUES

Oriented wire can be supplied as a one-piece gasket. Gasket sizes are available up to 9 in (228,6 mm) X 36 in (914,4 mm) frame size. Larger gaskets are normally bonded together using a splicing technique. These splicing methods minimize elastomer waste when compared to jointless gasket design. In preparing drawings, designate the splicing method and locations if splices are permitted. Common splicing methods include skive, miter, butt, and dovetail.

DIE-CUT GASKET

Oriented wire can be supplied as a die-cut gasket in various configurations. Gasket sizes are available up to 9 in (228,6 mm) X 36 in (914,4 mm). Several of the most common die-cut gaskets are for cable connectors and Sub-D connectors.

ELECTROMET IMPREGNATED WOVEN WIRE AND EXPANDED METAL

ElectroMet impregnated wire mesh and expanded metal gaskets are available in thin sheet form. EMI shielding is provided by woven aluminum mesh or expanded metals. Pressure sealing is provided by neoprene or silicone elastomer impregnated in the mesh. Fluorosilicone is also available for specific applications that require resistance to oils, hydraulic fluids and hydrocarbon fuels.

MATERIAL SELECTION

Monel⁹ wire is bonded into a silicone elastomer for uniform surface and multiple "spring" effect with each contact point.

Features and Benefits:

• Ideal for both military and commercial applications

• Wide choice of profiles to fit large range of applications

• Custom dies can be built to accommodate specific designs

• Shielding effectiveness up to 120 dB at 10 GHz

astome


55	Silicone	Monel®: alloy
	sponge	per QQ N281
	per AMS 3195	dia. 0.0045
		(0,114)
56	Silicone solid	Monel®: alloy
	per A-A-59588	per QQ N281
	class 2b	dia. 0.0045
	grade 40	(0,114)
58	Silicone	Aluminum:
	sponge	alloy 5056
	per AMS 3195	per AMS 4182
		dia. 0.005
		(0,127)
59	Silicone solid per	Aluminum:
	A-A-59588	alloy 5056
	class 2b grade 40	per AMS 4182
		dia. 0.005
		(0,127)


A,	Thickness	Width	Material Description	Material Specifications
A,			Material Description	Metal Filler	Elastomer	Color
8416-0120-57	0.020 ± 0.004 (0,5 ± 0,1)	8.0 (203,2)	Woven Wire Neoprene Impregnated	Aluminum 5056 alloy per AMS 4182	Neoprene per AMS 3222	Black
8416-0120-23	0.020 ± 0.004 (0,5 ± 0,1)	8.0 (203,2)	Woven Wire Silicone Impregnated	Aluminum 5056 alloy per AMS 4182	Silicone per ZZR 765, Class 2B, Grade 50	Gray
8416-0320-21	0.020 ± 0.004 (0,5 ± 0,1)	8.0 (203,2)	Expanded Metal with Elastomer	Aluminum alloy QQ-A-250	Silicone per ZZR 765, Class 2B, Grade 50	Gray
8416-0330-21	0.030 ± 0.004 (0,8 ± 0,1)		Expanded Metal with Elastomer	Aluminum alloy QQ-A-250	Silicone per ZZR 765, Class 2B, Grade 50
8416-0320-22	0.020 ± 0.004 (0,5 ± 0,1)	8.0 (203,2)	Expanded Metal with Elastomer	Monel® per QQ-N-281B	Silicone per ZZR 765, Class 2B, Grade 50	Gray
8416-0330-22	0.030 ± 0.004 (0,8 ± 0,1)		Expanded Metal with Elastomer		Silicone per ZZR 765, Class 2B, Grade 50

For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.
