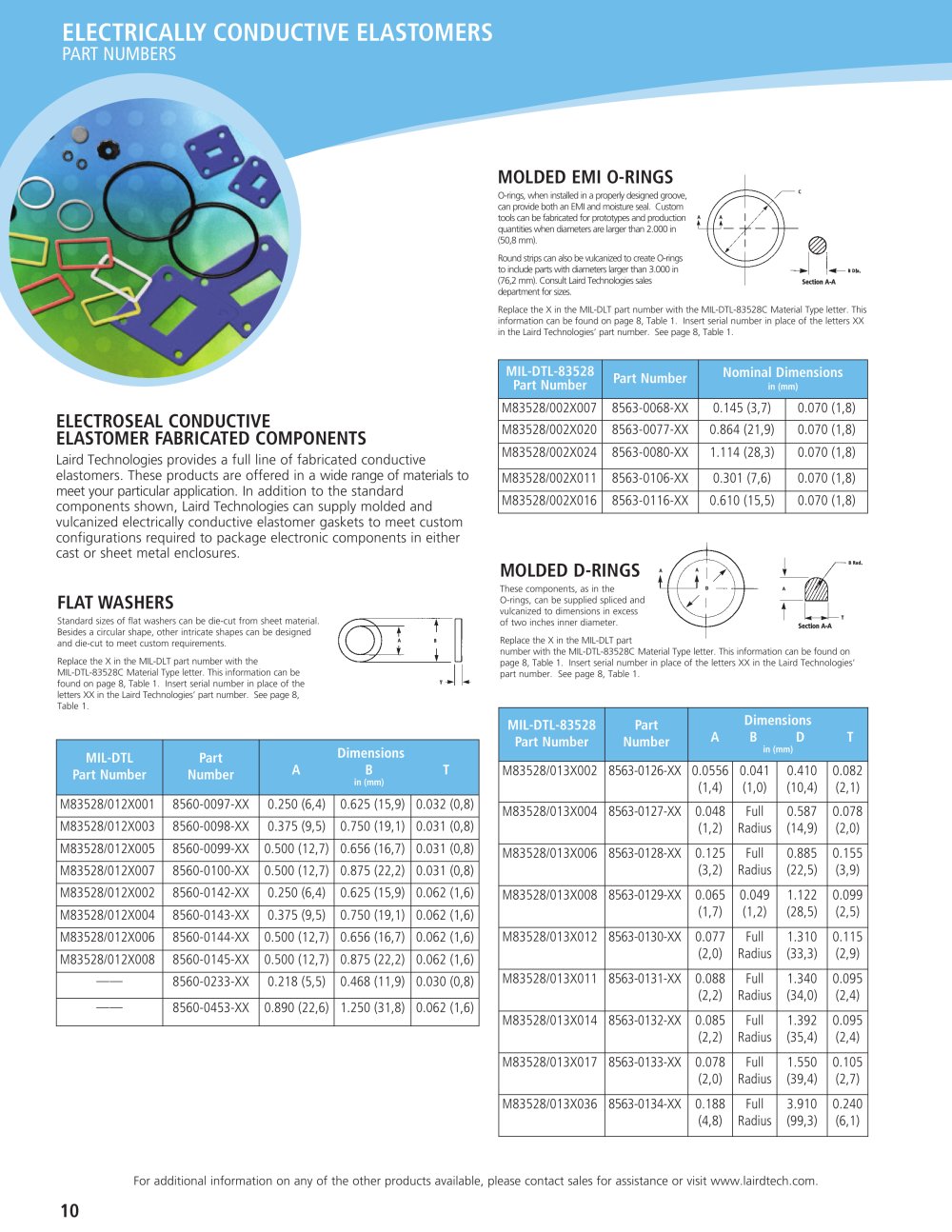

electrically conductive elastomers

PART NUMBERS

molded emi o-rings

O-rings, when installed in a properly designed groove, can provide both an EMI and moisture seal. Custom tools can be fabricated for prototypes and production quantities when diameters are larger than 2.000 in (50,8 mm).

Round strips can also be vulcanized to create O-rings to include parts with diameters larger than 3.000 in (76,2 mm). Consult Laird Technologies sales department for sizes.

Replace the X in the MIL-DLT part number with the MIL-DTL-83528C Material Type letter. This information can be found on page 8, Table 1. Insert serial number in place of the letters XX in the Laird Technologies' part number. See page 8, Table 1.

electroseal conductive elastomer fabricated components

Laird Technologies provides a full line of fabricated conductive elastomers. These products are offered in a wide range of materials to meet your particular application. In addition to the standard components shown, Laird Technologies can supply molded and vulcanized electrically conductive elastomer gaskets to meet custom configurations required to package electronic components in either cast or sheet metal enclosures.



M83528/002X007	8563-0068-XX	0.145 (3,7)	0.070 (1,8)
M83528/002X020	8563-0077-XX	0.864 (21,9)	0.070 (1,8)
M83528/002X024	8563-0080-XX	1.114 (28,3)	0.070 (1,8)
M83528/002X011	8563-0106-XX	0.301 (7,6)	0.070 (1,8)
M83528/002X016	8563-0116-XX	0.610 (15,5)	0.070 (1,8)

flat washers

molded d-rings

These components, as in the O-rings, can be supplied spliced and vulcanized to dimensions in excess of two inches inner diameter.

Standard sizes of flat washers can be die-cut from sheet material. Besides a circular shape, other intricate shapes can be designed and die-cut to meet custom requirements.

Table 1.


MIL-DTL Part Number	Part Number	Dimensions ^A in «Mm) ^T
M83528/012X001	8560-0097-XX	0.250 (6,4)	0.625 (15,9)	0.032 (0,8)
M83528/012X003	8560-0098-XX	0.375 (9,5)	0.750 (19,1)	0.031 (0,8)
M83528/012X005	8560-0099-XX	0.500 (12,7)	0.656 (16,7)	0.031 (0,8)
M83528/012X007	8560-0100-XX	0.500 (12,7)	0.875 (22,2)	0.031 (0,8)
M83528/012X002	8560-0142-XX	0.250 (6,4)	0.625 (15,9)	0.062 (1,6)
M83528/012X004	8560-0143-XX	0.375 (9,5)	0.750 (19,1)	0.062 (1,6)
M83528/012X006	8560-0144-XX	0.500 (12,7)	0.656 (16,7)	0.062 (1,6)
M83528/012X008	8560-0145-XX	0.500 (12,7)	0.875 (22,2)	0.062 (1,6)
--	8560-0233-XX	0.218 (5,5)	0.468 (11,9)	0.030 (0,8)
--	8560-0453-XX	0.890 (22,6)	1.250 (31,8)	0.062 (1,6)

Part

HI-83528 Number

Pa Number


M83528/013X002	8563-0126-XX	0.0556 (1,4)	0.041 (i,0)	0.410 (10,4)	0.082 (2,1)
M83528/013X004	8563-0127-XX	0.048 (1,2)	Full Radius	0.587 (14,9)	0.078 (2,0)
M83528/013X006	8563-0128-XX	0.125 (3,2)	Full Radius	0.885 (22,5)	0.155 (3,9)
M83528/013X008	8563-0129-XX	0.065 (1,7)	0.049 (1,2)	1.122 (28,5)	0.099 (2,5)
M83528/013X012	8563-0130-XX	0.077 (2,0)	Full Radius	1.310 (33,3)	0.115 (2,9)
M83528/013X011	8563-0131-XX	0.088 (2,2)	Full Radius	1.340 (34,0)	0.095 (2,4)
M83528/013X014	8563-0132-XX	0.085 (2,2)	Full Radius	1.392 (35,4)	0.095 (2,4)
M83528/013X017	8563-0133-XX	0.078 (2,0)	Full Radius	1.550 (39,4)	0.105 (2,7)
M83528/013X036	8563-0134-XX	0.188 (4,8)	Full Radius	3.910 (99,3)	0.240 (6,1)

For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.
