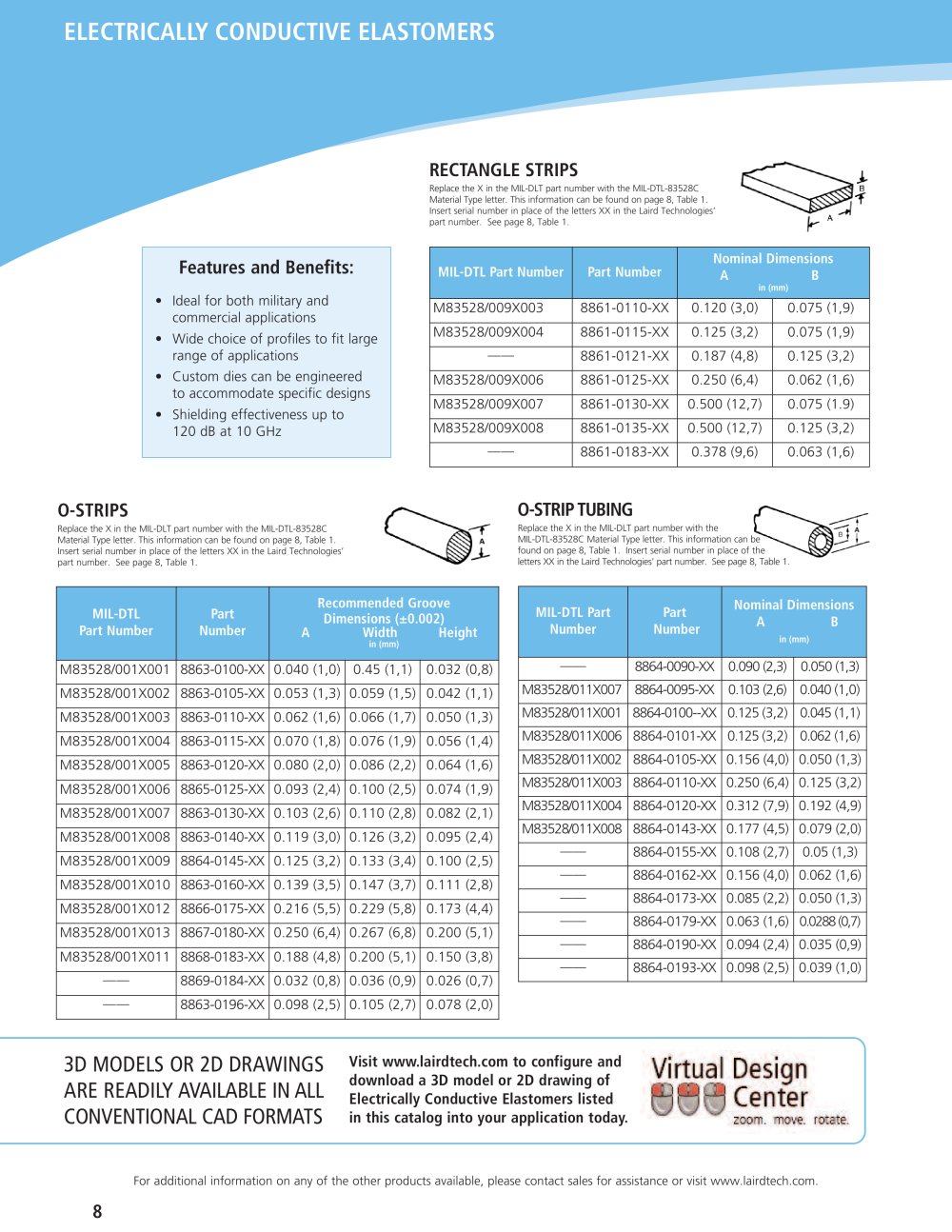

RECTANGLE STRIPS

Replace the X in the MIL-DLT part number with the MIL-DTL-83528C Material Type letter. This information can be found on page 8, Table 1. Insert serial number in place of the letters XX in the Laird Technologies' part number. See page 8, Table 1.

• Ideal for both military and commercial applications

• Wide choice of profiles to fit large range of applications

• Custom dies can be engineered to accommodate specific designs

• Shielding effectiveness up to 120 dB at 10 GHz



M83528/009X003	8861-0110-XX	0.120 (3,0)	0.075 (1,9)
M83528/009X004	8861-0115-XX	0.125 (3,2)	0.075 (1,9)
--	8861-0121-XX	0.187 (4,8)	0.125 (3,2)
M83528/009X006	8861-0125-XX	0.250 (6,4)	0.062 (1,6)
M83528/009X007	8861-0130-XX	0.500 (12,7)	0.075 (1.9)
M83528/009X008	8861-0135-XX	0.500 (12,7)	0.125 (3,2)
--	8861-0183-XX	0.378 (9,6)	0.063 (1,6)

O-STRIPS

O-STRIP TUBING


MIL-DTL
Part Number	Number

M83528/001X001	8863-0100-XX	0.040 (1,0)	0.45 (1,1)	0.032 (0,8)
M83528/001X002	8863-0105-XX	0.053 (1,3)	0.059 (1,5)	0.042 (1,1)
M83528/001X003	8863-0110-XX	0.062 (1,6)	0.066 (1,7)	0.050 (1,3)
M83528/001X004	8863-0115-XX	0.070 (1,8)	0.076 (1,9)	0.056 (1,4)
M83528/001X005	8863-0120-XX	0.080 (2,0)	0.086 (2,2)	0.064 (1,6)
M83528/001X006	8865-0125-XX	0.093 (2,4)	0.100 (2,5)	0.074 (1,9)
M83528/001X007	8863-0130-XX	0.103 (2,6)	0.110 (2,8)	0.082 (2,1)
M83528/001X008	8863-0140-XX	0.119 (3,0)	0.126 (3,2)	0.095 (2,4)
M83528/001X009	8864-0145-XX	0.125 (3,2)	0.133 (3,4)	0.100 (2,5)
M83528/001X010	8863-0160-XX	0.139 (3,5)	0.147 (3,7)	0.111 (2,8)
M83528/001X012	8866-0175-XX	0.216 (5,5)	0.229 (5,8)	0.173 (4,4)
M83528/001X013	8867-0180-XX	0.250 (6,4)	0.267 (6,8)	0.200 (5,1)
M83528/001X011	8868-0183-XX	0.188 (4,8)	0.200 (5,1)	0.150 (3,8)
--	8869-0184-XX	0.032 (0,8)	0.036 (0,9)	0.026 (0,7)
--	8863-0196-XX	0.098 (2,5)	0.105 (2,7)	0.078 (2,0)


MIL-DTL Part Number	Part Number	™^ens'^r
-	8864-0090-XX	0.090 (2,3)	0.050 (1,3)
M83528/011X007	8864-0095-XX	0.103 (2,6)	0.040 (1,0)
M83528/011X001	8864-0100--XX	0.125 (3,2)	0.045 (1,1)
M83528/011X006	8864-0101-XX	0.125 (3,2)	0.062 (1,6)
M83528/011X002	8864-0105-XX	0.156 (4,0)	0.050 (1,3)
M83528/011X003	8864-0110-XX	0.250 (6,4)	0.125 (3,2)
M83528/011X004	8864-0120-XX	0.312 (7,9)	0.192 (4,9)
M83528/011X008	8864-0143-XX	0.177 (4,5)	0.079 (2,0)
-	8864-0155-XX	0.108 (2,7)	0.05 (1,3)
-	8864-0162-XX	0.156 (4,0)	0.062 (1,6)
-	8864-0173-XX	0.085 (2,2)	0.050 (1,3)
-	8864-0179-XX	0.063 (1,6)	0.0288 (0,7)
-	8864-0190-XX	0.094 (2,4)	0.035 (0,9)
-	8864-0193-XX	0.098 (2,5)	0.039 (1,0)

3D MODELS OR 2D DRAWINGS ARE READILY AVAILABLE IN ALL CONVENTIONAL CAD FORMATS

Visit www.lairdtech.com to configure and download a 3D model or 2D drawing of Electrically Conductive Elastomers listed in this catalog into your application today.

Virtual Design

!■;!!■;::■■! Center

com- move, rotate.

For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.
