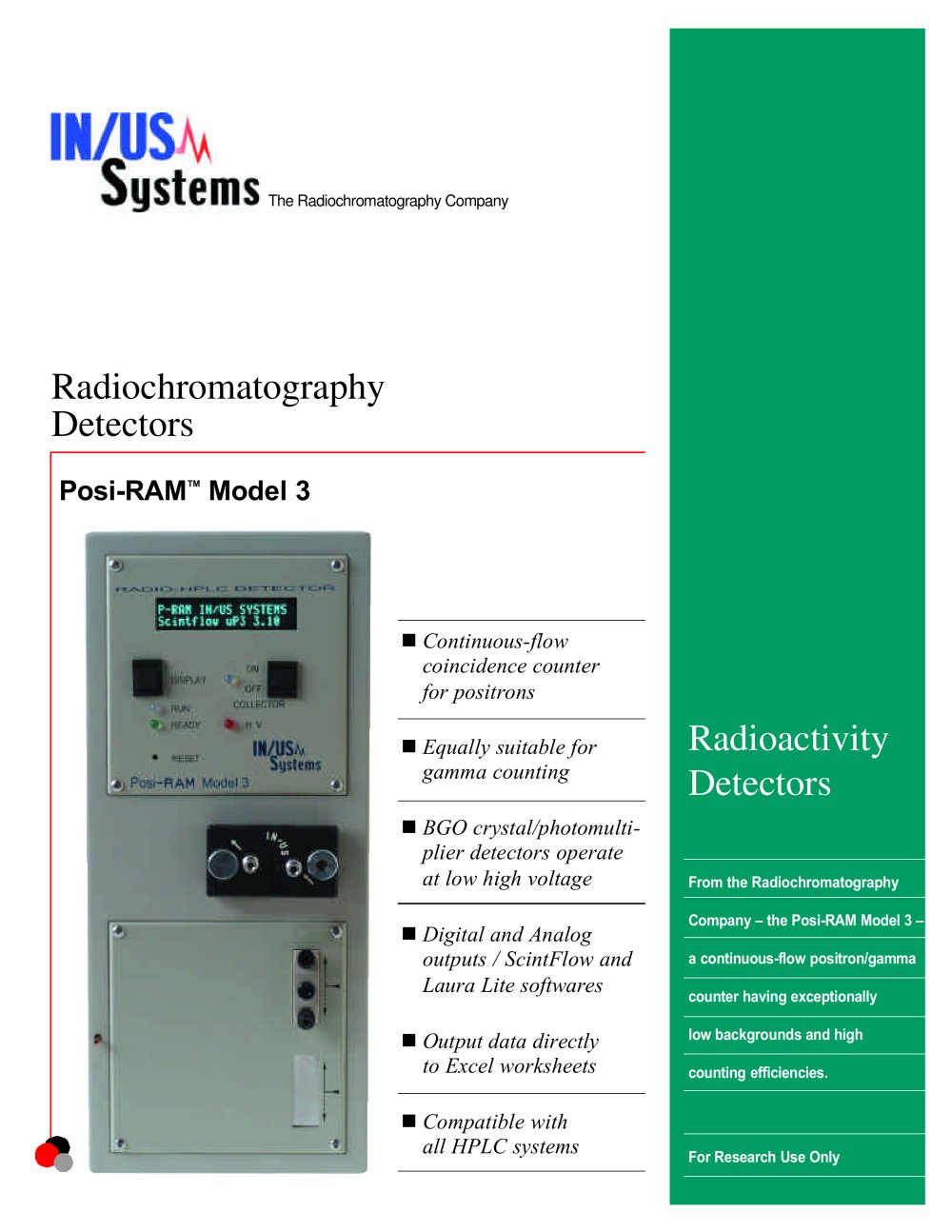

Radiochromatography Detectors Posi-RAMTM Model 3 The Radiochromatography Company n Continuous-flow coincidence counter for positrons n Equally suitable for gamma counting n BGO crystal/photomultiplier detectors operate at low high voltage n Digital and Analog outputs / ScintFlow and Laura Lite softwares n Output data directly to Excel worksheets n Compatible with all HPLC systems Radioactivity Detectors From the Radiochromatography Company – the Posi-RAM Model 3 – a continuous-flow positron/gamma counter having exceptionally low backgrounds and high counting efficiencies. For Research Use Only

Detector Two BGO (bismuth germanate / Bi4Ge3O12) crystal-photomultiplier assemblies separated by < 0.20" directly face one another, with the cell in between. Close spacing combined with small cell volume results in near-4p geometry and a high probability that each annihilation gamma will be incident on one of the crystals, thus assuring a coincidence count. The crystals are encapsulated in a thin aluminum shell to allow gamma-ray penetration while preventing light interactions between them, and also between the PMTs. The 1" x 1" crystals have an absorbtion efficiency of >90% for 511 KeV gammas....

The Posi-RAM includes all of the features expected of a research quality radiochromatography detector – two analog inputs and two analog outputs, remote Start and Stop, fraction-collector and auto-injector control, etc. In addition, at the cell exit a built-in 3-way valve responsive to count rate provides means for manual and semi-automatic peak collection. Digital Display The 20-column two-line alphanumeric display normally shows coincidences in one channel and singles in the other. Its most useful aspects are as an adjunct to manual fraction collection and also to verify that the count rate...

Background: < 20 cpm over the entire operating range CE Certified Physical: Vertical - 6" (15.3 cm) wide x 13.5" (34.3 cm) high x 13" (33 cm) deep Horizontal - 13.5" (34.3 cm) wide x 6" (15.3 cm) high x 13" (33 cm) deep Weight - 32 lbs (14.5 kg) Electrical: 110 / 220 volts 50 / 60 Hz 1 A (110 v) / 0.5 A (220 v) The Radiochromatography Company IN/US Systems, Inc. 1040 East Brandon Blvd. • Brandon, FL 33511-5509 Tel 813•626•6848 Toll-Free 800•875•INUS (4687) Fax 813•620•3708 E-mail: [email protected] World Wide Web http://www.inus.com Keypad Option The Posi-RAM is usually controlled by, and outputs...
