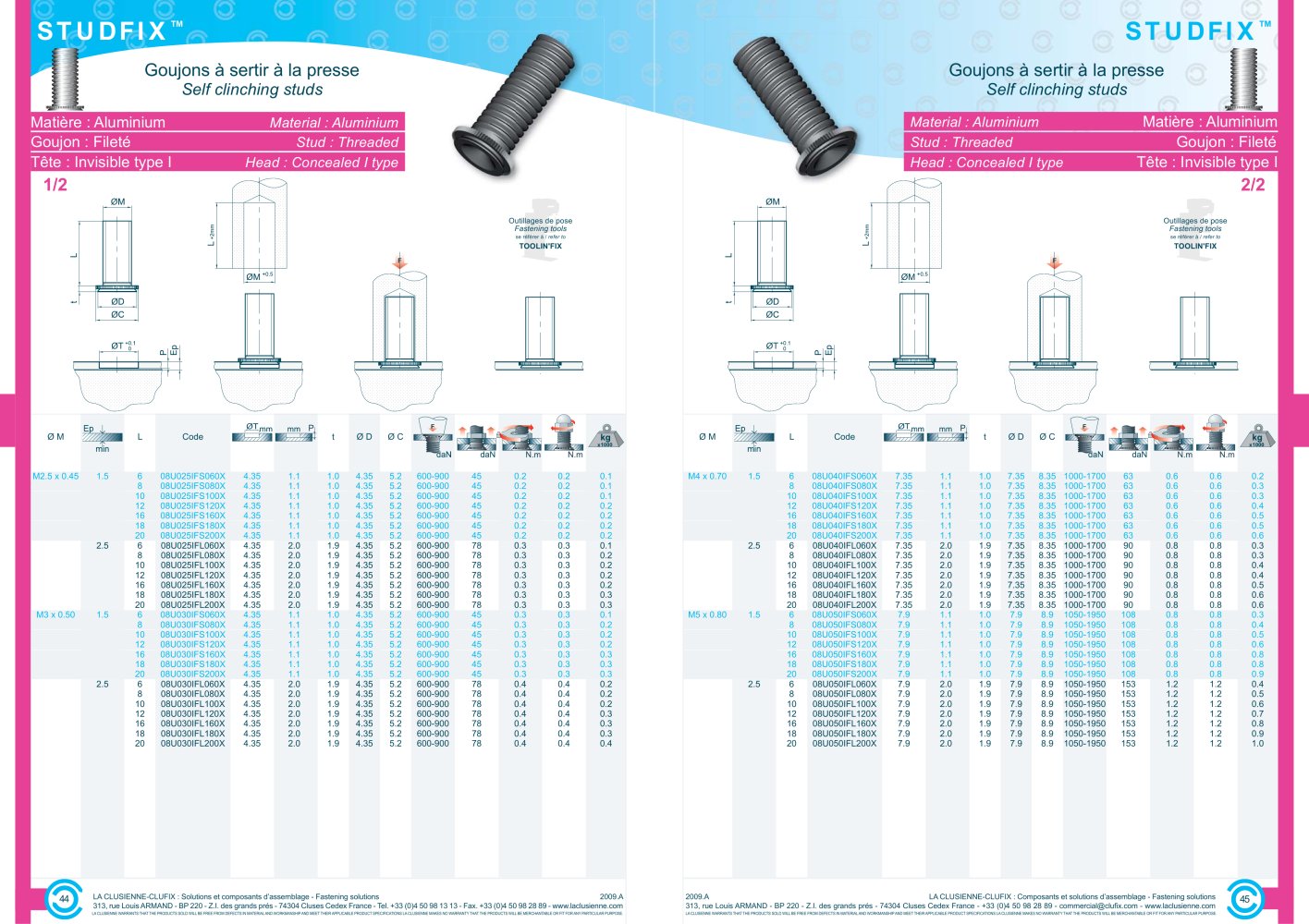

Goujons à sertir à la presse Self clinching studs STUDFIX™ Matière : Aluminium Material : Aluminium Goujon : Fileté Stud : Threaded 44 45 Tête : Invisible type I Head : Concealed I type Material : Aluminium Matière : Aluminium Stud : Threaded Goujon : Fileté Head : Concealed I type Tête : Invisible type I STUDFIX™ Goujons à sertir à la presse Self clinching studs 1/2 2/2 LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Ø M L Code t Ø D Ø C Ø M L Code t Ø D Ø C Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX M4 x 0.70 1.5 6 08U040IFS060X 7.35 1.1 1.0 7.35 8.35 1000-1700 63 0.6 0.6 0.2 8 08U040IFS080X 7.35 1.1 1.0 7.35 8.35 1000-1700 63 0.6 0.6 0.3 10 08U040IFS100X 7.35 1.1 1.0 7.35 8.35 1000-1700 63 0.6 0.6 0.3 12 08U040IFS120X 7.35 1.1 1.0 7.35 8.35 1000-1700 63 0.6 0.6 0.4 16 08U040IFS160X 7.35 1.1 1.0 7.35 8.35 1000-1700 63 0.6 0.6 0.5 18 08U040IFS180X 7.35 1.1 1.0 7.35 8.35 1000-1700 63 0.6 0.6 0.5 20 08U040IFS200X 7.35 1.1 1.0 7.35 8.35 1000-1700 63 0.6 0.6 0.6 2.5 6 08U040IFL060X 7.35 2.0 1.9 7.35 8.35 1000-1700 90 0.8 0.8 0.3 8 08U040IFL080X 7.35 2.0 1.9 7.35 8.35 1000-1700 90 0.8 0.8 0.3 10 08U040IFL100X 7.35 2.0 1.9 7.35 8.35 1000-1700 90 0.8 0.8 0.4 12 08U040IFL120X 7.35 2.0 1.9 7.35 8.35 1000-1700 90 0.8 0.8 0.4 16 08U040IFL160X 7.35 2.0 1.9 7.35 8.35 1000-1700 90 0.8 0.8 0.5 18 08U040IFL180X 7.35 2.0 1.9 7.35 8.35 1000-1700 90 0.8 0.8 0.6 20 08U040IFL200X 7.35 2.0 1.9 7.35 8.35 1000-1700 90 0.8 0.8 0.6 M5 x 0.80 1.5 6 08U050IFS060X 7.9 1.1 1.0 7.9 8.9 1050-1950 108 0.8 0.8 0.3 8 08U050IFS080X 7.9 1.1 1.0 7.9 8.9 1050-1950 108 0.8 0.8 0.4 10 08U050IFS100X 7.9 1.1 1.0 7.9 8.9 1050-1950 108 0.8 0.8 0.5 12 08U050IFS120X 7.9 1.1 1.0 7.9 8.9 1050-1950 108 0.8 0.8 0.6 16 08U050IFS160X 7.9 1.1 1.0 7.9 8.9 1050-1950 108 0.8 0.8 0.8 18 08U050IFS180X 7.9 1.1 1.0 7.9 8.9 1050-1950 108 0.8 0.8 0.8 20 08U050IFS200X 7.9 1.1 1.0 7.9 8.9 1050-1950 108 0.8 0.8 0.9 2.5 6 08U050IFL060X 7.9 2.0 1.9 7.9 8.9 1050-1950 153 1.2 1.2 0.4 8 08U050IFL080X 7.9 2.0 1.9 7.9 8.9 1050-1950 153 1.2 1.2 0.5 10 08U050IFL100X 7.9 2.0 1.9 7.9 8.9 1050-1950 153 1.2 1.2 0.6 12 08U050IFL120X 7.9 2.0 1.9 7.9 8.9 1050-1950 153 1.2 1.2 0.7 16 08U050IFL160X 7.9 2.0 1.9 7.9 8.9 1050-1950 153 1.2 1.2 0.8 18 08U050IFL180X 7.9 2.0 1.9 7.9 8.9 1050-1950 153 1.2 1.2 0.9 20 08U050IFL200X 7.9 2.0 1.9 7.9 8.9 1050-1950 153 1.2 1.2 1.0 M2.5 x 0.45 1.5 6 08U025IFS060X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.2 0.2 0.1 8 08U025IFS080X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.2 0.2 0.1 10 08U025IFS100X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.2 0.2 0.1 12 08U025IFS120X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.2 0.2 0.2 16 08U025IFS160X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.2 0.2 0.2 18 08U025IFS180X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.2 0.2 0.2 20 08U025IFS200X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.2 0.2 0.2 2.5 6 08U025IFL060X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.3 0.3 0.1 8 08U025IFL080X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.3 0.3 0.2 10 08U025IFL100X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.3 0.3 0.2 12 08U025IFL120X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.3 0.3 0.2 16 08U025IFL160X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.3 0.3 0.2 18 08U025IFL180X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.3 0.3 0.3 20 08U025IFL200X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.3 0.3 0.3 M3 x 0.50 1.5 6 08U030IFS060X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.3 0.3 0.1 8 08U030IFS080X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.3 0.3 0.2 10 08U030IFS100X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.3 0.3 0.2 12 08U030IFS120X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.3 0.3 0.2 16 08U030IFS160X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.3 0.3 0.3 18 08U030IFS180X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.3 0.3 0.3 20 08U030IFS200X 4.35 1.1 1.0 4.35 5.2 600-900 45 0.3 0.3 0.3 2.5 6 08U030IFL060X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.4 0.4 0.2 8 08U030IFL080X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.4 0.4 0.2 10 08U030IFL100X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.4 0.4 0.2 12 08U030IFL120X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.4 0.4 0.3 16 08U030IFL160X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.4 0.4 0.3 18 08U030IFL180X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.4 0.4 0.3 20 08U030IFL200X 4.35 2.0 1.9 4.35 5.2 600-900 78 0.4 0.4 0.4
