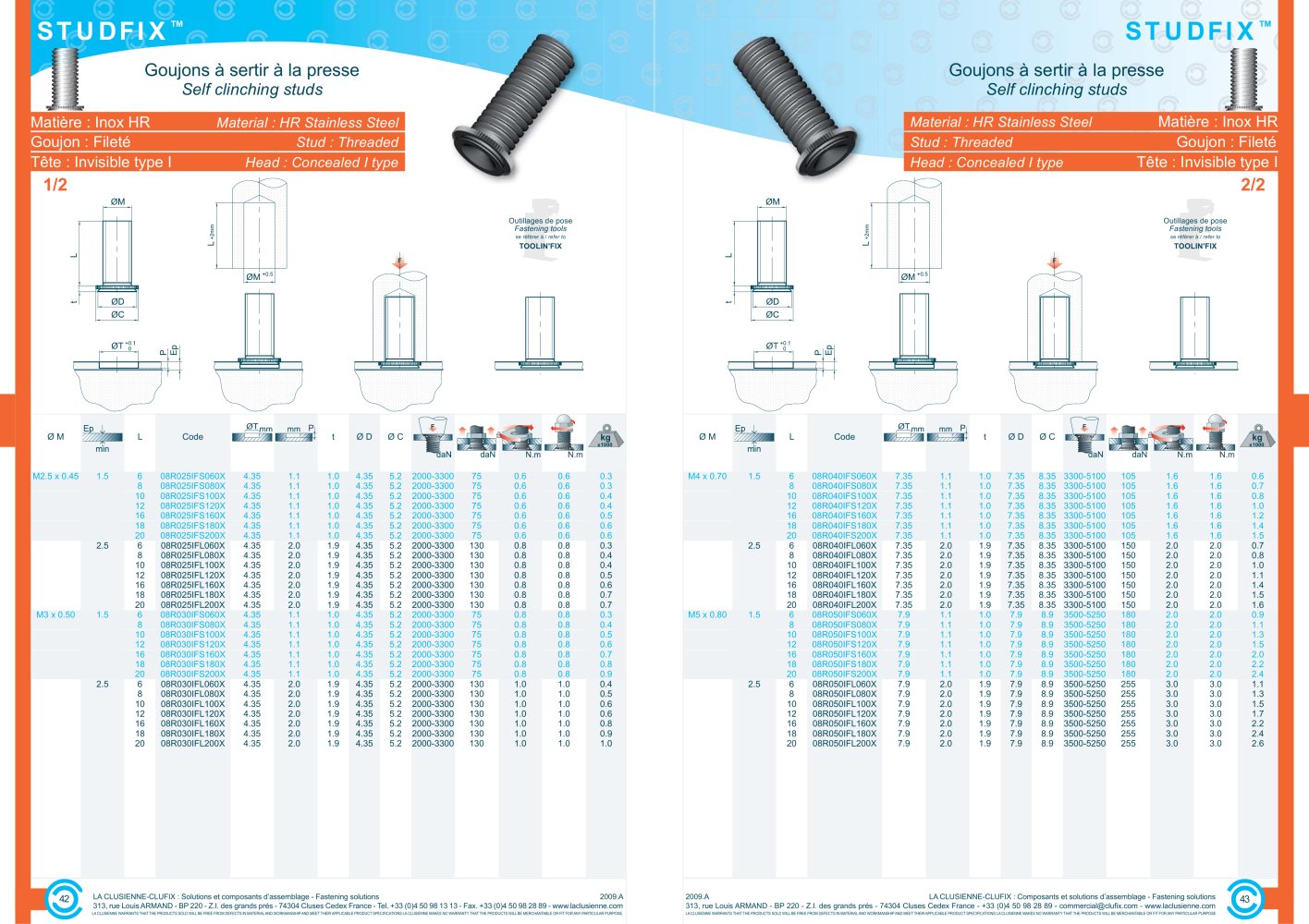

Goujons à sertir à la presse Self clinching studs STUDFIX™ Matière : Inox HR Material : HR Stainless Steel Goujon : Fileté Stud : Threaded 42 43 Tête : Invisible type I Head : Concealed I type Material : HR Stainless Steel Matière : Inox HR Stud : Threaded Goujon : Fileté Head : Concealed I type Tête : Invisible type I STUDFIX™ Goujons à sertir à la presse Self clinching studs 1/2 2/2 LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Ø M L Code t Ø D Ø C Ø M L Code t Ø D Ø C Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX M4 x 0.70 1.5 6 08R040IFS060X 7.35 1.1 1.0 7.35 8.35 3300-5100 105 1.6 1.6 0.6 8 08R040IFS080X 7.35 1.1 1.0 7.35 8.35 3300-5100 105 1.6 1.6 0.7 10 08R040IFS100X 7.35 1.1 1.0 7.35 8.35 3300-5100 105 1.6 1.6 0.8 12 08R040IFS120X 7.35 1.1 1.0 7.35 8.35 3300-5100 105 1.6 1.6 1.0 16 08R040IFS160X 7.35 1.1 1.0 7.35 8.35 3300-5100 105 1.6 1.6 1.2 18 08R040IFS180X 7.35 1.1 1.0 7.35 8.35 3300-5100 105 1.6 1.6 1.4 20 08R040IFS200X 7.35 1.1 1.0 7.35 8.35 3300-5100 105 1.6 1.6 1.5 2.5 6 08R040IFL060X 7.35 2.0 1.9 7.35 8.35 3300-5100 150 2.0 2.0 0.7 8 08R040IFL080X 7.35 2.0 1.9 7.35 8.35 3300-5100 150 2.0 2.0 0.8 10 08R040IFL100X 7.35 2.0 1.9 7.35 8.35 3300-5100 150 2.0 2.0 1.0 12 08R040IFL120X 7.35 2.0 1.9 7.35 8.35 3300-5100 150 2.0 2.0 1.1 16 08R040IFL160X 7.35 2.0 1.9 7.35 8.35 3300-5100 150 2.0 2.0 1.4 18 08R040IFL180X 7.35 2.0 1.9 7.35 8.35 3300-5100 150 2.0 2.0 1.5 20 08R040IFL200X 7.35 2.0 1.9 7.35 8.35 3300-5100 150 2.0 2.0 1.6 M5 x 0.80 1.5 6 08R050IFS060X 7.9 1.1 1.0 7.9 8.9 3500-5250 180 2.0 2.0 0.9 8 08R050IFS080X 7.9 1.1 1.0 7.9 8.9 3500-5250 180 2.0 2.0 1.1 10 08R050IFS100X 7.9 1.1 1.0 7.9 8.9 3500-5250 180 2.0 2.0 1.3 12 08R050IFS120X 7.9 1.1 1.0 7.9 8.9 3500-5250 180 2.0 2.0 1.5 16 08R050IFS160X 7.9 1.1 1.0 7.9 8.9 3500-5250 180 2.0 2.0 2.0 18 08R050IFS180X 7.9 1.1 1.0 7.9 8.9 3500-5250 180 2.0 2.0 2.2 20 08R050IFS200X 7.9 1.1 1.0 7.9 8.9 3500-5250 180 2.0 2.0 2.4 2.5 6 08R050IFL060X 7.9 2.0 1.9 7.9 8.9 3500-5250 255 3.0 3.0 1.1 8 08R050IFL080X 7.9 2.0 1.9 7.9 8.9 3500-5250 255 3.0 3.0 1.3 10 08R050IFL100X 7.9 2.0 1.9 7.9 8.9 3500-5250 255 3.0 3.0 1.5 12 08R050IFL120X 7.9 2.0 1.9 7.9 8.9 3500-5250 255 3.0 3.0 1.7 16 08R050IFL160X 7.9 2.0 1.9 7.9 8.9 3500-5250 255 3.0 3.0 2.2 18 08R050IFL180X 7.9 2.0 1.9 7.9 8.9 3500-5250 255 3.0 3.0 2.4 20 08R050IFL200X 7.9 2.0 1.9 7.9 8.9 3500-5250 255 3.0 3.0 2.6 M2.5 x 0.45 1.5 6 08R025IFS060X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.6 0.6 0.3 8 08R025IFS080X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.6 0.6 0.3 10 08R025IFS100X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.6 0.6 0.4 12 08R025IFS120X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.6 0.6 0.4 16 08R025IFS160X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.6 0.6 0.5 18 08R025IFS180X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.6 0.6 0.6 20 08R025IFS200X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.6 0.6 0.6 2.5 6 08R025IFL060X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 0.8 0.8 0.3 8 08R025IFL080X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 0.8 0.8 0.4 10 08R025IFL100X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 0.8 0.8 0.4 12 08R025IFL120X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 0.8 0.8 0.5 16 08R025IFL160X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 0.8 0.8 0.6 18 08R025IFL180X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 0.8 0.8 0.7 20 08R025IFL200X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 0.8 0.8 0.7 M3 x 0.50 1.5 6 08R030IFS060X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.8 0.8 0.3 8 08R030IFS080X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.8 0.8 0.4 10 08R030IFS100X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.8 0.8 0.5 12 08R030IFS120X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.8 0.8 0.6 16 08R030IFS160X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.8 0.8 0.7 18 08R030IFS180X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.8 0.8 0.8 20 08R030IFS200X 4.35 1.1 1.0 4.35 5.2 2000-3300 75 0.8 0.8 0.9 2.5 6 08R030IFL060X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 1.0 1.0 0.4 8 08R030IFL080X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 1.0 1.0 0.5 10 08R030IFL100X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 1.0 1.0 0.6 12 08R030IFL120X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 1.0 1.0 0.6 16 08R030IFL160X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 1.0 1.0 0.8 18 08R030IFL180X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 1.0 1.0 0.9 20 08R030IFL200X 4.35 2.0 1.9 4.35 5.2 2000-3300 130 1.0 1.0 1.0
