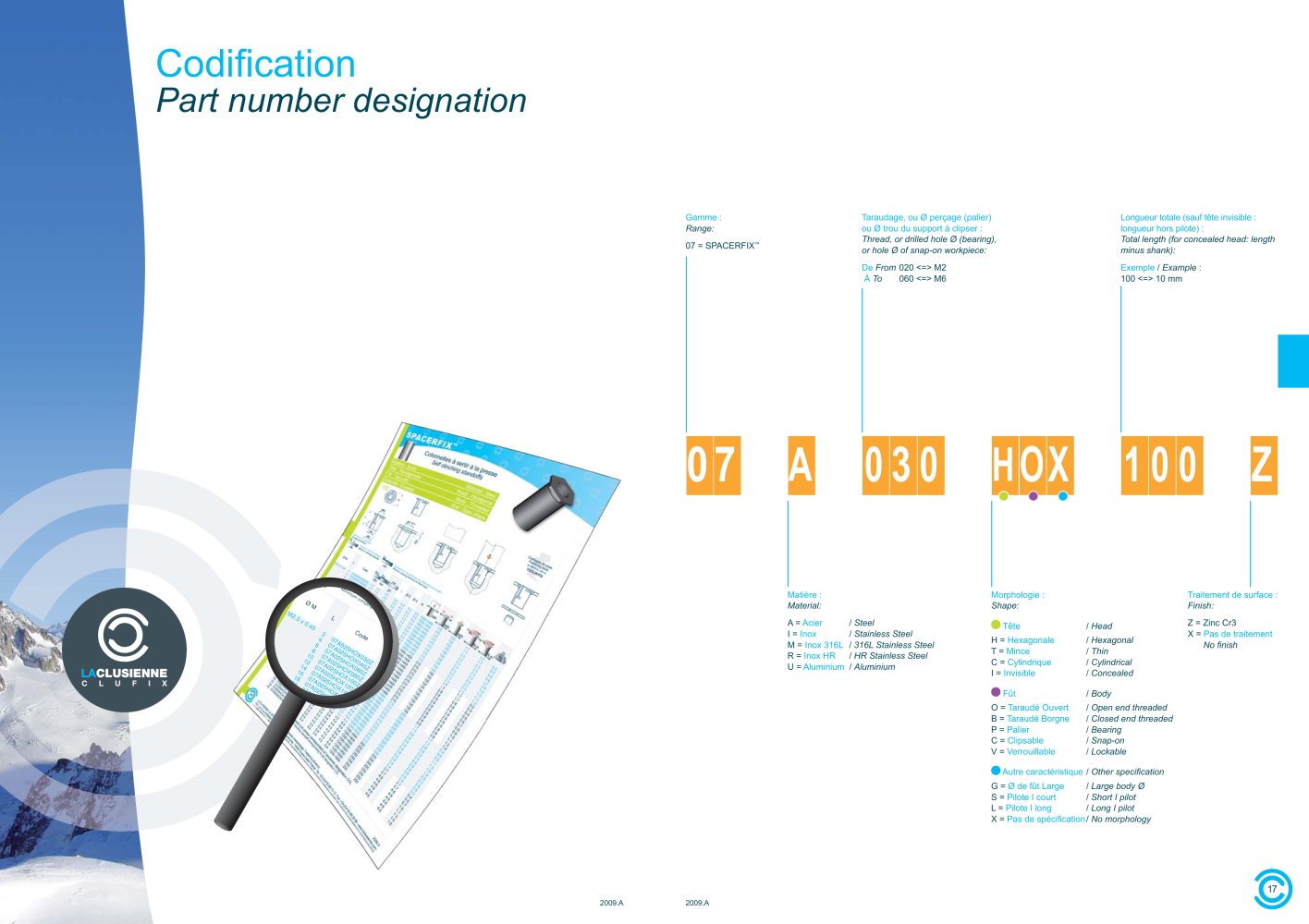

2009.A 2009.A 17 Gamme : Range: 07 = SPACERFIX™ Matière : Material: A = Acier / Steel I = Inox / Stainless Steel M = Inox 316L / 316L Stainless Steel R = Inox HR / HR Stainless Steel U = Aluminium / Aluminium Morphologie : Shape: Tête / Head H = Hexagonale / Hexagonal T = Mince / Thin C = Cylindrique / Cylindrical I = Invisible / Concealed Fût / Body O = Taraudé Ouvert / Open end threaded B = Taraudé Borgne / Closed end threaded P = Palier / Bearing C = Clipsable / Snap-on V = Verrouillable / Lockable Autre caractéristique / Other specifi cation G = Ø de fût Large / Large body Ø S = Pilote I court / Short I pilot L = Pilote I long / Long I pilot X = Pas de spécifi cation / No morphology Longueur totale (sauf tête invisible : longueur hors pilote) : Total length (for concealed head: length minus shank): Exemple / Example : 100 <=> 10 mm Traitement de surface : Finish: Z = Zinc Cr3 X = Pas de traitement No fi nish 07 A 030 HOX 100 Z Taraudage, ou Ø perçage (palier) ou Ø trou du support à clipser : Thread, or drilled hole Ø (bearing), or hole Ø of snap-on workpiece: De From 020 <=> M2 À To 060 <=> M6 Codifi cation Part number designation paisseur mini de sertis Minimum crimping thickn Ø M L Code M2.5 x 0.45 3 07A025HOX030Z 1.0 4 07A025HOX040Z 1.0 6 07A025HOX060Z 1.0 8 07A025HOX080Z 1.0 1 10 07A025HOX100Z 1.0 12 07A025HOX120Z 1 0 14 07A025HOX140Z 16 07A025HOX16 18 07A025HO 20 07A02 50 3 07 4
