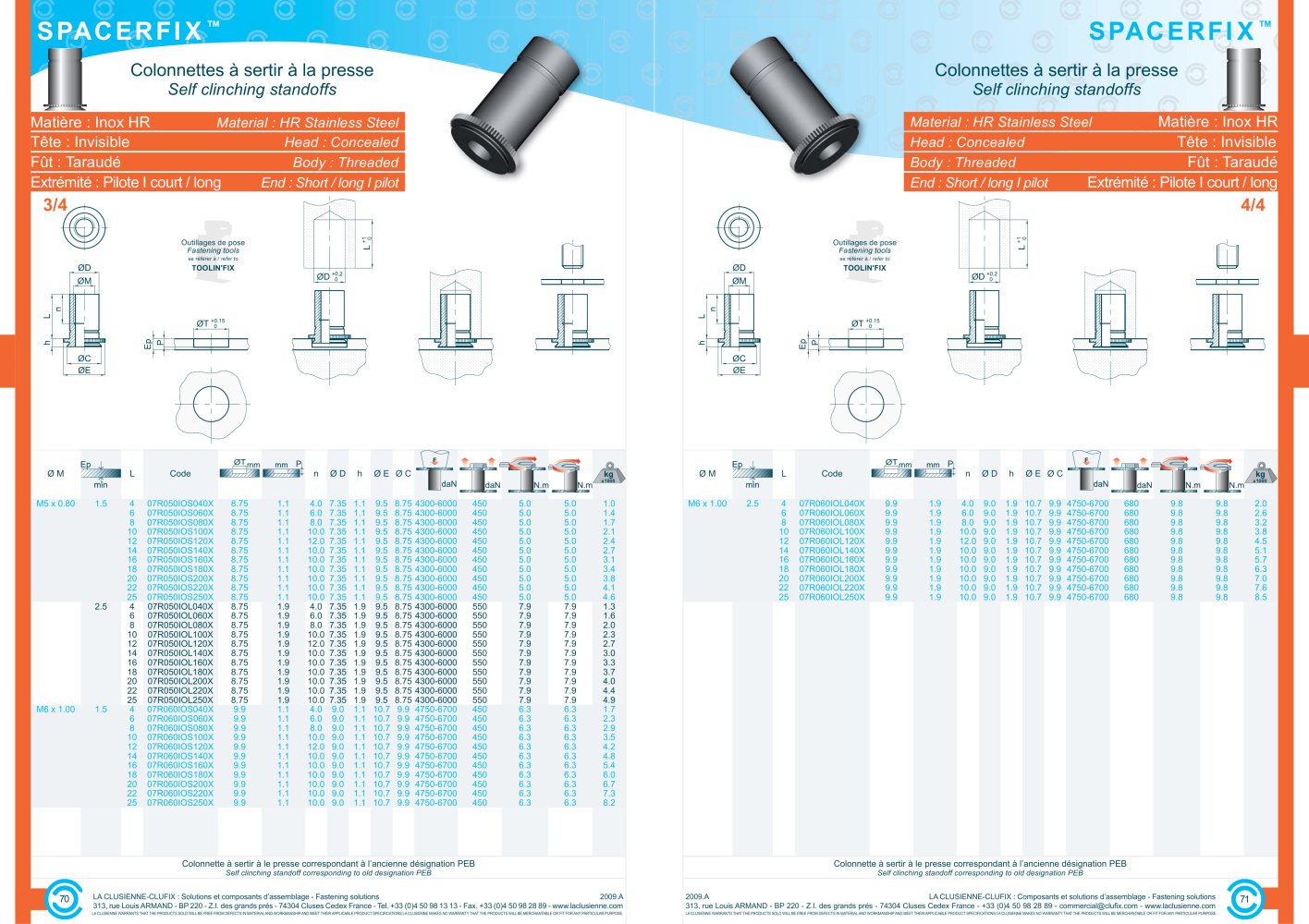

Colonnettes à sertir à la presse Self clinching standoffs SPACERFIX™ Matière : Inox HR Material : HR Stainless Steel Tête : Invisible Head : Concealed 70 71 Fût : Taraudé Body : Threaded Material : HR Stainless Steel Matière : Inox HR Head : Concealed Tête : Invisible Body : Threaded Fût : Taraudé SPACERFIX™ Colonnettes à sertir à la presse Self clinching standoffs LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Extrémité : Pilote I court / long End : Short / long I pilot End : Short / long I pilot Extrémité : Pilote I court / long Colonnette à sertir à le presse correspondant à l’ancienne désignation PEB Self clinching standoff corresponding to old designation PEB Colonnette à sertir à le presse correspondant à l’ancienne désignation PEB Self clinching standoff corresponding to old designation PEB Ø M L Code n Ø D h Ø E Ø C Ø M L Code n Ø D h Ø E Ø C Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX M6 x 1.00 2.5 4 07R060IOL040X 9.9 1.9 4.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 2.0 6 07R060IOL060X 9.9 1.9 6.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 2.6 8 07R060IOL080X 9.9 1.9 8.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 3.2 10 07R060IOL100X 9.9 1.9 10.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 3.8 12 07R060IOL120X 9.9 1.9 12.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 4.5 14 07R060IOL140X 9.9 1.9 10.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 5.1 16 07R060IOL160X 9.9 1.9 10.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 5.7 18 07R060IOL180X 9.9 1.9 10.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 6.3 20 07R060IOL200X 9.9 1.9 10.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 7.0 22 07R060IOL220X 9.9 1.9 10.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 7.6 25 07R060IOL250X 9.9 1.9 10.0 9.0 1.9 10.7 9.9 4750-6700 680 9.8 9.8 8.5 4/4 M5 x 0.80 1.5 4 07R050IOS040X 8.75 1.1 4.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 1.0 6 07R050IOS060X 8.75 1.1 6.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 1.4 8 07R050IOS080X 8.75 1.1 8.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 1.7 10 07R050IOS100X 8.75 1.1 10.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 2.1 12 07R050IOS120X 8.75 1.1 12.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 2.4 14 07R050IOS140X 8.75 1.1 10.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 2.7 16 07R050IOS160X 8.75 1.1 10.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 3.1 18 07R050IOS180X 8.75 1.1 10.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 3.4 20 07R050IOS200X 8.75 1.1 10.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 3.8 22 07R050IOS220X 8.75 1.1 10.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 4.1 25 07R050IOS250X 8.75 1.1 10.0 7.35 1.1 9.5 8.75 4300-6000 450 5.0 5.0 4.6 2.5 4 07R050IOL040X 8.75 1.9 4.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 1.3 6 07R050IOL060X 8.75 1.9 6.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 1.6 8 07R050IOL080X 8.75 1.9 8.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 2.0 10 07R050IOL100X 8.75 1.9 10.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 2.3 12 07R050IOL120X 8.75 1.9 12.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 2.7 14 07R050IOL140X 8.75 1.9 10.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 3.0 16 07R050IOL160X 8.75 1.9 10.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 3.3 18 07R050IOL180X 8.75 1.9 10.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 3.7 20 07R050IOL200X 8.75 1.9 10.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 4.0 22 07R050IOL220X 8.75 1.9 10.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 4.4 25 07R050IOL250X 8.75 1.9 10.0 7.35 1.9 9.5 8.75 4300-6000 550 7.9 7.9 4.9 M6 x 1.00 1.5 4 07R060IOS040X 9.9 1.1 4.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 1.7 6 07R060IOS060X 9.9 1.1 6.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 2.3 8 07R060IOS080X 9.9 1.1 8.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 2.9 10 07R060IOS100X 9.9 1.1 10.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 3.5 12 07R060IOS120X 9.9 1.1 12.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 4.2 14 07R060IOS140X 9.9 1.1 10.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 4.8 16 07R060IOS160X 9.9 1.1 10.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 5.4 18 07R060IOS180X 9.9 1.1 10.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 6.0 20 07R060IOS200X 9.9 1.1 10.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 6.7 22 07R060IOS220X 9.9 1.1 10.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 7.3 25 07R060IOS250X 9.9 1.1 10.0 9.0 1.1 10.7 9.9 4750-6700 450 6.3 6.3 8.2 3/4
