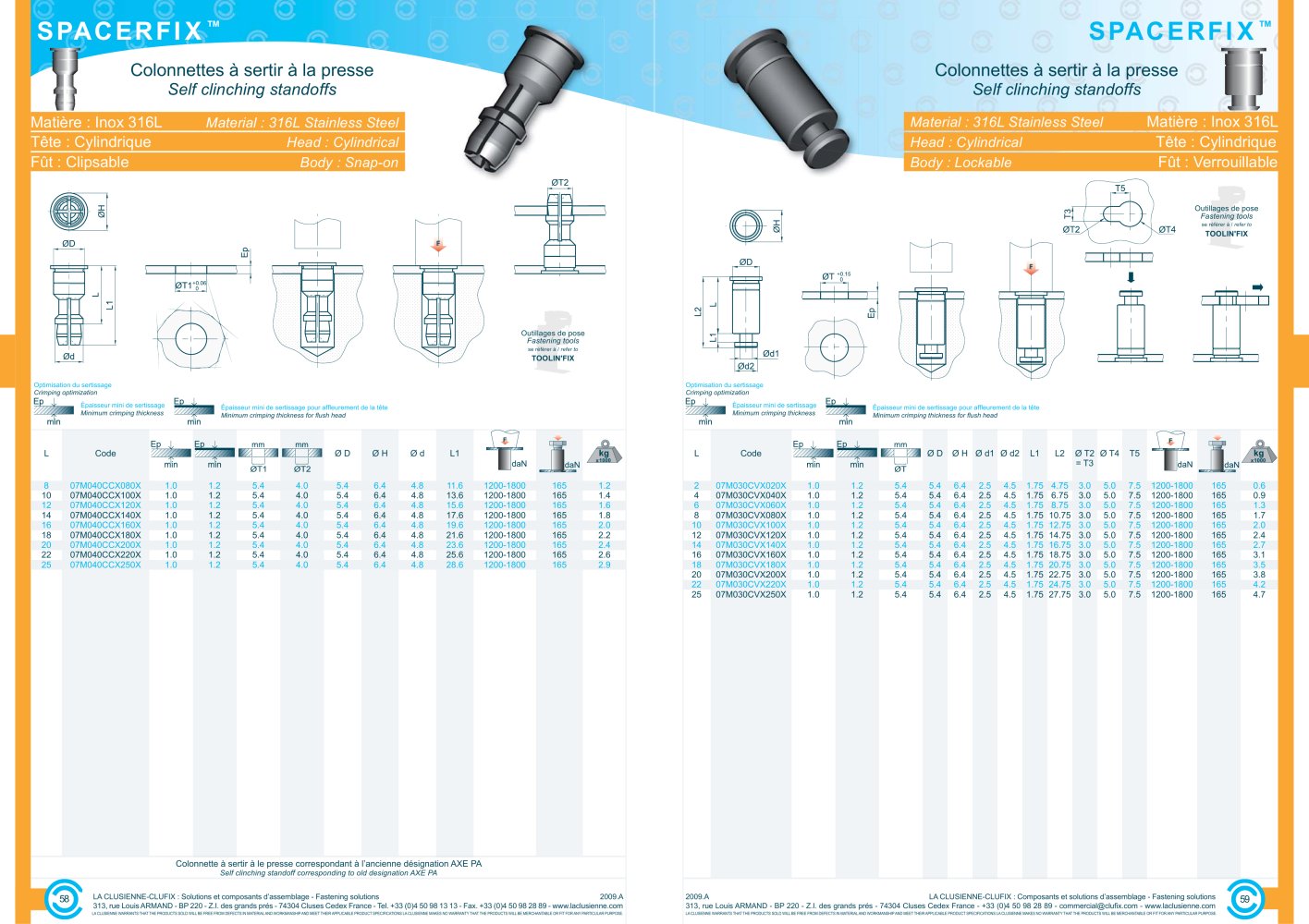

L Code Ø D Ø H Ø d1 Ø d2 L1 L2 Ø T2 Ø T4 T5 Colonnettes à sertir à la presse Self clinching standoffs SPACERFIX™ Matière : Inox 316L Material : 316L Stainless Steel Tête : Cylindrique Head : Cylindrical 58 59 Fût : Clipsable Body : Snap-on Material : 316L Stainless Steel Matière : Inox 316L Head : Cylindrical Tête : Cylindrique Body : Lockable Fût : Verrouillable SPACERFIX™ Colonnettes à sertir à la presse Self clinching standoffs LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. L Code Ø D Ø H Ø d L1 Colonnette à sertir à le presse correspondant à l’ancienne désignation AXE PA Self clinching standoff corresponding to old designation AXE PA = T3 Optimisation du sertissage Crimping optimization Épaisseur mini de sertissage pour affl eurement de la tête Minimum crimping thickness for fl ush head Épaisseur mini de sertissage Minimum crimping thickness Optimisation du sertissage Crimping optimization Épaisseur mini de sertissage pour affl eurement de la tête Minimum crimping thickness for fl ush head Épaisseur mini de sertissage Minimum crimping thickness Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX 2 07M030CVX020X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 4.75 3.0 5.0 7.5 1200-1800 165 0.6 4 07M030CVX040X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 6.75 3.0 5.0 7.5 1200-1800 165 0.9 6 07M030CVX060X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 8.75 3.0 5.0 7.5 1200-1800 165 1.3 8 07M030CVX080X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 10.75 3.0 5.0 7.5 1200-1800 165 1.7 10 07M030CVX100X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 12.75 3.0 5.0 7.5 1200-1800 165 2.0 12 07M030CVX120X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 14.75 3.0 5.0 7.5 1200-1800 165 2.4 14 07M030CVX140X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 16.75 3.0 5.0 7.5 1200-1800 165 2.7 16 07M030CVX160X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 18.75 3.0 5.0 7.5 1200-1800 165 3.1 18 07M030CVX180X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 20.75 3.0 5.0 7.5 1200-1800 165 3.5 20 07M030CVX200X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 22.75 3.0 5.0 7.5 1200-1800 165 3.8 22 07M030CVX220X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 24.75 3.0 5.0 7.5 1200-1800 165 4.2 25 07M030CVX250X 1.0 1.2 5.4 5.4 6.4 2.5 4.5 1.75 27.75 3.0 5.0 7.5 1200-1800 165 4.7 8 07M040CCX080X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 11.6 1200-1800 165 1.2 10 07M040CCX100X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 13.6 1200-1800 165 1.4 12 07M040CCX120X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 15.6 1200-1800 165 1.6 14 07M040CCX140X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 17.6 1200-1800 165 1.8 16 07M040CCX160X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 19.6 1200-1800 165 2.0 18 07M040CCX180X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 21.6 1200-1800 165 2.2 20 07M040CCX200X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 23.6 1200-1800 165 2.4 22 07M040CCX220X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 25.6 1200-1800 165 2.6 25 07M040CCX250X 1.0 1.2 5.4 4.0 5.4 6.4 4.8 28.6 1200-1800 165 2.9
