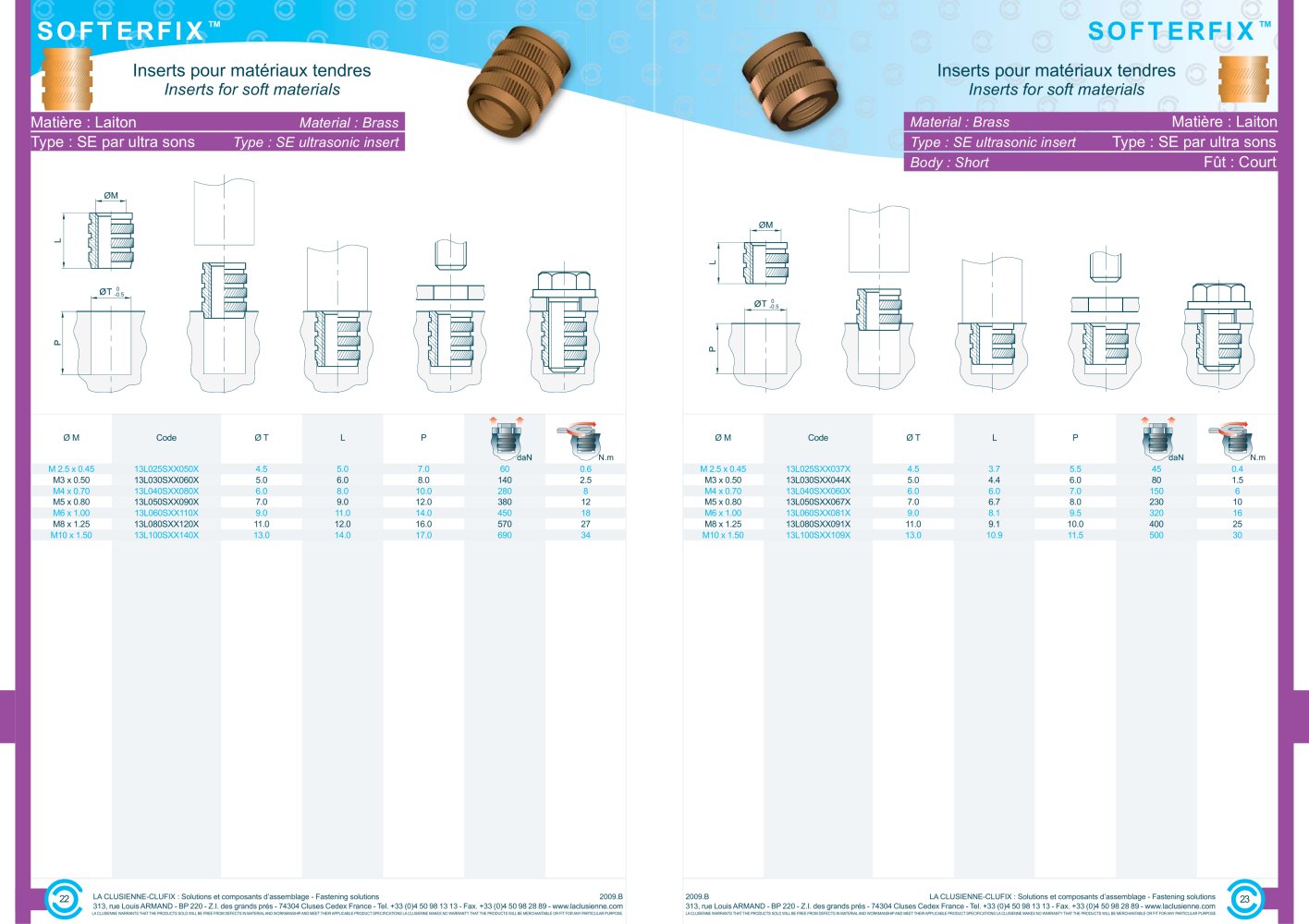

Inserts pour matériaux tendres
Inserts for soft materials
SOFTERFIX™
Matière : Laiton Material : Brass
Type : SE par ultra sons Type : SE ultrasonic insert
22 LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.B
313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com
LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE.
M 2.5 x 0.45 13L025SXX050X 4.5 5.0 7.0 60 0.6
M3 x 0.50 13L030SXX060X 5.0 6.0 8.0 140 2.5
M4 x 0.70 13L040SXX080X 6.0 8.0 10.0 280 8
M5 x 0.80 13L050SXX090X 7.0 9.0 12.0 380 12
M6 x 1.00 13L060SXX110X 9.0 11.0 14.0 450 18
M8 x 1.25 13L080SXX120X 11.0 12.0 16.0 570 27
M10 x 1.50 13L100SXX140X 13.0 14.0 17.0 690 34
Ø M Code Ø T L P
2009.B LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 23
313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com
Material : Brass Matière : Laiton
Type : SE ultrasonic insert Type : SE par ultra sons
SOFTERFIX™
Inserts pour matériaux tendres
Inserts for soft materials
LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE.
Ø M Code Ø T L P
M 2.5 x 0.45 13L025SXX037X 4.5 3.7 5.5 45 0.4
M3 x 0.50 13L030SXX044X 5.0 4.4 6.0 80 1.5
M4 x 0.70 13L040SXX060X 6.0 6.0 7.0 150 6
M5 x 0.80 13L050SXX067X 7.0 6.7 8.0 230 10
M6 x 1.00 13L060SXX081X 9.0 8.1 9.5 320 16
M8 x 1.25 13L080SXX091X 11.0 9.1 10.0 400 25
M10 x 1.50 13L100SXX109X 13.0 10.9 11.5 500 30
Body : Short Fût : Court
