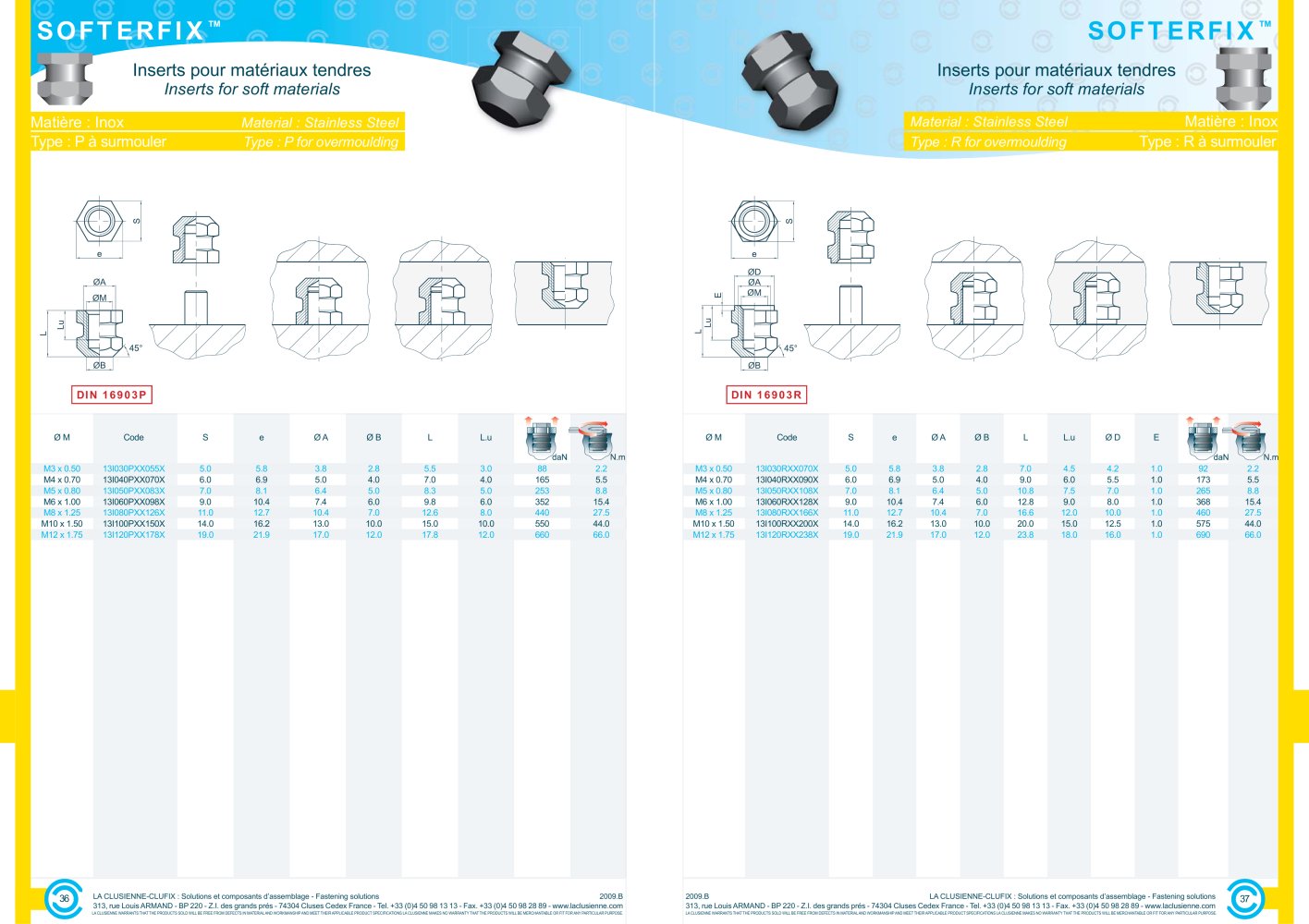

Inserts pour matériaux tendres Inserts for soft materials SOFTERFIX™ Matière : Inox Material : Stainless Steel Type : P à surmouler Type : P for overmoulding 36 LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.B 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. DIN 16903P M3 x 0.50 13I030PXX055X 5.0 5.8 3.8 2.8 5.5 3.0 88 2.2 M4 x 0.70 13I040PXX070X 6.0 6.9 5.0 4.0 7.0 4.0 165 5.5 M5 x 0.80 13I050PXX083X 7.0 8.1 6.4 5.0 8.3 5.0 253 8.8 M6 x 1.00 13I060PXX098X 9.0 10.4 7.4 6.0 9.8 6.0 352 15.4 M8 x 1.25 13I080PXX126X 11.0 12.7 10.4 7.0 12.6 8.0 440 27.5 M10 x 1.50 13I100PXX150X 14.0 16.2 13.0 10.0 15.0 10.0 550 44.0 M12 x 1.75 13I120PXX178X 19.0 21.9 17.0 12.0 17.8 12.0 660 66.0 Ø M Code S e Ø A Ø B L L.u 2009.B LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 37 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com Material : Stainless Steel Matière : Inox Type : R for overmoulding Type : R à surmouler SOFTERFIX™ Inserts pour matériaux tendres Inserts for soft materials LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. DIN 16903R Ø M Code S e Ø A Ø B L L.u Ø D E M3 x 0.50 13I030RXX070X 5.0 5.8 3.8 2.8 7.0 4.5 4.2 1.0 92 2.2 M4 x 0.70 13I040RXX090X 6.0 6.9 5.0 4.0 9.0 6.0 5.5 1.0 173 5.5 M5 x 0.80 13I050RXX108X 7.0 8.1 6.4 5.0 10.8 7.5 7.0 1.0 265 8.8 M6 x 1.00 13I060RXX128X 9.0 10.4 7.4 6.0 12.8 9.0 8.0 1.0 368 15.4 M8 x 1.25 13I080RXX166X 11.0 12.7 10.4 7.0 16.6 12.0 10.0 1.0 460 27.5 M10 x 1.50 13I100RXX200X 14.0 16.2 13.0 10.0 20.0 15.0 12.5 1.0 575 44.0 M12 x 1.75 13I120RXX238X 19.0 21.9 17.0 12.0 23.8 18.0 16.0 1.0 690 66.0
