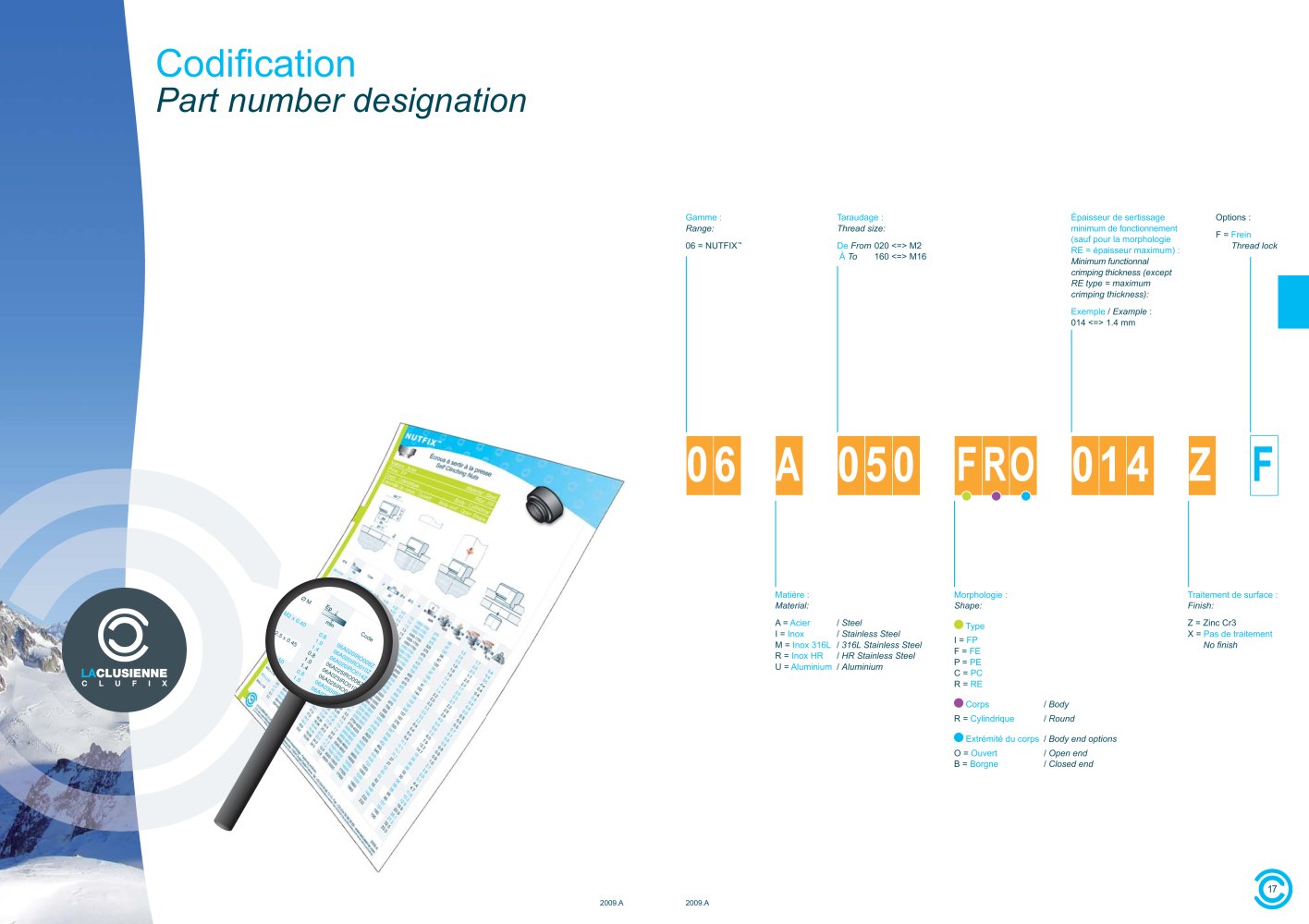

2009.A 2009.A
17
Gamme :
Range:
06 = NUTFIX™
Matičre :
Material:
A = Acier / Steel
I = Inox / Stainless Steel
M = Inox 316L / 316L Stainless Steel
R = Inox HR / HR Stainless Steel
U = Aluminium / Aluminium
Taraudage :
Thread size:
De From 020 <=> M2
Ŕ To 160 <=> M16
Morphologie :
Shape:
Type
I = FP
F = FE
P = PE
C = PC
R = RE
Corps / Body
R = Cylindrique / Round
Extrémité du corps / Body end options
O = Ouvert / Open end
B = Borgne / Closed end
Épaisseur de sertissage
minimum de fonctionnement
(sauf pour la morphologie
RE = épaisseur maximum) :
Minimum functionnal
crimping thickness (except
RE type = maximum
crimping thickness):
Exemple / Example :
014 <=> 1.4 mm
Traitement de surface :
Finish:
Z = Zinc Cr3
X = Pas de traitement
No fi nish
06 A 050 FRO 014 Z F
Options :
F = Frein
Thread lock
Codifi cation
Part number designation
Ř M Code
M2 x 0.40 0.8 06A020IRO008Z 0.
1.0 06A020IRO010Z 0.97
1.4 06A020IRO014Z 1.37
M2.5 x 0.45 0.8 06A025IRO008Z 0.76
1.0 06A025IRO010Z 0
1.4 06A025IRO014Z
0.50 0.8 06A030IRO0
1.0 06A030
1.4 06A
2.3
0
