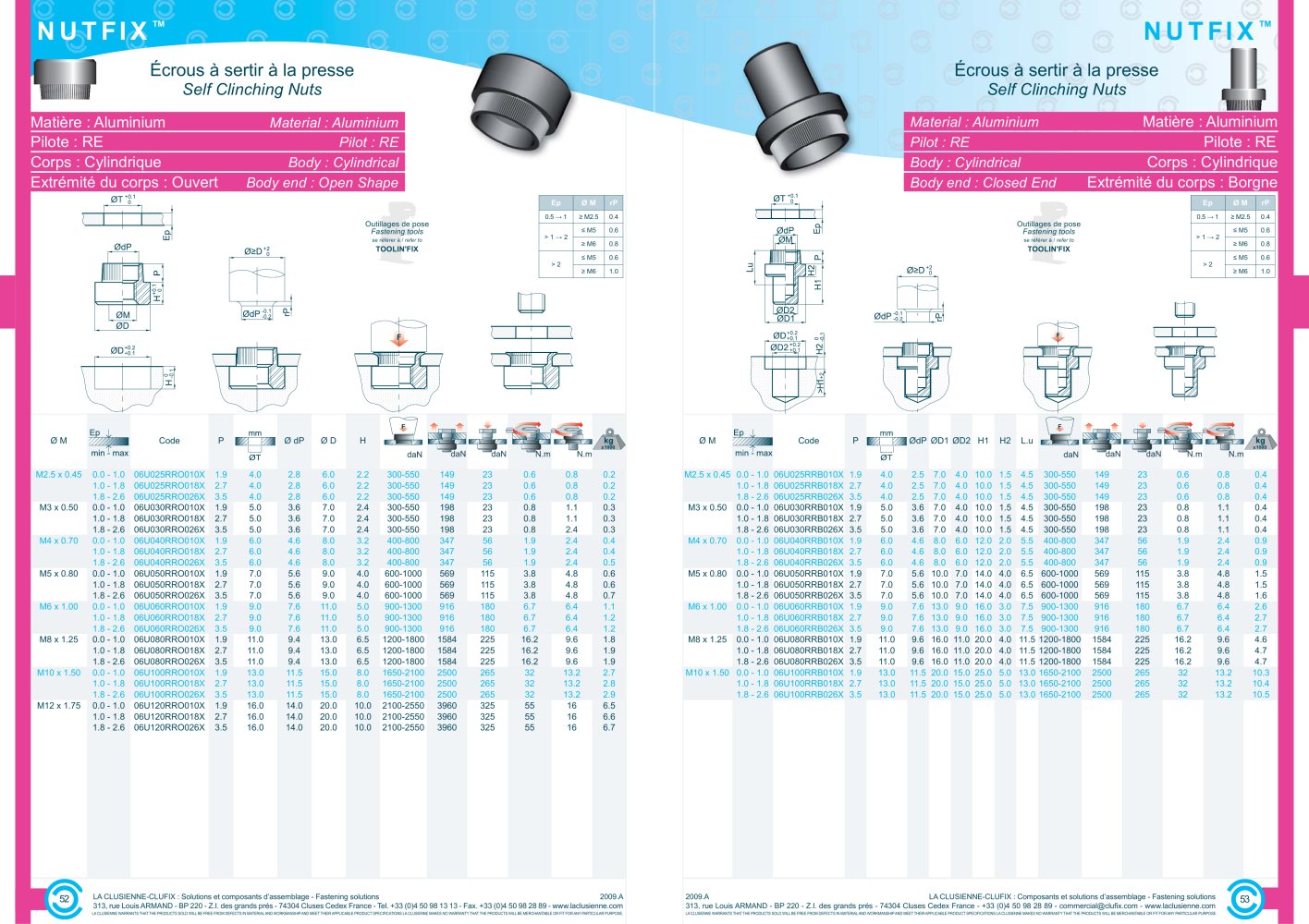

Écrous à sertir à la presse Self Clinching Nuts NUTFIX™ Matière : Aluminium Material : Aluminium Pilote : RE Pilot : RE 52 53 Extrémité du corps : Ouvert Body end : Open Shape Corps : Cylindrique Body : Cylindrical Material : Aluminium Matière : Aluminium Pilot : RE Pilote : RE Body end : Closed End Extrémité du corps : Borgne Body : Cylindrical Corps : Cylindrique NUTFIX™ Écrous à sertir à la presse Self Clinching Nuts LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Ep Ø M rP 0.5 �¨ 1 M2.5 0.4 > 1 �¨ 2 M5 0.6 M6 0.8 > 2 M5 0.6 M6 1.0 Ep Ø M rP 0.5 �¨ 1 M2.5 0.4 > 1 �¨ 2 M5 0.6 M6 0.8 > 2 M5 0.6 M6 1.0 Ø M Code P Ø dP Ø D H Ø M Code P ØdP ØD1 ØD2 H1 H2 L.u M2.5 x 0.45 0.0 - 1.0 06U025RRB010X 1.9 4.0 2.5 7.0 4.0 10.0 1.5 4.5 300-550 149 23 0.6 0.8 0.4 1.0 - 1.8 06U025RRB018X 2.7 4.0 2.5 7.0 4.0 10.0 1.5 4.5 300-550 149 23 0.6 0.8 0.4 1.8 - 2.6 06U025RRB026X 3.5 4.0 2.5 7.0 4.0 10.0 1.5 4.5 300-550 149 23 0.6 0.8 0.4 M3 x 0.50 0.0 - 1.0 06U030RRB010X 1.9 5.0 3.6 7.0 4.0 10.0 1.5 4.5 300-550 198 23 0.8 1.1 0.4 1.0 - 1.8 06U030RRB018X 2.7 5.0 3.6 7.0 4.0 10.0 1.5 4.5 300-550 198 23 0.8 1.1 0.4 1.8 - 2.6 06U030RRB026X 3.5 5.0 3.6 7.0 4.0 10.0 1.5 4.5 300-550 198 23 0.8 1.1 0.4 M4 x 0.70 0.0 - 1.0 06U040RRB010X 1.9 6.0 4.6 8.0 6.0 12.0 2.0 5.5 400-800 347 56 1.9 2.4 0.9 1.0 - 1.8 06U040RRB018X 2.7 6.0 4.6 8.0 6.0 12.0 2.0 5.5 400-800 347 56 1.9 2.4 0.9 1.8 - 2.6 06U040RRB026X 3.5 6.0 4.6 8.0 6.0 12.0 2.0 5.5 400-800 347 56 1.9 2.4 0.9 M5 x 0.80 0.0 - 1.0 06U050RRB010X 1.9 7.0 5.6 10.0 7.0 14.0 4.0 6.5 600-1000 569 115 3.8 4.8 1.5 1.0 - 1.8 06U050RRB018X 2.7 7.0 5.6 10.0 7.0 14.0 4.0 6.5 600-1000 569 115 3.8 4.8 1.5 1.8 - 2.6 06U050RRB026X 3.5 7.0 5.6 10.0 7.0 14.0 4.0 6.5 600-1000 569 115 3.8 4.8 1.6 M6 x 1.00 0.0 - 1.0 06U060RRB010X 1.9 9.0 7.6 13.0 9.0 16.0 3.0 7.5 900-1300 916 180 6.7 6.4 2.6 1.0 - 1.8 06U060RRB018X 2.7 9.0 7.6 13.0 9.0 16.0 3.0 7.5 900-1300 916 180 6.7 6.4 2.7 1.8 - 2.6 06U060RRB026X 3.5 9.0 7.6 13.0 9.0 16.0 3.0 7.5 900-1300 916 180 6.7 6.4 2.7 M8 x 1.25 0.0 - 1.0 06U080RRB010X 1.9 11.0 9.6 16.0 11.0 20.0 4.0 11.5 1200-1800 1584 225 16.2 9.6 4.6 1.0 - 1.8 06U080RRB018X 2.7 11.0 9.6 16.0 11.0 20.0 4.0 11.5 1200-1800 1584 225 16.2 9.6 4.7 1.8 - 2.6 06U080RRB026X 3.5 11.0 9.6 16.0 11.0 20.0 4.0 11.5 1200-1800 1584 225 16.2 9.6 4.7 M10 x 1.50 0.0 - 1.0 06U100RRB010X 1.9 13.0 11.5 20.0 15.0 25.0 5.0 13.0 1650-2100 2500 265 32 13.2 10.3 1.0 - 1.8 06U100RRB018X 2.7 13.0 11.5 20.0 15.0 25.0 5.0 13.0 1650-2100 2500 265 32 13.2 10.4 1.8 - 2.6 06U100RRB026X 3.5 13.0 11.5 20.0 15.0 25.0 5.0 13.0 1650-2100 2500 265 32 13.2 10.5 M2.5 x 0.45 0.0 - 1.0 06U025RRO010X 1.9 4.0 2.8 6.0 2.2 300-550 149 23 0.6 0.8 0.2 1.0 - 1.8 06U025RRO018X 2.7 4.0 2.8 6.0 2.2 300-550 149 23 0.6 0.8 0.2 1.8 - 2.6 06U025RRO026X 3.5 4.0 2.8 6.0 2.2 300-550 149 23 0.6 0.8 0.2 M3 x 0.50 0.0 - 1.0 06U030RRO010X 1.9 5.0 3.6 7.0 2.4 300-550 198 23 0.8 1.1 0.3 1.0 - 1.8 06U030RRO018X 2.7 5.0 3.6 7.0 2.4 300-550 198 23 0.8 1.1 0.3 1.8 - 2.6 06U030RRO026X 3.5 5.0 3.6 7.0 2.4 300-550 198 23 0.8 2.4 0.3 M4 x 0.70 0.0 - 1.0 06U040RRO010X 1.9 6.0 4.6 8.0 3.2 400-800 347 56 1.9 2.4 0.4 1.0 - 1.8 06U040RRO018X 2.7 6.0 4.6 8.0 3.2 400-800 347 56 1.9 2.4 0.4 1.8 - 2.6 06U040RRO026X 3.5 6.0 4.6 8.0 3.2 400-800 347 56 1.9 2.4 0.5 M5 x 0.80 0.0 - 1.0 06U050RRO010X 1.9 7.0 5.6 9.0 4.0 600-1000 569 115 3.8 4.8 0.6 1.0 - 1.8 06U050RRO018X 2.7 7.0 5.6 9.0 4.0 600-1000 569 115 3.8 4.8 0.6 1.8 - 2.6 06U050RRO026X 3.5 7.0 5.6 9.0 4.0 600-1000 569 115 3.8 4.8 0.7 M6 x 1.00 0.0 - 1.0 06U060RRO010X 1.9 9.0 7.6 11.0 5.0 900-1300 916 180 6.7 6.4 1.1 1.0 - 1.8 06U060RRO018X 2.7 9.0 7.6 11.0 5.0 900-1300 916 180 6.7 6.4 1.2 1.8 - 2.6 06U060RRO026X 3.5 9.0 7.6 11.0 5.0 900-1300 916 180 6.7 6.4 1.2 M8 x 1.25 0.0 - 1.0 06U080RRO010X 1.9 11.0 9.4 13.0 6.5 1200-1800 1584 225 16.2 9.6 1.8 1.0 - 1.8 06U080RRO018X 2.7 11.0 9.4 13.0 6.5 1200-1800 1584 225 16.2 9.6 1.9 1.8 - 2.6 06U080RRO026X 3.5 11.0 9.4 13.0 6.5 1200-1800 1584 225 16.2 9.6 1.9 M10 x 1.50 0.0 - 1.0 06U100RRO010X 1.9 13.0 11.5 15.0 8.0 1650-2100 2500 265 32 13.2 2.7 1.0 - 1.8 06U100RRO018X 2.7 13.0 11.5 15.0 8.0 1650-2100 2500 265 32 13.2 2.8 1.8 - 2.6 06U100RRO026X 3.5 13.0 11.5 15.0 8.0 1650-2100 2500 265 32 13.2 2.9 M12 x 1.75 0.0 - 1.0 06U120RRO010X 1.9 16.0 14.0 20.0 10.0 2100-2550 3960 325 55 16 6.5 1.0 - 1.8 06U120RRO018X 2.7 16.0 14.0 20.0 10.0 2100-2550 3960 325 55 16 6.6 1.8 - 2.6 06U120RRO026X 3.5 16.0 14.0 20.0 10.0 2100-2550 3960 325 55 16 6.7
