NUTFIX™ Stainless Steel - 316L - HR - LA CLUSIENNE CLUFIX - #20

Text version of the page

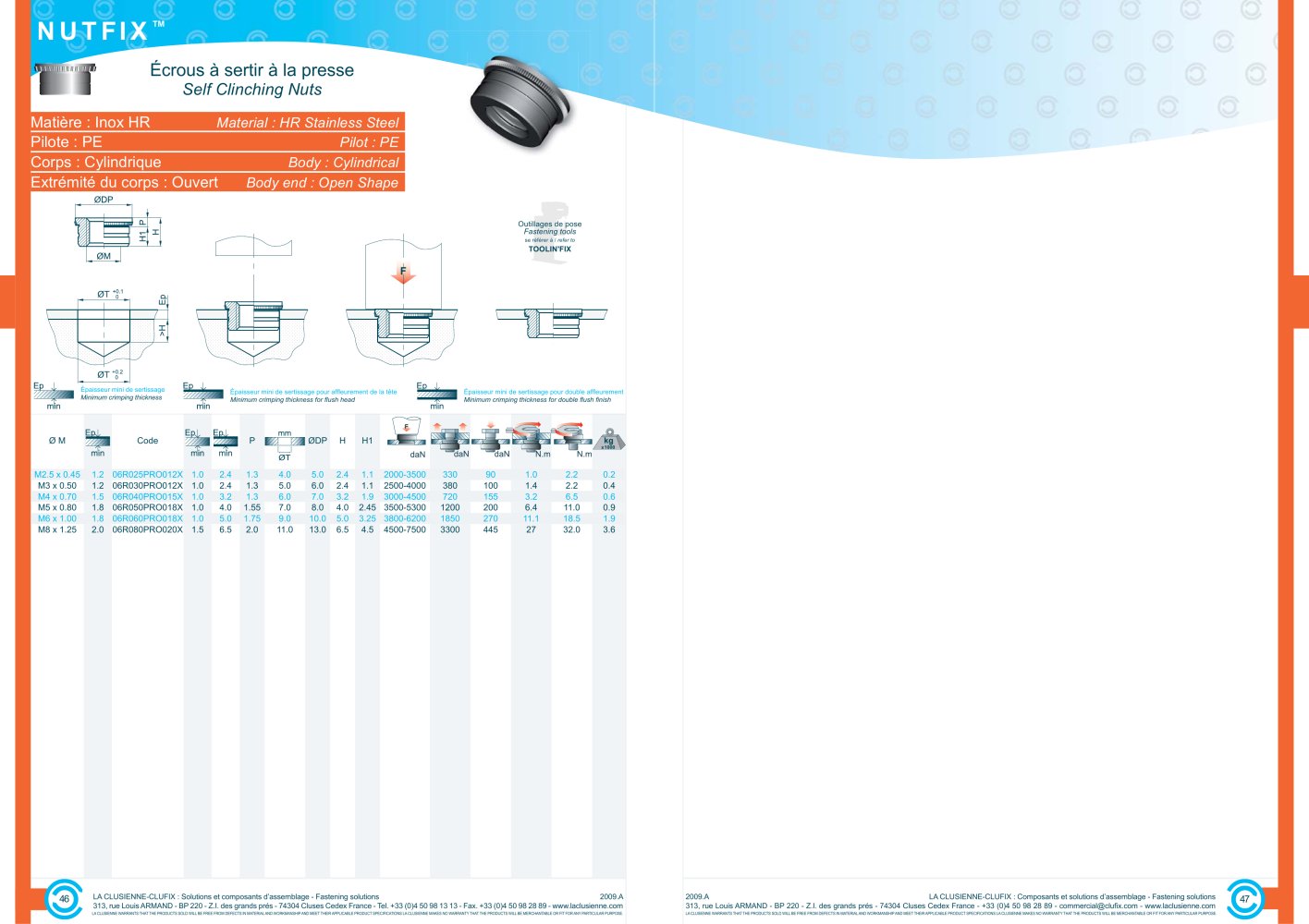

Écrous à sertir à la presse Self Clinching Nuts NUTFIX™ Matière : Inox HR Material : HR Stainless Steel Pilote : PE Pilot : PE 46 47 Extrémité du corps : Ouvert Body end : Open Shape Corps : Cylindrique Body : Cylindrical LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Ø M Code P ØDP H H1 Épaisseur mini de sertissage pour affl eurement de la tête Minimum crimping thickness for fl ush head Épaisseur mini de sertissage pour double affl eurement Minimum crimping thickness for double fl ush fi nish Épaisseur mini de sertissage Minimum crimping thickness M2.5 x 0.45 1.2 06R025PRO012X 1.0 2.4 1.3 4.0 5.0 2.4 1.1 2000-3500 330 90 1.0 2.2 0.2 M3 x 0.50 1.2 06R030PRO012X 1.0 2.4 1.3 5.0 6.0 2.4 1.1 2500-4000 380 100 1.4 2.2 0.4 M4 x 0.70 1.5 06R040PRO015X 1.0 3.2 1.3 6.0 7.0 3.2 1.9 3000-4500 720 155 3.2 6.5 0.6 M5 x 0.80 1.8 06R050PRO018X 1.0 4.0 1.55 7.0 8.0 4.0 2.45 3500-5300 1200 200 6.4 11.0 0.9 M6 x 1.00 1.8 06R060PRO018X 1.0 5.0 1.75 9.0 10.0 5.0 3.25 3800-6200 1850 270 11.1 18.5 1.9 M8 x 1.25 2.0 06R080PRO020X 1.5 6.5 2.0 11.0 13.0 6.5 4.5 4500-7500 3300 445 27 32.0 3.6
