NUTFIX™ Stainless Steel - 316L - HR - LA CLUSIENNE CLUFIX - #19

Text version of the page

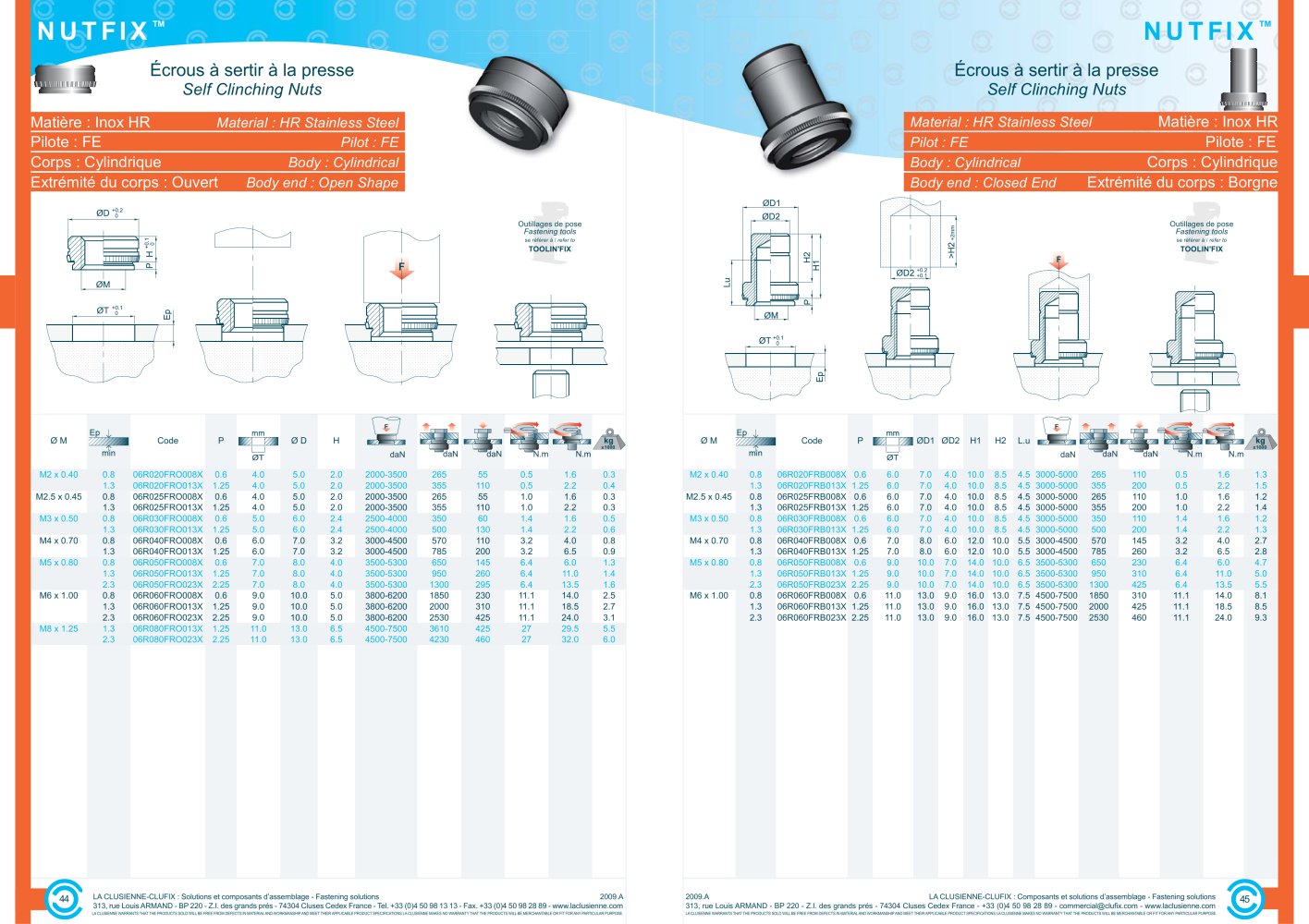

Écrous à sertir à la presse Self Clinching Nuts NUTFIX™ Matière : Inox HR Material : HR Stainless Steel Pilote : FE Pilot : FE 44 45 Extrémité du corps : Ouvert Body end : Open Shape Corps : Cylindrique Body : Cylindrical Material : HR Stainless Steel Matière : Inox HR Pilot : FE Pilote : FE Body end : Closed End Extrémité du corps : Borgne Body : Cylindrical Corps : Cylindrique NUTFIX™ Écrous à sertir à la presse Self Clinching Nuts LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Ø M Code P Ø D H Ø M Code P ØD1 ØD2 H1 H2 L.u M2 x 0.40 0.8 06R020FRB008X 0.6 6.0 7.0 4.0 10.0 8.5 4.5 3000-5000 265 110 0.5 1.6 1.3 1.3 06R020FRB013X 1.25 6.0 7.0 4.0 10.0 8.5 4.5 3000-5000 355 200 0.5 2.2 1.5 M2.5 x 0.45 0.8 06R025FRB008X 0.6 6.0 7.0 4.0 10.0 8.5 4.5 3000-5000 265 110 1.0 1.6 1.2 1.3 06R025FRB013X 1.25 6.0 7.0 4.0 10.0 8.5 4.5 3000-5000 355 200 1.0 2.2 1.4 M3 x 0.50 0.8 06R030FRB008X 0.6 6.0 7.0 4.0 10.0 8.5 4.5 3000-5000 350 110 1.4 1.6 1.2 1.3 06R030FRB013X 1.25 6.0 7.0 4.0 10.0 8.5 4.5 3000-5000 500 200 1.4 2.2 1.3 M4 x 0.70 0.8 06R040FRB008X 0.6 7.0 8.0 6.0 12.0 10.0 5.5 3000-4500 570 145 3.2 4.0 2.7 1.3 06R040FRB013X 1.25 7.0 8.0 6.0 12.0 10.0 5.5 3000-4500 785 260 3.2 6.5 2.8 M5 x 0.80 0.8 06R050FRB008X 0.6 9.0 10.0 7.0 14.0 10.0 6.5 3500-5300 650 230 6.4 6.0 4.7 1.3 06R050FRB013X 1.25 9.0 10.0 7.0 14.0 10.0 6.5 3500-5300 950 310 6.4 11.0 5.0 2.3 06R050FRB023X 2.25 9.0 10.0 7.0 14.0 10.0 6.5 3500-5300 1300 425 6.4 13.5 5.5 M6 x 1.00 0.8 06R060FRB008X 0.6 11.0 13.0 9.0 16.0 13.0 7.5 4500-7500 1850 310 11.1 14.0 8.1 1.3 06R060FRB013X 1.25 11.0 13.0 9.0 16.0 13.0 7.5 4500-7500 2000 425 11.1 18.5 8.5 2.3 06R060FRB023X 2.25 11.0 13.0 9.0 16.0 13.0 7.5 4500-7500 2530 460 11.1 24.0 9.3 M2 x 0.40 0.8 06R020FRO008X 0.6 4.0 5.0 2.0 2000-3500 265 55 0.5 1.6 0.3 1.3 06R020FRO013X 1.25 4.0 5.0 2.0 2000-3500 355 110 0.5 2.2 0.4 M2.5 x 0.45 0.8 06R025FRO008X 0.6 4.0 5.0 2.0 2000-3500 265 55 1.0 1.6 0.3 1.3 06R025FRO013X 1.25 4.0 5.0 2.0 2000-3500 355 110 1.0 2.2 0.3 M3 x 0.50 0.8 06R030FRO008X 0.6 5.0 6.0 2.4 2500-4000 350 60 1.4 1.6 0.5 1.3 06R030FRO013X 1.25 5.0 6.0 2.4 2500-4000 500 130 1.4 2.2 0.6 M4 x 0.70 0.8 06R040FRO008X 0.6 6.0 7.0 3.2 3000-4500 570 110 3.2 4.0 0.8 1.3 06R040FRO013X 1.25 6.0 7.0 3.2 3000-4500 785 200 3.2 6.5 0.9 M5 x 0.80 0.8 06R050FRO008X 0.6 7.0 8.0 4.0 3500-5300 650 145 6.4 6.0 1.3 1.3 06R050FRO013X 1.25 7.0 8.0 4.0 3500-5300 950 260 6.4 11.0 1.4 2.3 06R050FRO023X 2.25 7.0 8.0 4.0 3500-5300 1300 295 6.4 13.5 1.6 M6 x 1.00 0.8 06R060FRO008X 0.6 9.0 10.0 5.0 3800-6200 1850 230 11.1 14.0 2.5 1.3 06R060FRO013X 1.25 9.0 10.0 5.0 3800-6200 2000 310 11.1 18.5 2.7 2.3 06R060FRO023X 2.25 9.0 10.0 5.0 3800-6200 2530 425 11.1 24.0 3.1 M8 x 1.25 1.3 06R080FRO013X 1.25 11.0 13.0 6.5 4500-7500 3610 425 27 29.5 5.5 2.3 06R080FRO023X 2.25 11.0 13.0 6.5 4500-7500 4230 460 27 32.0 6.0
