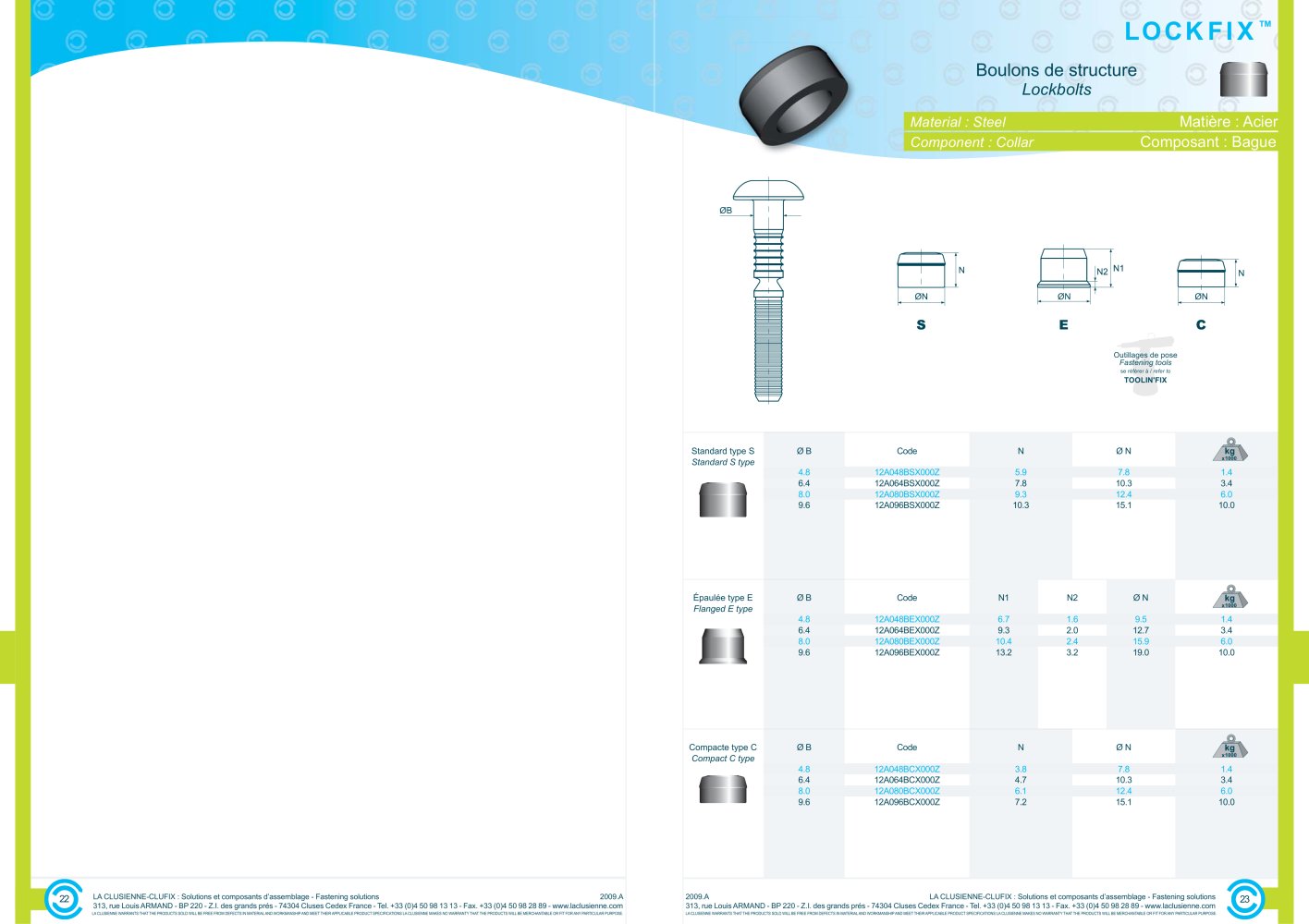

22 LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 23 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Standard type S Ø B Code N Ø N Standard S type Compacte type C Ø B Code N Ø N Compact C type Épaulée type E Ø B Code N1 N2 Ø N Flanged E type LOCKFIX™ Boulons de structure Lockbolts Material : Steel Matière : Acier Component : Collar Composant : Bague 4.8 12A048BSX000Z 5.9 7.8 1.4 6.4 12A064BSX000Z 7.8 10.3 3.4 8.0 12A080BSX000Z 9.3 12.4 6.0 9.6 12A096BSX000Z 10.3 15.1 10.0 4.8 12A048BEX000Z 6.7 1.6 9.5 1.4 6.4 12A064BEX000Z 9.3 2.0 12.7 3.4 8.0 12A080BEX000Z 10.4 2.4 15.9 6.0 9.6 12A096BEX000Z 13.2 3.2 19.0 10.0 4.8 12A048BCX000Z 3.8 7.8 1.4 6.4 12A064BCX000Z 4.7 10.3 3.4 8.0 12A080BCX000Z 6.1 12.4 6.0 9.6 12A096BCX000Z 7.2 15.1 10.0
