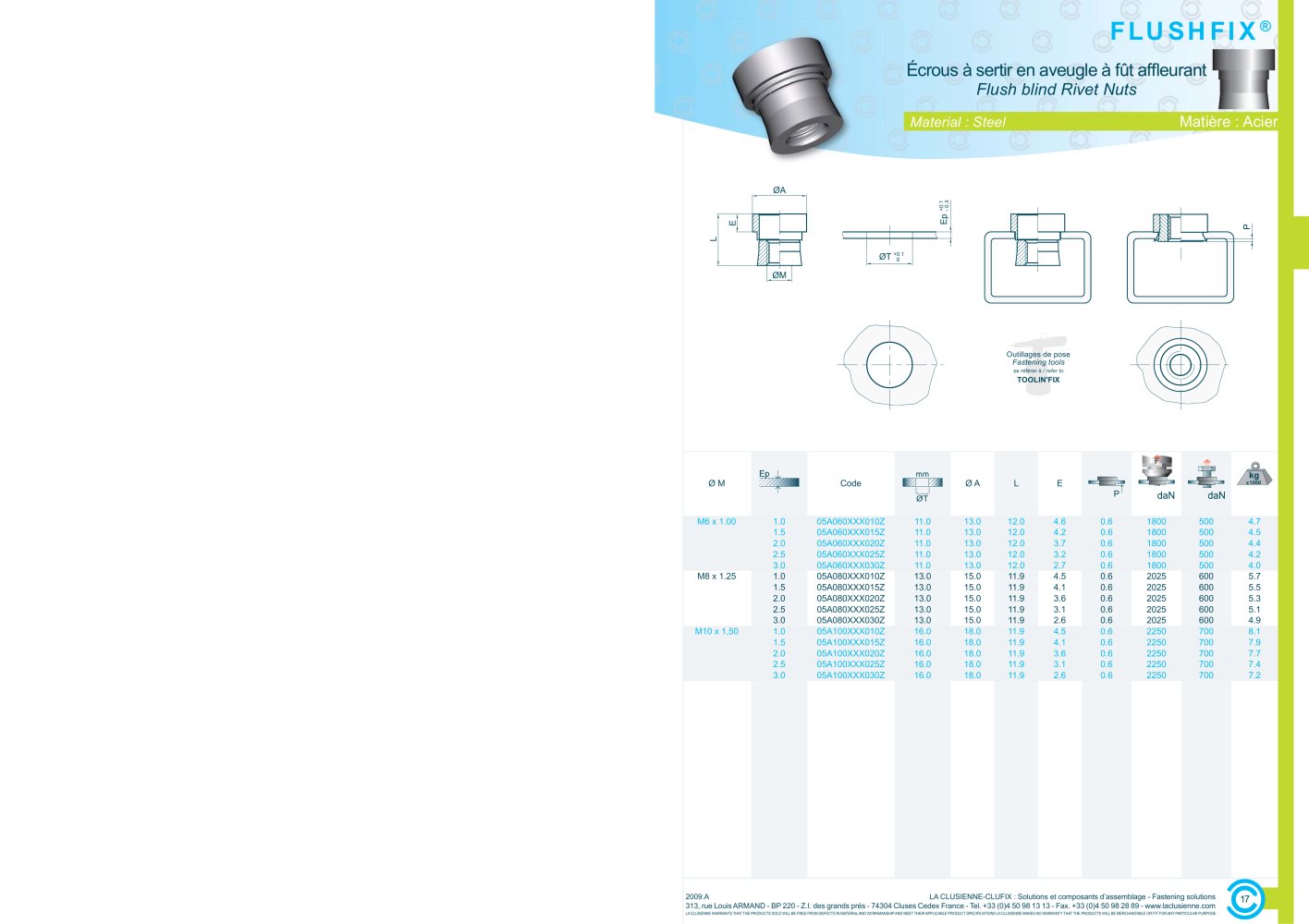

Ø M Code Ø A L E 17 Material : Steel Matière : Acier FLUSHFIX® Écrous à sertir en aveugle à fût affl eurant Flush blind Rivet Nuts Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX 2009.A LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. M6 x 1.00 1.0 05A060XXX010Z 11.0 13.0 12.0 4.6 0.6 1800 500 4.7 1.5 05A060XXX015Z 11.0 13.0 12.0 4.2 0.6 1800 500 4.5 2.0 05A060XXX020Z 11.0 13.0 12.0 3.7 0.6 1800 500 4.4 2.5 05A060XXX025Z 11.0 13.0 12.0 3.2 0.6 1800 500 4.2 3.0 05A060XXX030Z 11.0 13.0 12.0 2.7 0.6 1800 500 4.0 M8 x 1.25 1.0 05A080XXX010Z 13.0 15.0 11.9 4.5 0.6 2025 600 5.7 1.5 05A080XXX015Z 13.0 15.0 11.9 4.1 0.6 2025 600 5.5 2.0 05A080XXX020Z 13.0 15.0 11.9 3.6 0.6 2025 600 5.3 2.5 05A080XXX025Z 13.0 15.0 11.9 3.1 0.6 2025 600 5.1 3.0 05A080XXX030Z 13.0 15.0 11.9 2.6 0.6 2025 600 4.9 M10 x 1,50 1.0 05A100XXX010Z 16.0 18.0 11.9 4.5 0.6 2250 700 8.1 1.5 05A100XXX015Z 16.0 18.0 11.9 4.1 0.6 2250 700 7.9 2.0 05A100XXX020Z 16.0 18.0 11.9 3.6 0.6 2250 700 7.7 2.5 05A100XXX025Z 16.0 18.0 11.9 3.1 0.6 2250 700 7.4 3.0 05A100XXX030Z 16.0 18.0 11.9 2.6 0.6 2250 700 7.2
