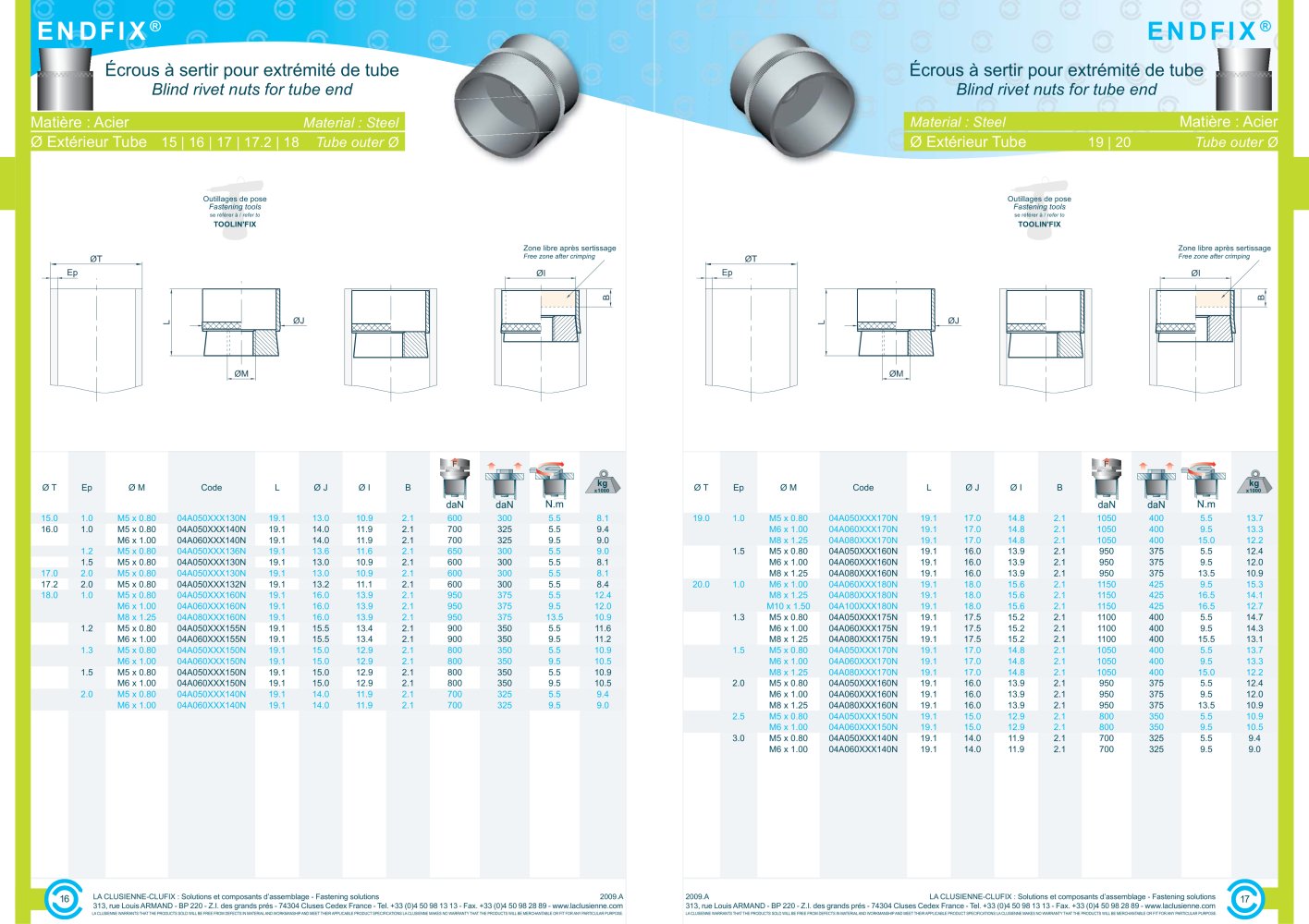

Écrous à sertir pour extrémité de tube Blind rivet nuts for tube end ENDFIX® Matière : Acier Material : Steel 16 17 Material : Steel Matière : Acier ENDFIX® Écrous à sertir pour extrémité de tube Blind rivet nuts for tube end Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Zone libre après sertissage Free zone after crimping Zone libre après sertissage Free zone after crimping Ø T Ep Ø M Code L Ø J Ø I B Ø T Ep Ø M Code L Ø J Ø I B Ø Extérieur Tube 19 | 20 Tube outer Ø 19.0 1.0 M5 x 0.80 04A050XXX170N 19.1 17.0 14.8 2.1 1050 400 5.5 13.7 M6 x 1.00 04A060XXX170N 19.1 17.0 14.8 2.1 1050 400 9.5 13.3 M8 x 1.25 04A080XXX170N 19.1 17.0 14.8 2.1 1050 400 15.0 12.2 1.5 M5 x 0.80 04A050XXX160N 19.1 16.0 13.9 2.1 950 375 5.5 12.4 M6 x 1.00 04A060XXX160N 19.1 16.0 13.9 2.1 950 375 9.5 12.0 M8 x 1.25 04A080XXX160N 19.1 16.0 13.9 2.1 950 375 13.5 10.9 20.0 1.0 M6 x 1.00 04A060XXX180N 19.1 18.0 15.6 2.1 1150 425 9.5 15.3 M8 x 1.25 04A080XXX180N 19.1 18.0 15.6 2.1 1150 425 16.5 14.1 M10 x 1.50 04A100XXX180N 19.1 18.0 15.6 2.1 1150 425 16.5 12.7 1.3 M5 x 0.80 04A050XXX175N 19.1 17.5 15.2 2.1 1100 400 5.5 14.7 M6 x 1.00 04A060XXX175N 19.1 17.5 15.2 2.1 1100 400 9.5 14.3 M8 x 1.25 04A080XXX175N 19.1 17.5 15.2 2.1 1100 400 15.5 13.1 1.5 M5 x 0.80 04A050XXX170N 19.1 17.0 14.8 2.1 1050 400 5.5 13.7 M6 x 1.00 04A060XXX170N 19.1 17.0 14.8 2.1 1050 400 9.5 13.3 M8 x 1.25 04A080XXX170N 19.1 17.0 14.8 2.1 1050 400 15.0 12.2 2.0 M5 x 0.80 04A050XXX160N 19.1 16.0 13.9 2.1 950 375 5.5 12.4 M6 x 1.00 04A060XXX160N 19.1 16.0 13.9 2.1 950 375 9.5 12.0 M8 x 1.25 04A080XXX160N 19.1 16.0 13.9 2.1 950 375 13.5 10.9 2.5 M5 x 0.80 04A050XXX150N 19.1 15.0 12.9 2.1 800 350 5.5 10.9 M6 x 1.00 04A060XXX150N 19.1 15.0 12.9 2.1 800 350 9.5 10.5 3.0 M5 x 0.80 04A050XXX140N 19.1 14.0 11.9 2.1 700 325 5.5 9.4 M6 x 1.00 04A060XXX140N 19.1 14.0 11.9 2.1 700 325 9.5 9.0 Ø Extérieur Tube 15 | 16 | 17 | 17.2 | 18 Tube outer Ø 15.0 1.0 M5 x 0.80 04A050XXX130N 19.1 13.0 10.9 2.1 600 300 5.5 8.1 16.0 1.0 M5 x 0.80 04A050XXX140N 19.1 14.0 11.9 2.1 700 325 5.5 9.4 M6 x 1.00 04A060XXX140N 19.1 14.0 11.9 2.1 700 325 9.5 9.0 1.2 M5 x 0.80 04A050XXX136N 19.1 13.6 11.6 2.1 650 300 5.5 9.0 1.5 M5 x 0.80 04A050XXX130N 19.1 13.0 10.9 2.1 600 300 5.5 8.1 17.0 2.0 M5 x 0.80 04A050XXX130N 19.1 13.0 10.9 2.1 600 300 5.5 8.1 17.2 2.0 M5 x 0.80 04A050XXX132N 19.1 13.2 11.1 2.1 600 300 5.5 8.4 18.0 1.0 M5 x 0.80 04A050XXX160N 19.1 16.0 13.9 2.1 950 375 5.5 12.4 M6 x 1.00 04A060XXX160N 19.1 16.0 13.9 2.1 950 375 9.5 12.0 M8 x 1.25 04A080XXX160N 19.1 16.0 13.9 2.1 950 375 13.5 10.9 1.2 M5 x 0.80 04A050XXX155N 19.1 15.5 13.4 2.1 900 350 5.5 11.6 M6 x 1.00 04A060XXX155N 19.1 15.5 13.4 2.1 900 350 9.5 11.2 1.3 M5 x 0.80 04A050XXX150N 19.1 15.0 12.9 2.1 800 350 5.5 10.9 M6 x 1.00 04A060XXX150N 19.1 15.0 12.9 2.1 800 350 9.5 10.5 1.5 M5 x 0.80 04A050XXX150N 19.1 15.0 12.9 2.1 800 350 5.5 10.9 M6 x 1.00 04A060XXX150N 19.1 15.0 12.9 2.1 800 350 9.5 10.5 2.0 M5 x 0.80 04A050XXX140N 19.1 14.0 11.9 2.1 700 325 5.5 9.4 M6 x 1.00 04A060XXX140N 19.1 14.0 11.9 2.1 700 325 9.5 9.0
