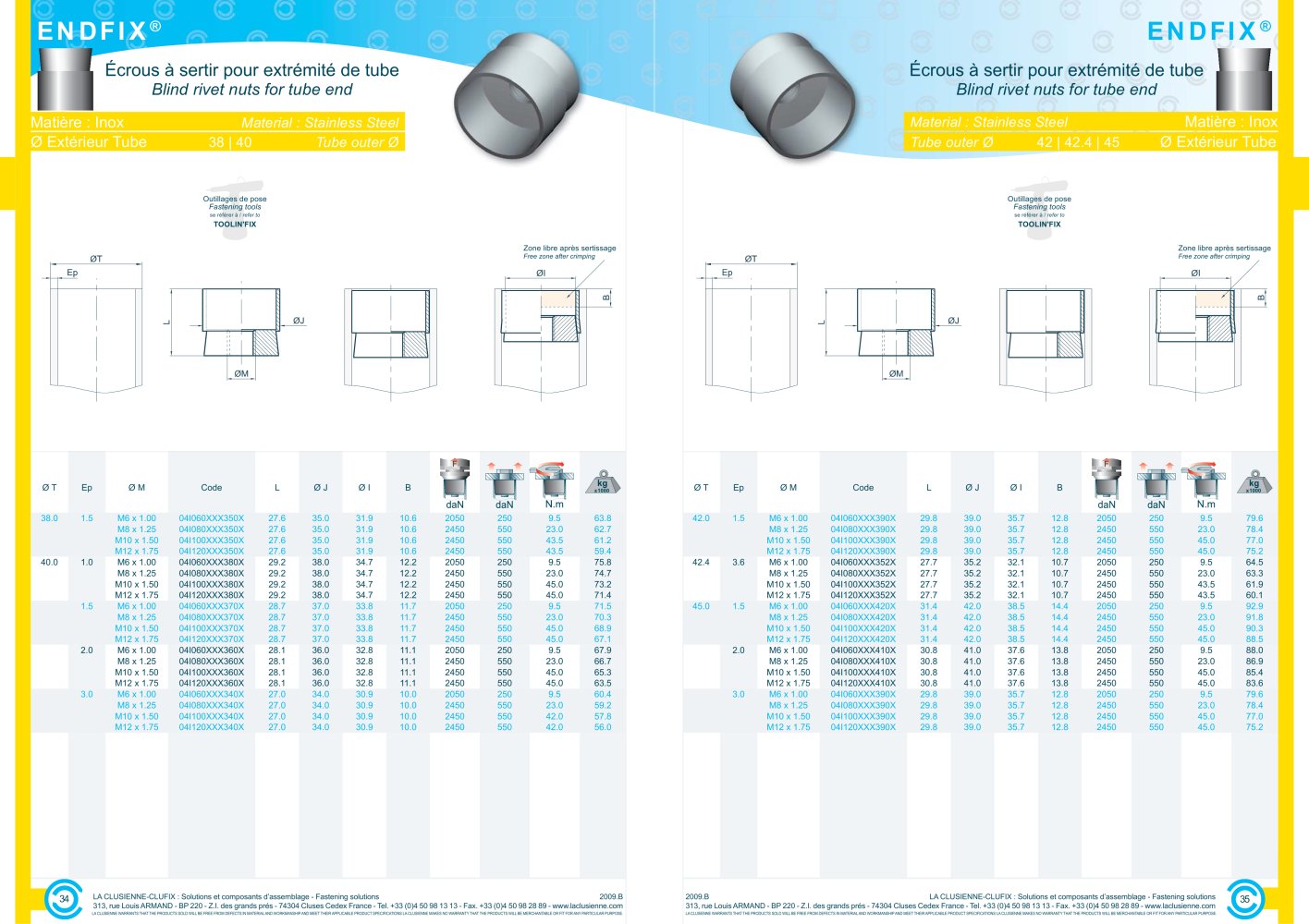

Écrous à sertir pour extrémité de tube Blind rivet nuts for tube end ENDFIX® Matière : Inox Material : Stainless Steel Ø Extérieur Tube Tube outer Ø 34 35 Material : Stainless Steel Matière : Inox Tube outer Ø Ø Extérieur Tube ENDFIX® Écrous à sertir pour extrémité de tube Blind rivet nuts for tube end Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX 2009.B LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Zone libre après sertissage Free zone after crimping Zone libre après sertissage Free zone after crimping Ø T Ep Ø M Code L Ø J Ø I B Ø T Ep Ø M Code L Ø J Ø I B 42.0 1.5 M6 x 1.00 04I060XXX390X 29.8 39.0 35.7 12.8 2050 250 9.5 79.6 M8 x 1.25 04I080XXX390X 29.8 39.0 35.7 12.8 2450 550 23.0 78.4 M10 x 1.50 04I100XXX390X 29.8 39.0 35.7 12.8 2450 550 45.0 77.0 M12 x 1.75 04I120XXX390X 29.8 39.0 35.7 12.8 2450 550 45.0 75.2 42.4 3.6 M6 x 1.00 04I060XXX352X 27.7 35.2 32.1 10.7 2050 250 9.5 64.5 M8 x 1.25 04I080XXX352X 27.7 35.2 32.1 10.7 2450 550 23.0 63.3 M10 x 1.50 04I100XXX352X 27.7 35.2 32.1 10.7 2450 550 43.5 61.9 M12 x 1.75 04I120XXX352X 27.7 35.2 32.1 10.7 2450 550 43.5 60.1 45.0 1.5 M6 x 1.00 04I060XXX420X 31.4 42.0 38.5 14.4 2050 250 9.5 92.9 M8 x 1.25 04I080XXX420X 31.4 42.0 38.5 14.4 2450 550 23.0 91.8 M10 x 1.50 04I100XXX420X 31.4 42.0 38.5 14.4 2450 550 45.0 90.3 M12 x 1.75 04I120XXX420X 31.4 42.0 38.5 14.4 2450 550 45.0 88.5 2.0 M6 x 1.00 04I060XXX410X 30.8 41.0 37.6 13.8 2050 250 9.5 88.0 M8 x 1.25 04I080XXX410X 30.8 41.0 37.6 13.8 2450 550 23.0 86.9 M10 x 1.50 04I100XXX410X 30.8 41.0 37.6 13.8 2450 550 45.0 85.4 M12 x 1.75 04I120XXX410X 30.8 41.0 37.6 13.8 2450 550 45.0 83.6 3.0 M6 x 1.00 04I060XXX390X 29.8 39.0 35.7 12.8 2050 250 9.5 79.6 M8 x 1.25 04I080XXX390X 29.8 39.0 35.7 12.8 2450 550 23.0 78.4 M10 x 1.50 04I100XXX390X 29.8 39.0 35.7 12.8 2450 550 45.0 77.0 M12 x 1.75 04I120XXX390X 29.8 39.0 35.7 12.8 2450 550 45.0 75.2 42 | 42.4 | 45 38.0 1.5 M6 x 1.00 04I060XXX350X 27.6 35.0 31.9 10.6 2050 250 9.5 63.8 M8 x 1.25 04I080XXX350X 27.6 35.0 31.9 10.6 2450 550 23.0 62.7 M10 x 1.50 04I100XXX350X 27.6 35.0 31.9 10.6 2450 550 43.5 61.2 M12 x 1.75 04I120XXX350X 27.6 35.0 31.9 10.6 2450 550 43.5 59.4 40.0 1.0 M6 x 1.00 04I060XXX380X 29.2 38.0 34.7 12.2 2050 250 9.5 75.8 M8 x 1.25 04I080XXX380X 29.2 38.0 34.7 12.2 2450 550 23.0 74.7 M10 x 1.50 04I100XXX380X 29.2 38.0 34.7 12.2 2450 550 45.0 73.2 M12 x 1.75 04I120XXX380X 29.2 38.0 34.7 12.2 2450 550 45.0 71.4 1.5 M6 x 1.00 04I060XXX370X 28.7 37.0 33.8 11.7 2050 250 9.5 71.5 M8 x 1.25 04I080XXX370X 28.7 37.0 33.8 11.7 2450 550 23.0 70.3 M10 x 1.50 04I100XXX370X 28.7 37.0 33.8 11.7 2450 550 45.0 68.9 M12 x 1.75 04I120XXX370X 28.7 37.0 33.8 11.7 2450 550 45.0 67.1 2.0 M6 x 1.00 04I060XXX360X 28.1 36.0 32.8 11.1 2050 250 9.5 67.9 M8 x 1.25 04I080XXX360X 28.1 36.0 32.8 11.1 2450 550 23.0 66.7 M10 x 1.50 04I100XXX360X 28.1 36.0 32.8 11.1 2450 550 45.0 65.3 M12 x 1.75 04I120XXX360X 28.1 36.0 32.8 11.1 2450 550 45.0 63.5 3.0 M6 x 1.00 04I060XXX340X 27.0 34.0 30.9 10.0 2050 250 9.5 60.4 M8 x 1.25 04I080XXX340X 27.0 34.0 30.9 10.0 2450 550 23.0 59.2 M10 x 1.50 04I100XXX340X 27.0 34.0 30.9 10.0 2450 550 42.0 57.8 M12 x 1.75 04I120XXX340X 27.0 34.0 30.9 10.0 2450 550 42.0 56.0 38 | 40 LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.B 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com
