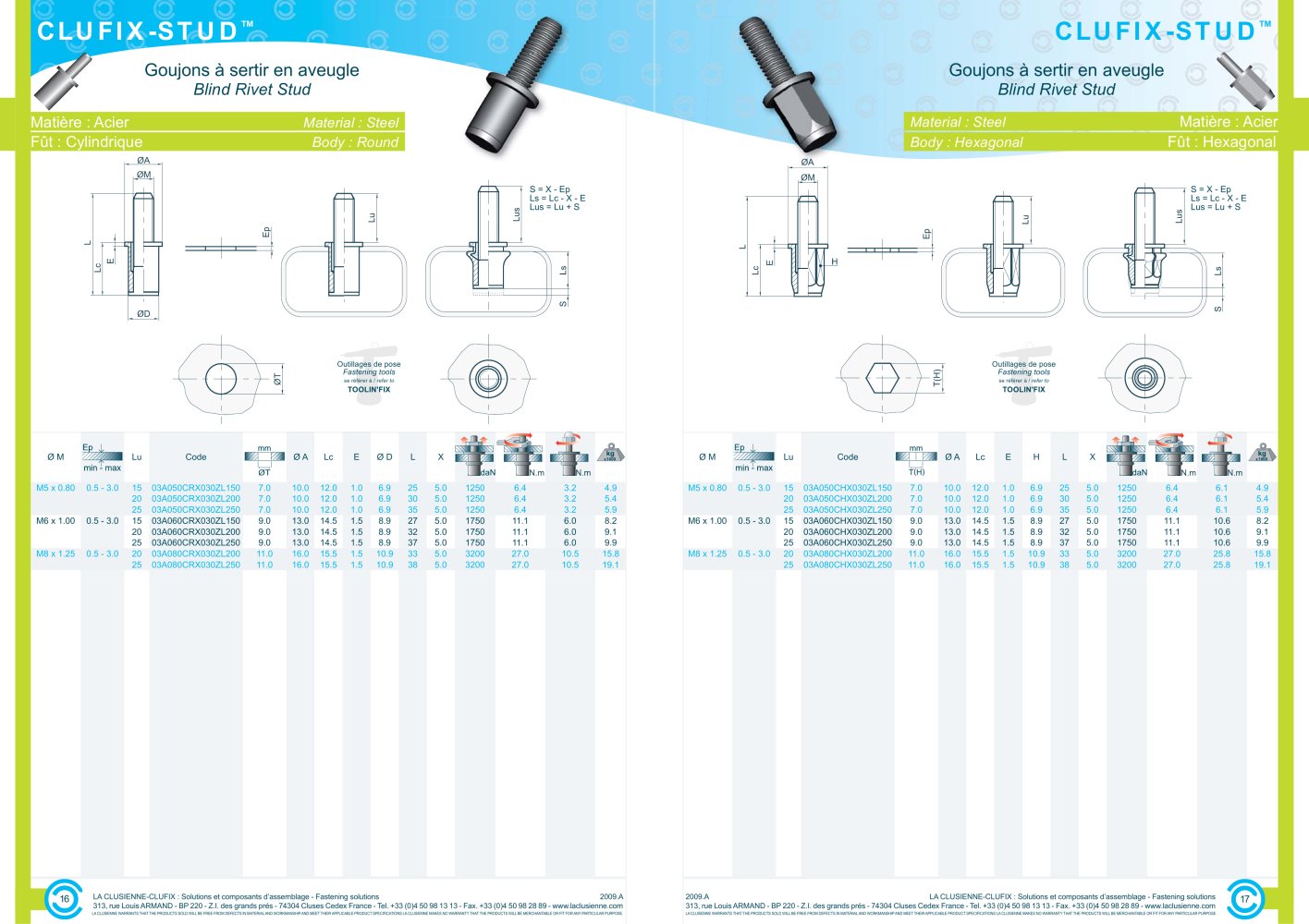

Goujons à sertir en aveugle Blind Rivet Stud CLUFIX-STUD™ Matière : Acier Material : Steel Fût : Cylindrique Body : Round 16 17 Material : Steel Matière : Acier Body : Hexagonal Fût : Hexagonal CLUFIX-STUD™ Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX Goujons à sertir en aveugle Blind Rivet Stud LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Outillages de pose Fastening tools se référer à / refer to TOOLIN'FIX S = X - Ep Ls = Lc - X - E Lus = Lu + S S = X - Ep Ls = Lc - X - E Lus = Lu + S Ø M Lu Code Ø A Lc E H L X M5 x 0.80 0.5 - 3.0 15 03A050CHX030ZL150 7.0 10.0 12.0 1.0 6.9 25 5.0 1250 6.4 6.1 4.9 20 03A050CHX030ZL200 7.0 10.0 12.0 1.0 6.9 30 5.0 1250 6.4 6.1 5.4 25 03A050CHX030ZL250 7.0 10.0 12.0 1.0 6.9 35 5.0 1250 6.4 6.1 5.9 M6 x 1.00 0.5 - 3.0 15 03A060CHX030ZL150 9.0 13.0 14.5 1.5 8.9 27 5.0 1750 11.1 10.6 8.2 20 03A060CHX030ZL200 9.0 13.0 14.5 1.5 8.9 32 5.0 1750 11.1 10.6 9.1 25 03A060CHX030ZL250 9.0 13.0 14.5 1.5 8.9 37 5.0 1750 11.1 10.6 9.9 M8 x 1.25 0.5 - 3.0 20 03A080CHX030ZL200 11.0 16.0 15.5 1.5 10.9 33 5.0 3200 27.0 25.8 15.8 25 03A080CHX030ZL250 11.0 16.0 15.5 1.5 10.9 38 5.0 3200 27.0 25.8 19.1 Ø M Lu Code Ø A Lc E Ø D L X M5 x 0.80 0.5 - 3.0 15 03A050CRX030ZL150 7.0 10.0 12.0 1.0 6.9 25 5.0 1250 6.4 3.2 4.9 20 03A050CRX030ZL200 7.0 10.0 12.0 1.0 6.9 30 5.0 1250 6.4 3.2 5.4 25 03A050CRX030ZL250 7.0 10.0 12.0 1.0 6.9 35 5.0 1250 6.4 3.2 5.9 M6 x 1.00 0.5 - 3.0 15 03A060CRX030ZL150 9.0 13.0 14.5 1.5 8.9 27 5.0 1750 11.1 6.0 8.2 20 03A060CRX030ZL200 9.0 13.0 14.5 1.5 8.9 32 5.0 1750 11.1 6.0 9.1 25 03A060CRX030ZL250 9.0 13.0 14.5 1.5 8.9 37 5.0 1750 11.1 6.0 9.9 M8 x 1.25 0.5 - 3.0 20 03A080CRX030ZL200 11.0 16.0 15.5 1.5 10.9 33 5.0 3200 27.0 10.5 15.8 25 03A080CRX030ZL250 11.0 16.0 15.5 1.5 10.9 38 5.0 3200 27.0 10.5 19.1
