CLUFIX

®

CLUFIX

®

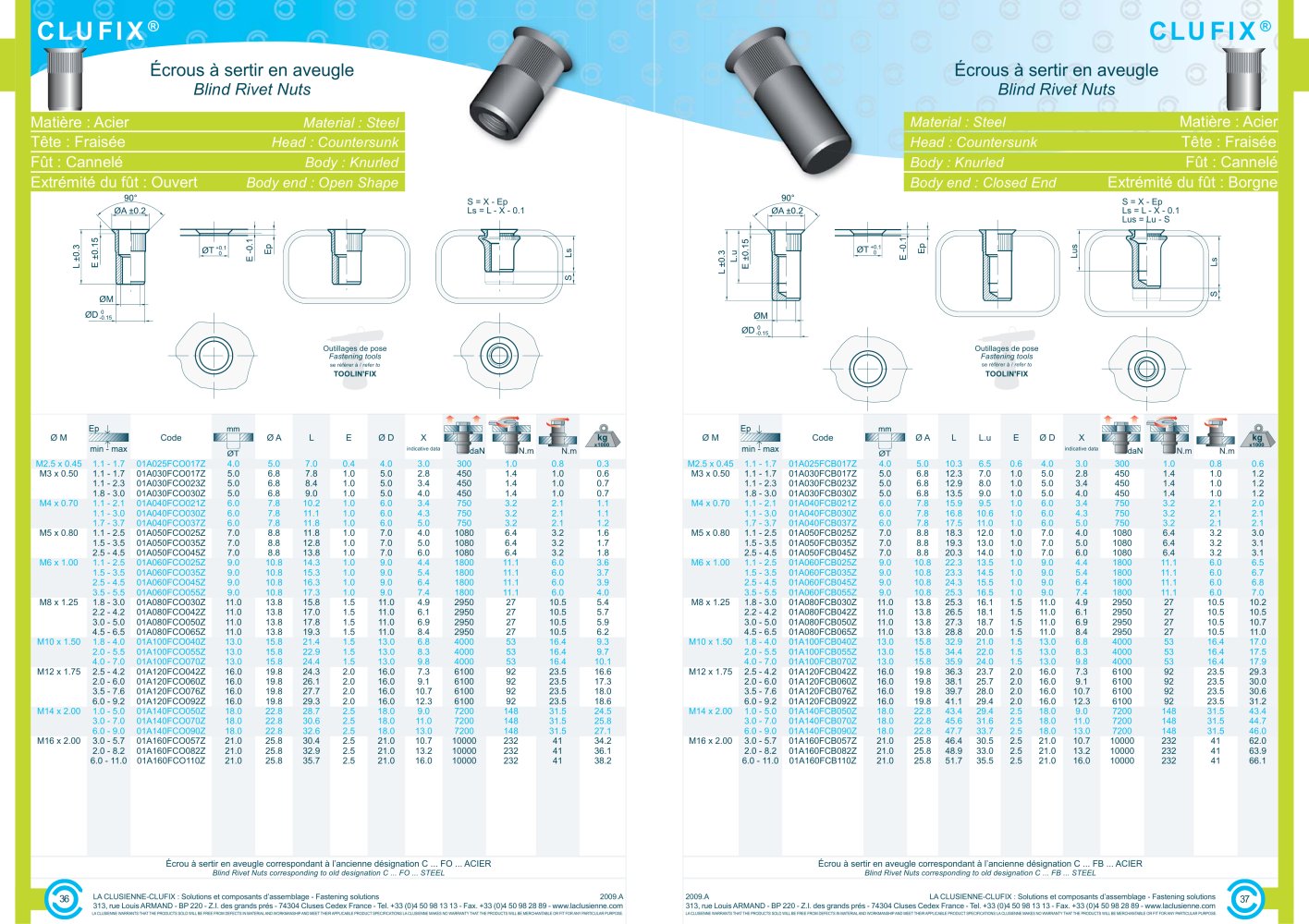

Écrous à sertir en aveugle Écrous à sertir en aveugle

Blind Rivet Nuts Blind Rivet Nuts Matière : Acier

Material : Steel Material : Steel

Matière : Acier Tête : Tête : Fraisée

Head : Countersunk Head : Head : Head : Countersunk

Tête : Fraisée Tête : Fût : Cylindrique Fût : Cannelé

Body : Knurled Body : Round Body : Round Body : Knurled

Fût : Cylindrique Fût : Cannelé Extrémité du fût : Ouvert

Body end : Open Shape Body end : Closed End

Extrémité du fût : Borgne

S = X - EpLs = L - X - 0.1 S = X - EpLs = L - X - 0.1 Lus = Lu - S

Outillages de pose Outillages de pose Fastening tools Fastening tools

se référer à / refer to se référer à / refer to

TOOLIN'FIX TOOLIN'FIX

Ø M Code Ø A L E Ø D X L Ø D Ø M Code Ø A L L.u E Ø D X E X

indicative data indicative data i n dica t i v e da t a

M2.5 x 0.45 1.1 - 1.7 01A025FCO017Z 4.0 5.0 7.0 0.4 4.0 3.0 300 1.0 0.8 0.3 M3 x 0.50 1.1 - 1.7 01A030FCO017Z 5.0 6.8 7.8 1.0 5.0 2.8 450 1.4 1.0 0.6 1.1 - 2.3 01A030FCO023Z 5.0 6.8 8.4 1.0 5.0 3.4 450 1.4 1.0 0.7 1.8 - 3.0 01A030FCO030Z 5.0 6.8 9.0 1.0 5.0 4.0 450 1.4 1.0 0.7 M4 x 0.70 1.1 - 2.1 01A040FCO021Z 6.0 7.8 10.2 1.0 6.0 3.4 750 3.2 2.1 1.1 1.1 - 3.0 01A040FCO030Z 6.0 7.8 11.1 1.0 6.0 4.3 750 3.2 2.1 1.1 1.7 - 3.7 01A040FCO037Z 6.0 7.8 11.8 1.0 6.0 5.0 750 3.2 2.1 1.2 M5 x 0.80 1.1 - 2.5 01A050FCO025Z 7.0 8.8 11.8 1.0 7.0 4.0 1080 6.4 3.2 1.6 1.5 - 3.5 01A050FCO035Z 7.0 8.8 12.8 1.0 7.0 5.0 1080 6.4 3.2 1.7 2.5 - 4.5 01A050FCO045Z 7.0 8.8 13.8 1.0 7.0 6.0 1080 6.4 3.2 1.8 M6 x 1.00 1.1 - 2.5 01A060FCO025Z 9.0 10.8 14.3 1.0 9.0 4.4 1800 11.1 6.0 3.6 1.5 - 3.5 01A060FCO035Z 9.0 10.8 15.3 1.0 9.0 5.4 1800 11.1 6.0 3.7 2.5 - 4.5 01A060FCO045Z 9.0 10.8 16.3 1.0 9.0 6.4 1800 11.1 6.0 3.9 3.5 - 5.5 01A060FCO055Z 9.0 10.8 17.3 1.0 9.0 7.4 1800 11.1 6.0 4.0 M8 x 1.25 1.8 - 3.0 01A080FCO030Z 11.0 13.8 15.8 1.5 11.0 4.9 2950 27 10.5 5.4 2.2 - 4.2 01A080FCO042Z 11.0 13.8 17.0 1.5 11.0 6.1 2950 27 10.5 5.7 3.0 - 5.0 01A080FCO050Z 11.0 13.8 17.8 1.5 11.0 6.9 2950 27 10.5 5.9 4.5 - 6.5 01A080FCO065Z 11.0 13.8 19.3 1.5 11.0 8.4 2950 27 10.5 6.2 M10 x 1.50 1.8 - 4.0 01A100FCO040Z 13.0 15.8 21.4 1.5 13.0 6.8 4000 53 16.4 9.3 2.0 - 5.5 01A100FCO055Z 13.0 15.8 22.9 1.5 13.0 8.3 4000 53 16.4 9.7 4.0 - 7.0 01A100FCO070Z 13.0 15.8 24.4 1.5 13.0 9.8 4000 53 16.4 10.1 M12 x 1.75 2.5 - 4.2 01A120FCO042Z 16.0 19.8 24.3 2.0 16.0 7.3 6100 92 23.5 16.6 2.0 - 6.0 01A120FCO060Z 16.0 19.8 26.1 2.0 16.0 9.1 6100 92 23.5 17.3 3.5 - 7.6 01A120FCO076Z 16.0 19.8 27.7 2.0 16.0 10.7 6100 92 23.5 18.0 6.0 - 9.2 01A120FCO092Z 16.0 19.8 29.3 2.0 16.0 12.3 6100 92 23.5 18.6 M14 x 2.00 1.0 - 5.0 01A140FCO050Z 18.0 22.8 28.7 2.5 18.0 9.0 7200 148 31.5 24.5 3.0 - 7.0 01A140FCO070Z 18.0 22.8 30.6 2.5 18.0 11.0 7200 148 31.5 25.8 6.0 - 9.0 01A140FCO090Z 18.0 22.8 32.6 2.5 18.0 13.0 7200 148 31.5 27.1 M16 x 2.00 3.0 - 5.7 01A160FCO057Z 21.0 25.8 30.4 2.5 21.0 10.7 10000 232 41 34.2 2.0 - 8.2 01A160FCO082Z 21.0 25.8 32.9 2.5 21.0 13.2 10000 232 41 36.1 6.0 - 11.0 01A160FCO110Z 21.0 25.8 35.7 2.5 21.0 16.0 10000 232 41 38.2 Écrou à sertir en aveugle correspondant à l’ancienne désignation C ... FO ... ACIER M2.5 x 0.45 1.1 - 1.7 01A025FCB017Z 4.0 5.0 10.3 6.5 0.6 4.0 3.0 300 1.0 0.8 0.6 M3 x 0.50 1.1 - 1.7 01A030FCB017Z 5.0 6.8 12.3 7.0 1.0 5.0 2.8 450 1.4 1.0 1.2 1.1 - 2.3 01A030FCB023Z 5.0 6.8 12.9 8.0 1.0 5.0 3.4 450 1.4 1.0 1.2 1.8 - 3.0 01A030FCB030Z 5.0 6.8 13.5 9.0 1.0 5.0 4.0 450 1.4 1.0 1.2 M4 x 0.70 1.1 - 2.1 01A040FCB021Z 6.0 7.8 15.9 9.5 1.0 6.0 3.4 750 3.2 2.1 2.0 1.1 - 3.0 01A040FCB030Z 6.0 7.8 16.8 10.6 1.0 6.0 4.3 750 3.2 2.1 2.1 1.7 - 3.7 01A040FCB037Z 6.0 7.8 17.5 11.0 1.0 6.0 5.0 750 3.2 2.1 2.1 M5 x 0.80 1.1 - 2.5 01A050FCB025Z 7.0 8.8 18.3 12.0 1.0 7.0 4.0 1080 6.4 3.2 3.0 1.5 - 3.5 01A050FCB035Z 7.0 8.8 19.3 13.0 1.0 7.0 5.0 1080 6.4 3.2 3.1 2.5 - 4.5 01A050FCB045Z 7.0 8.8 20.3 14.0 1.0 7.0 6.0 1080 6.4 3.2 3.1 M6 x 1.00 1.1 - 2.5 01A060FCB025Z 9.0 10.8 22.3 13.5 1.0 9.0 4.4 1800 11.1 6.0 6.5 1.5 - 3.5 01A060FCB035Z 9.0 10.8 23.3 14.5 1.0 9.0 5.4 1800 11.1 6.0 6.7 2.5 - 4.5 01A060FCB045Z 9.0 10.8 24.3 15.5 1.0 9.0 6.4 1800 11.1 6.0 6.8 3.5 - 5.5 01A060FCB055Z 9.0 10.8 25.3 16.5 1.0 9.0 7.4 1800 11.1 6.0 7.0 M8 x 1.25 1.8 - 3.0 01A080FCB030Z 11.0 13.8 25.3 16.1 1.5 11.0 4.9 2950 27 10.5 10.2 2.2 - 4.2 01A080FCB042Z 11.0 13.8 26.5 18.1 1.5 11.0 6.1 2950 27 10.5 10.5 3.0 - 5.0 01A080FCB050Z 11.0 13.8 27.3 18.7 1.5 11.0 6.9 2950 27 10.5 10.7 4.5 - 6.5 01A080FCB065Z 11.0 13.8 28.8 20.0 1.5 11.0 8.4 2950 27 10.5 11.0 M10 x 1.50 1.8 - 4.0 01A100FCB040Z 13.0 15.8 32.9 21.0 1.5 13.0 6.8 4000 53 16.4 17.0 2.0 - 5.5 01A100FCB055Z 13.0 15.8 34.4 22.0 1.5 13.0 8.3 4000 53 16.4 17.5 4.0 - 7.0 01A100FCB070Z 13.0 15.8 35.9 24.0 1.5 13.0 9.8 4000 53 16.4 17.9 M12 x 1.75 2.5 - 4.2 01A120FCB042Z 16.0 19.8 36.3 23.7 2.0 16.0 7.3 6100 92 23.5 29.3 2.0 - 6.0 01A120FCB060Z 16.0 19.8 38.1 25.7 2.0 16.0 9.1 6100 92 23.5 30.0 3.5 - 7.6 01A120FCB076Z 16.0 19.8 39.7 28.0 2.0 16.0 10.7 6100 92 23.5 30.6 6.0 - 9.2 01A120FCB092Z 16.0 19.8 41.1 29.4 2.0 16.0 12.3 6100 92 23.5 31.2 M14 x 2.00 1.0 - 5.0 01A140FCB050Z 18.0 22.8 43.4 29.4 2.5 18.0 9.0 7200 148 31.5 43.4 3.0 - 7.0 01A140FCB070Z 18.0 22.8 45.6 31.6 2.5 18.0 11.0 7200 148 31.5 44.7 6.0 - 9.0 01A140FCB090Z 18.0 22.8 47.7 33.7 2.5 18.0 13.0 7200 148 31.5 46.0 M16 x 2.00 3.0 - 5.7 01A160FCB057Z 21.0 25.8 46.4 30.5 2.5 21.0 10.7 10000 232 41 62.0 2.0 - 8.2 01A160FCB082Z 21.0 25.8 48.9 33.0 2.5 21.0 13.2 10000 232 41 63.9 6.0 - 11.0 01A160FCB110Z 21.0 25.8 51.7 35.5 2.5 21.0 16.0 10000 232 41 66.1 Écrou à sertir en aveugle correspondant à l’ancienne désignation C ... FB ... ACIER

Blind Rivet Nuts corresponding to old designation C ... FO ... STEEL Blind Rivet Nuts corresponding to old designation C ... FB ... STEEL

36
