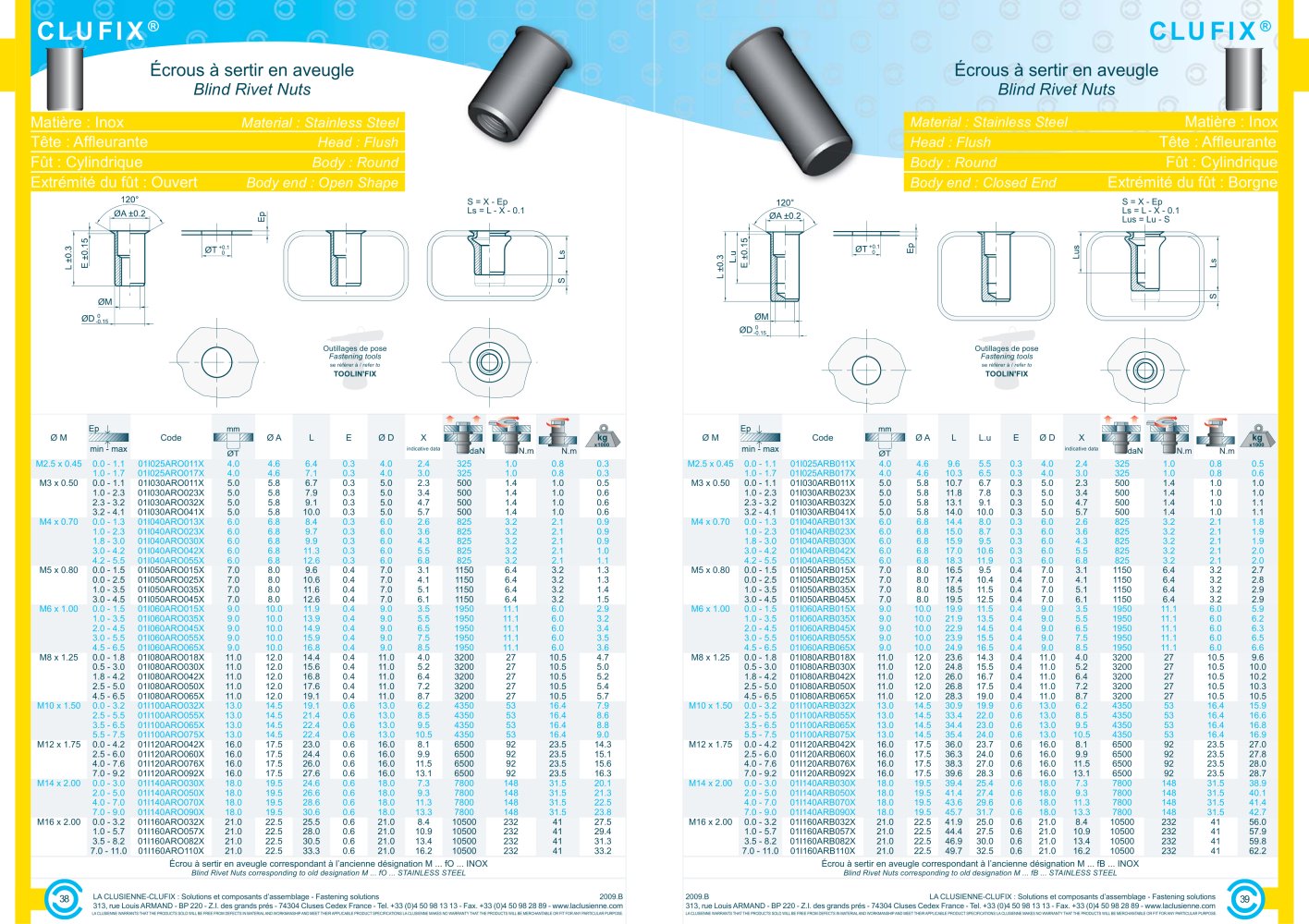

Écrous à sertir en aveugle Écrous à sertir en aveugle

Blind Rivet Nuts Blind Rivet Nuts Matière : Inox

Material : Stainless Steel Material : Stainless Steel

Matière : Inox Tête : Tête : Af eurante

Head : Flush Head : Head : Head : Flush

Tête : Af eurante Tête : Fût : Cylindrique Fût : Cylindrique

Body : Round Body : Round Body : Round Body : Round

Fût : Cylindrique Fût : Cylindrique Extrémité du fût : Ouvert

Body end : Open Shape Body end : Closed End

Extrémité du fût : Borgne

S = X - EpLs = L - X - 0.1 S = X - EpLs = L - X - 0.1 Lus = Lu - S

Outillages de pose Outillages de pose Fastening tools Fastening tools

se référer à / refer to se référer à / refer to

TOOLIN'FIX TOOLIN'FIX

Ø M Code Ø A L E Ø D X L Ø D Ø M Code Ø A L L.u E Ø D X E X

indicative data indicative data in d i ca tiv e da t a

M2.5 x 0.45 0.0 - 1.1 01I025ARO011X 4.0 4.6 6.4 0.3 4.0 2.4 325 1.0 0.8 0.3 1.0 - 1.7 01I025ARO017X 4.0 4.6 7.1 0.3 4.0 3.0 325 1.0 0.8 0.3 M3 x 0.50 0.0 - 1.1 01I030ARO011X 5.0 5.8 6.7 0.3 5.0 2.3 500 1.4 1.0 0.5 1.0 - 2.3 01I030ARO023X 5.0 5.8 7.9 0.3 5.0 3.4 500 1.4 1.0 0.6 2.3 - 3.2 01I030ARO032X 5.0 5.8 9.1 0.3 5.0 4.7 500 1.4 1.0 0.6 3.2 - 4.1 01I030ARO041X 5.0 5.8 10.0 0.3 5.0 5.7 500 1.4 1.0 0.6 M4 x 0.70 0.0 - 1.3 01I040ARO013X 6.0 6.8 8.4 0.3 6.0 2.6 825 3.2 2.1 0.9 1.0 - 2.3 01I040ARO023X 6.0 6.8 9.7 0.3 6.0 3.6 825 3.2 2.1 0.9 1.8 - 3.0 01I040ARO030X 6.0 6.8 9.9 0.3 6.0 4.3 825 3.2 2.1 0.9 3.0 - 4.2 01I040ARO042X 6.0 6.8 11.3 0.3 6.0 5.5 825 3.2 2.1 1.0 4.2 - 5.5 01I040ARO055X 6.0 6.8 12.6 0.3 6.0 6.8 825 3.2 2.1 1.1 M5 x 0.80 0.0 - 1.5 01I050ARO015X 7.0 8.0 9.6 0.4 7.0 3.1 1150 6.4 3.2 1.3 0.0 - 2.5 01I050ARO025X 7.0 8.0 10.6 0.4 7.0 4.1 1150 6.4 3.2 1.3 1.0 - 3.5 01I050ARO035X 7.0 8.0 11.6 0.4 7.0 5.1 1150 6.4 3.2 1.4 3.0 - 4.5 01I050ARO045X 7.0 8.0 12.6 0.4 7.0 6.1 1150 6.4 3.2 1.5 M6 x 1.00 0.0 - 1.5 01I060ARO015X 9.0 10.0 11.9 0.4 9.0 3.5 1950 11.1 6.0 2.9 1.0 - 3.5 01I060ARO035X 9.0 10.0 13.9 0.4 9.0 5.5 1950 11.1 6.0 3.2 2.0 - 4.5 01I060ARO045X 9.0 10.0 14.9 0.4 9.0 6.5 1950 11.1 6.0 3.4 3.0 - 5.5 01I060ARO055X 9.0 10.0 15.9 0.4 9.0 7.5 1950 11.1 6.0 3.5 4.5 - 6.5 01I060ARO065X 9.0 10.0 16.8 0.4 9.0 8.5 1950 11.1 6.0 3.6 M8 x 1.25 0.0 - 1.8 01I080ARO018X 11.0 12.0 14.4 0.4 11.0 4.0 3200 27 10.5 4.7 0.5 - 3.0 01I080ARO030X 11.0 12.0 15.6 0.4 11.0 5.2 3200 27 10.5 5.0 1.8 - 4.2 01I080ARO042X 11.0 12.0 16.8 0.4 11.0 6.4 3200 27 10.5 5.2 2.5 - 5.0 01I080ARO050X 11.0 12.0 17.6 0.4 11.0 7.2 3200 27 10.5 5.4 4.5 - 6.5 01I080ARO065X 11.0 12.0 19.1 0.4 11.0 8.7 3200 27 10.5 5.7 M10 x 1.50 0.0 - 3.2 01I100ARO032X 13.0 14.5 19.1 0.6 13.0 6.2 4350 53 16.4 7.9 2.5 - 5.5 01I100ARO055X 13.0 14.5 21.4 0.6 13.0 8.5 4350 53 16.4 8.6 3.5 - 6.5 01I100ARO065X 13.0 14.5 22.4 0.6 13.0 9.5 4350 53 16.4 8.8 5.5 - 7.5 01I100ARO075X 13.0 14.5 22.4 0.6 13.0 10.5 4350 53 16.4 9.0 M12 x 1.75 0.0 - 4.2 01I120ARO042X 16.0 17.5 23.0 0.6 16.0 8.1 6500 92 23.5 14.3 2.5 - 6.0 01I120ARO060X 16.0 17.5 24.4 0.6 16.0 9.9 6500 92 23.5 15.1 4.0 - 7.6 01I120ARO076X 16.0 17.5 26.0 0.6 16.0 11.5 6500 92 23.5 15.6 7.0 - 9.2 01I120ARO092X 16.0 17.5 27.6 0.6 16.0 13.1 6500 92 23.5 16.3 M14 x 2.00 0.0 - 3.0 01I140ARO030X 18.0 19.5 24.6 0.6 18.0 7.3 7800 148 31.5 20.1 2.0 - 5.0 01I140ARO050X 18.0 19.5 26.6 0.6 18.0 9.3 7800 148 31.5 21.3 4.0 - 7.0 01I140ARO070X 18.0 19.5 28.6 0.6 18.0 11.3 7800 148 31.5 22.5 7.0 - 9.0 01I140ARO090X 18.0 19.5 30.6 0.6 18.0 13.3 7800 148 31.5 23.8 M16 x 2.00 0.0 - 3.2 01I160ARO032X 21.0 22.5 25.5 0.6 21.0 8.4 10500 232 41 27.5 1.0 - 5.7 01I160ARO057X 21.0 22.5 28.0 0.6 21.0 10.9 10500 232 41 29.4 3.5 - 8.2 01I160ARO082X 21.0 22.5 30.5 0.6 21.0 13.4 10500 232 41 31.3 7.0 - 11.0 01I160ARO110X 21.0 22.5 33.3 0.6 21.0 16.2 10500 232 41 33.2 M2.5 x 0.45 0.0 - 1.1 01I025ARB011X 4.0 4.6 9.6 5.5 0.3 4.0 2.4 325 1.0 0.8 0.5 1.0 - 1.7 01I025ARB017X 4.0 4.6 10.3 6.5 0.3 4.0 3.0 325 1.0 0.8 0.6 M3 x 0.50 0.0 - 1.1 01I030ARB011X 5.0 5.8 10.7 6.7 0.3 5.0 2.3 500 1.4 1.0 1.0 1.0 - 2.3 01I030ARB023X 5.0 5.8 11.8 7.8 0.3 5.0 3.4 500 1.4 1.0 1.0 2.3 - 3.2 01I030ARB032X 5.0 5.8 13.1 9.1 0.3 5.0 4.7 500 1.4 1.0 1.1 3.2 - 4.1 01I030ARB041X 5.0 5.8 14.0 10.0 0.3 5.0 5.7 500 1.4 1.0 1.1 M4 x 0.70 0.0 - 1.3 01I040ARB013X 6.0 6.8 14.4 8.0 0.3 6.0 2.6 825 3.2 2.1 1.8 1.0 - 2.3 01I040ARB023X 6.0 6.8 15.0 8.7 0.3 6.0 3.6 825 3.2 2.1 1.9 1.8 - 3.0 01I040ARB030X 6.0 6.8 15.9 9.5 0.3 6.0 4.3 825 3.2 2.1 1.9 3.0 - 4.2 01I040ARB042X 6.0 6.8 17.0 10.6 0.3 6.0 5.5 825 3.2 2.1 2.0 4.2 - 5.5 01I040ARB055X 6.0 6.8 18.3 11.9 0.3 6.0 6.8 825 3.2 2.1 2.0 M5 x 0.80 0.0 - 1.5 01I050ARB015X 7.0 8.0 16.5 9.5 0.4 7.0 3.1 1150 6.4 3.2 2.7 0.0 - 2.5 01I050ARB025X 7.0 8.0 17.4 10.4 0.4 7.0 4.1 1150 6.4 3.2 2.8 1.0 - 3.5 01I050ARB035X 7.0 8.0 18.5 11.5 0.4 7.0 5.1 1150 6.4 3.2 2.9 3.0 - 4.5 01I050ARB045X 7.0 8.0 19.5 12.5 0.4 7.0 6.1 1150 6.4 3.2 2.9 M6 x 1.00 0.0 - 1.5 01I060ARB015X 9.0 10.0 19.9 11.5 0.4 9.0 3.5 1950 11.1 6.0 5.9 1.0 - 3.5 01I060ARB035X 9.0 10.0 21.9 13.5 0.4 9.0 5.5 1950 11.1 6.0 6.2 2.0 - 4.5 01I060ARB045X 9.0 10.0 22.9 14.5 0.4 9.0 6.5 1950 11.1 6.0 6.3 3.0 - 5.5 01I060ARB055X 9.0 10.0 23.9 15.5 0.4 9.0 7.5 1950 11.1 6.0 6.5 4.5 - 6.5 01I060ARB065X 9.0 10.0 24.9 16.5 0.4 9.0 8.5 1950 11.1 6.0 6.6 M8 x 1.25 0.0 - 1.8 01I080ARB018X 11.0 12.0 23.6 14.3 0.4 11.0 4.0 3200 27 10.5 9.6 0.5 - 3.0 01I080ARB030X 11.0 12.0 24.8 15.5 0.4 11.0 5.2 3200 27 10.5 10.0 1.8 - 4.2 01I080ARB042X 11.0 12.0 26.0 16.7 0.4 11.0 6.4 3200 27 10.5 10.2 2.5 - 5.0 01I080ARB050X 11.0 12.0 26.8 17.5 0.4 11.0 7.2 3200 27 10.5 10.3 4.5 - 6.5 01I080ARB065X 11.0 12.0 28.3 19.0 0.4 11.0 8.7 3200 27 10.5 10.5 M10 x 1.50 0.0 - 3.2 01I100ARB032X 13.0 14.5 30.9 19.9 0.6 13.0 6.2 4350 53 16.4 15.9 2.5 - 5.5 01I100ARB055X 13.0 14.5 33.4 22.0 0.6 13.0 8.5 4350 53 16.4 16.6 3.5 - 6.5 01I100ARB065X 13.0 14.5 34.4 23.0 0.6 13.0 9.5 4350 53 16.4 16.8 5.5 - 7.5 01I100ARB075X 13.0 14.5 35.4 24.0 0.6 13.0 10.5 4350 53 16.4 16.9 M12 x 1.75 0.0 - 4.2 01I120ARB042X 16.0 17.5 36.0 23.7 0.6 16.0 8.1 6500 92 23.5 27.0 2.5 - 6.0 01I120ARB060X 16.0 17.5 36.3 24.0 0.6 16.0 9.9 6500 92 23.5 27.8 4.0 - 7.6 01I120ARB076X 16.0 17.5 38.3 27.0 0.6 16.0 11.5 6500 92 23.5 28.0 7.0 - 9.2 01I120ARB092X 16.0 17.5 39.6 28.3 0.6 16.0 13.1 6500 92 23.5 28.7 M14 x 2.00 0.0 - 3.0 01I140ARB030X 18.0 19.5 39.4 25.4 0.6 18.0 7.3 7800 148 31.5 38.9 2.0 - 5.0 01I140ARB050X 18.0 19.5 41.4 27.4 0.6 18.0 9.3 7800 148 31.5 40.1 4.0 - 7.0 01I140ARB070X 18.0 19.5 43.6 29.6 0.6 18.0 11.3 7800 148 31.5 41.4 7.0 - 9.0 01I140ARB090X 18.0 19.5 45.7 31.7 0.6 18.0 13.3 7800 148 31.5 42.7 M16 x 2.00 0.0 - 3.2 01I160ARB032X 21.0 22.5 41.9 25.0 0.6 21.0 8.4 10500 232 41 56.0 1.0 - 5.7 01I160ARB057X 21.0 22.5 44.4 27.5 0.6 21.0 10.9 10500 232 41 57.9 3.5 - 8.2 01I160ARB082X 21.0 22.5 46.9 30.0 0.6 21.0 13.4 10500 232 41 59.8 7.0 - 11.0 01I160ARB110X 21.0 22.5 49.7 32.5 0.6 21.0 16.2 10500 232 41 62.2 Écrou à sertir en aveugle correspondant à l’ancienne désignation M ... fO ... INOX Écrou à sertir en aveugle correspondant à l’ancienne désignation M ... fB ... INOX

Blind Rivet Nuts corresponding to old designation M ... fO ... STAINLESS STEEL Blind Rivet Nuts corresponding to old designation M ... fB ... STAINLESS STEEL

38
