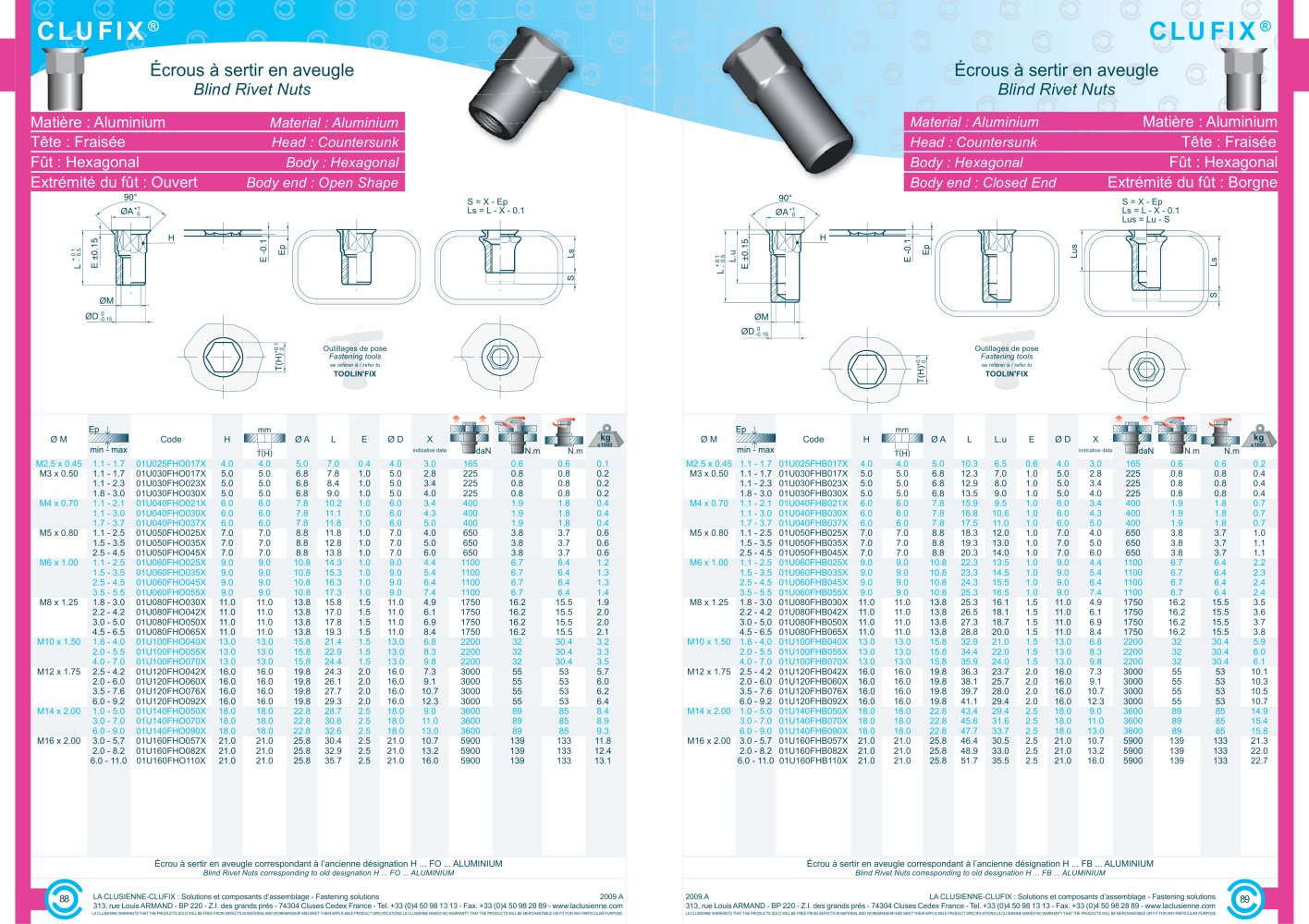

CLUFIX

®

CLUFIX

®

Écrous à sertir en aveugle Écrous à sertir en aveugle

Blind Rivet Nuts Blind Rivet Nuts Matière : Aluminium

Material : Aluminium Material : Aluminium

Matière : Aluminium Tête : Fraisée

Head : Countersunk Head : Countersunk

Tête : Fraisée Fût : Hexagonal

Body : Hexagonal Body : Hexagonal

Fût : Hexagonal Extrémité du fût : Ouvert

Body end : Open Shape Body end : Closed End

Extrémité du fût : Borgne

S = X - EpLs = L - X - 0.1 Ø M Code H Ø A L E Ø D X S = X - EpLs = L - X - 0.1 Lus = Lu - S Ø M Code H Ø A L L.u E Ø D X

Outillages de pose Outillages de pose Fastening tools Fastening tools

se référer à / refer to se référer à / refer to

TOOLIN'FIX TOOLIN'FIX

H Ø A E X H Ø A L.u Ø D

indicative data in d i ca tiv e da t a indicative data

M2.5 x 0.45 1.1 - 1.7 01U025FHO017X 4.0 4.0 5.0 7.0 0.4 4.0 3.0 165 0.6 0.6 0.1 M3 x 0.50 1.1 - 1.7 01U030FHO017X 5.0 5.0 6.8 7.8 1.0 5.0 2.8 225 0.8 0.8 0.2 1.1 - 2.3 01U030FHO023X 5.0 5.0 6.8 8.4 1.0 5.0 3.4 225 0.8 0.8 0.2 1.8 - 3.0 01U030FHO030X 5.0 5.0 6.8 9.0 1.0 5.0 4.0 225 0.8 0.8 0.2 M4 x 0.70 1.1 - 2.1 01U040FHO021X 6.0 6.0 7.8 10.2 1.0 6.0 3.4 400 1.9 1.8 0.4 1.1 - 3.0 01U040FHO030X 6.0 6.0 7.8 11.1 1.0 6.0 4.3 400 1.9 1.8 0.4 1.7 - 3.7 01U040FHO037X 6.0 6.0 7.8 11.8 1.0 6.0 5.0 400 1.9 1.8 0.4 M5 x 0.80 1.1 - 2.5 01U050FHO025X 7.0 7.0 8.8 11.8 1.0 7.0 4.0 650 3.8 3.7 0.6 1.5 - 3.5 01U050FHO035X 7.0 7.0 8.8 12.8 1.0 7.0 5.0 650 3.8 3.7 0.6 2.5 - 4.5 01U050FHO045X 7.0 7.0 8.8 13.8 1.0 7.0 6.0 650 3.8 3.7 0.6 M6 x 1.00 1.1 - 2.5 01U060FHO025X 9.0 9.0 10.8 14.3 1.0 9.0 4.4 1100 6.7 6.4 1.2 1.5 - 3.5 01U060FHO035X 9.0 9.0 10.8 15.3 1.0 9.0 5.4 1100 6.7 6.4 1.3 2.5 - 4.5 01U060FHO045X 9.0 9.0 10.8 16.3 1.0 9.0 6.4 1100 6.7 6.4 1.3 3.5 - 5.5 01U060FHO055X 9.0 9.0 10.8 17.3 1.0 9.0 7.4 1100 6.7 6.4 1.4 M8 x 1.25 1.8 - 3.0 01U080FHO030X 11.0 11.0 13.8 15.8 1.5 11.0 4.9 1750 16.2 15.5 1.9 2.2 - 4.2 01U080FHO042X 11.0 11.0 13.8 17.0 1.5 11.0 6.1 1750 16.2 15.5 2.0 3.0 - 5.0 01U080FHO050X 11.0 11.0 13.8 17.8 1.5 11.0 6.9 1750 16.2 15.5 2.0 4.5 - 6.5 01U080FHO065X 11.0 11.0 13.8 19.3 1.5 11.0 8.4 1750 16.2 15.5 2.1 M10 x 1.50 1.8 - 4.0 01U100FHO040X 13.0 13.0 15.8 21.4 1.5 13.0 6.8 2200 32 30.4 3.2 2.0 - 5.5 01U100FHO055X 13.0 13.0 15.8 22.9 1.5 13.0 8.3 2200 32 30.4 3.3 4.0 - 7.0 01U100FHO070X 13.0 13.0 15.8 24.4 1.5 13.0 9.8 2200 32 30.4 3.5 M12 x 1.75 2.5 - 4.2 01U120FHO042X 16.0 16.0 19.8 24.3 2.0 16.0 7.3 3000 55 53 5.7 2.0 - 6.0 01U120FHO060X 16.0 16.0 19.8 26.1 2.0 16.0 9.1 3000 55 53 6.0 3.5 - 7.6 01U120FHO076X 16.0 16.0 19.8 27.7 2.0 16.0 10.7 3000 55 53 6.2 6.0 - 9.2 01U120FHO092X 16.0 16.0 19.8 29.3 2.0 16.0 12.3 3000 55 53 6.4 M14 x 2.00 1.0 - 5.0 01U140FHO050X 18.0 18.0 22.8 28.7 2.5 18.0 9.0 3600 89 85 8.4 3.0 - 7.0 01U140FHO070X 18.0 18.0 22.8 30.6 2.5 18.0 11.0 3600 89 85 8.9 6.0 - 9.0 01U140FHO090X 18.0 18.0 22.8 32.6 2.5 18.0 13.0 3600 89 85 9.3 M16 x 2.00 3.0 - 5.7 01U160FHO057X 21.0 21.0 25.8 30.4 2.5 21.0 10.7 5900 139 133 11.8 2.0 - 8.2 01U160FHO082X 21.0 21.0 25.8 32.9 2.5 21.0 13.2 5900 139 133 12.4 6.0 - 11.0 01U160FHO110X 21.0 21.0 25.8 35.7 2.5 21.0 16.0 5900 139 133 13.1 M2.5 x 0.45 1.1 - 1.7 01U025FHB017X 4.0 4.0 5.0 10.3 6.5 0.6 4.0 3.0 165 0.6 0.6 0.2 M3 x 0.50 1.1 - 1.7 01U030FHB017X 5.0 5.0 6.8 12.3 7.0 1.0 5.0 2.8 225 0.8 0.8 0.4 1.1 - 2.3 01U030FHB023X 5.0 5.0 6.8 12.9 8.0 1.0 5.0 3.4 225 0.8 0.8 0.4 1.8 - 3.0 01U030FHB030X 5.0 5.0 6.8 13.5 9.0 1.0 5.0 4.0 225 0.8 0.8 0.4 M4 x 0.70 1.1 - 2.1 01U040FHB021X 6.0 6.0 7.8 15.9 9.5 1.0 6.0 3.4 400 1.9 1.8 0.7 1.1 - 3.0 01U040FHB030X 6.0 6.0 7.8 16.8 10.6 1.0 6.0 4.3 400 1.9 1.8 0.7 1.7 - 3.7 01U040FHB037X 6.0 6.0 7.8 17.5 11.0 1.0 6.0 5.0 400 1.9 1.8 0.7 M5 x 0.80 1.1 - 2.5 01U050FHB025X 7.0 7.0 8.8 18.3 12.0 1.0 7.0 4.0 650 3.8 3.7 1.0 1.5 - 3.5 01U050FHB035X 7.0 7.0 8.8 19.3 13.0 1.0 7.0 5.0 650 3.8 3.7 1.1 2.5 - 4.5 01U050FHB045X 7.0 7.0 8.8 20.3 14.0 1.0 7.0 6.0 650 3.8 3.7 1.1 M6 x 1.00 1.1 - 2.5 01U060FHB025X 9.0 9.0 10.8 22.3 13.5 1.0 9.0 4.4 1100 6.7 6.4 2.2 1.5 - 3.5 01U060FHB035X 9.0 9.0 10.8 23.3 14.5 1.0 9.0 5.4 1100 6.7 6.4 2.3 2.5 - 4.5 01U060FHB045X 9.0 9.0 10.8 24.3 15.5 1.0 9.0 6.4 1100 6.7 6.4 2.4 3.5 - 5.5 01U060FHB055X 9.0 9.0 10.8 25.3 16.5 1.0 9.0 7.4 1100 6.7 6.4 2.4 M8 x 1.25 1.8 - 3.0 01U080FHB030X 11.0 11.0 13.8 25.3 16.1 1.5 11.0 4.9 1750 16.2 15.5 3.5 2.2 - 4.2 01U080FHB042X 11.0 11.0 13.8 26.5 18.1 1.5 11.0 6.1 1750 16.2 15.5 3.6 3.0 - 5.0 01U080FHB050X 11.0 11.0 13.8 27.3 18.7 1.5 11.0 6.9 1750 16.2 15.5 3.7 4.5 - 6.5 01U080FHB065X 11.0 11.0 13.8 28.8 20.0 1.5 11.0 8.4 1750 16.2 15.5 3.8 M10 x 1.50 1.8 - 4.0 01U100FHB040X 13.0 13.0 15.8 32.9 21.0 1.5 13.0 6.8 2200 32 30.4 5.9 2.0 - 5.5 01U100FHB055X 13.0 13.0 15.8 34.4 22.0 1.5 13.0 8.3 2200 32 30.4 6.0 4.0 - 7.0 01U100FHB070X 13.0 13.0 15.8 35.9 24.0 1.5 13.0 9.8 2200 32 30.4 6.1 M12 x 1.75 2.5 - 4.2 01U120FHB042X 16.0 16.0 19.8 36.3 23.7 2.0 16.0 7.3 3000 55 53 10.1 2.0 - 6.0 01U120FHB060X 16.0 16.0 19.8 38.1 25.7 2.0 16.0 9.1 3000 55 53 10.3 3.5 - 7.6 01U120FHB076X 16.0 16.0 19.8 39.7 28.0 2.0 16.0 10.7 3000 55 53 10.5 6.0 - 9.2 01U120FHB092X 16.0 16.0 19.8 41.1 29.4 2.0 16.0 12.3 3000 55 53 10.7 M14 x 2.00 1.0 - 5.0 01U140FHB050X 18.0 18.0 22.8 43.4 29.4 2.5 18.0 9.0 3600 89 85 14.9 3.0 - 7.0 01U140FHB070X 18.0 18.0 22.8 45.6 31.6 2.5 18.0 11.0 3600 89 85 15.4 6.0 - 9.0 01U140FHB090X 18.0 18.0 22.8 47.7 33.7 2.5 18.0 13.0 3600 89 85 15.8 M16 x 2.00 3.0 - 5.7 01U160FHB057X 21.0 21.0 25.8 46.4 30.5 2.5 21.0 10.7 5900 139 133 21.3 2.0 - 8.2 01U160FHB082X 21.0 21.0 25.8 48.9 33.0 2.5 21.0 13.2 5900 139 133 22.0 6.0 - 11.0 01U160FHB110X 21.0 21.0 25.8 51.7 35.5 2.5 21.0 16.0 5900 139 133 22.7 Écrou à sertir en aveugle correspondant à l’ancienne désignation H ... FO ... ALUMINIUM Écrou à sertir en aveugle correspondant à l’ancienne désignation H ... FB ... ALUMINIUM

Blind Rivet Nuts corresponding to old designation H ... FO ... ALUMINIUM Blind Rivet Nuts corresponding to old designation H ... FB ... ALUMINIUM

88

LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com

89

LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE.
