CLUFIX

®

CLUFIX

®

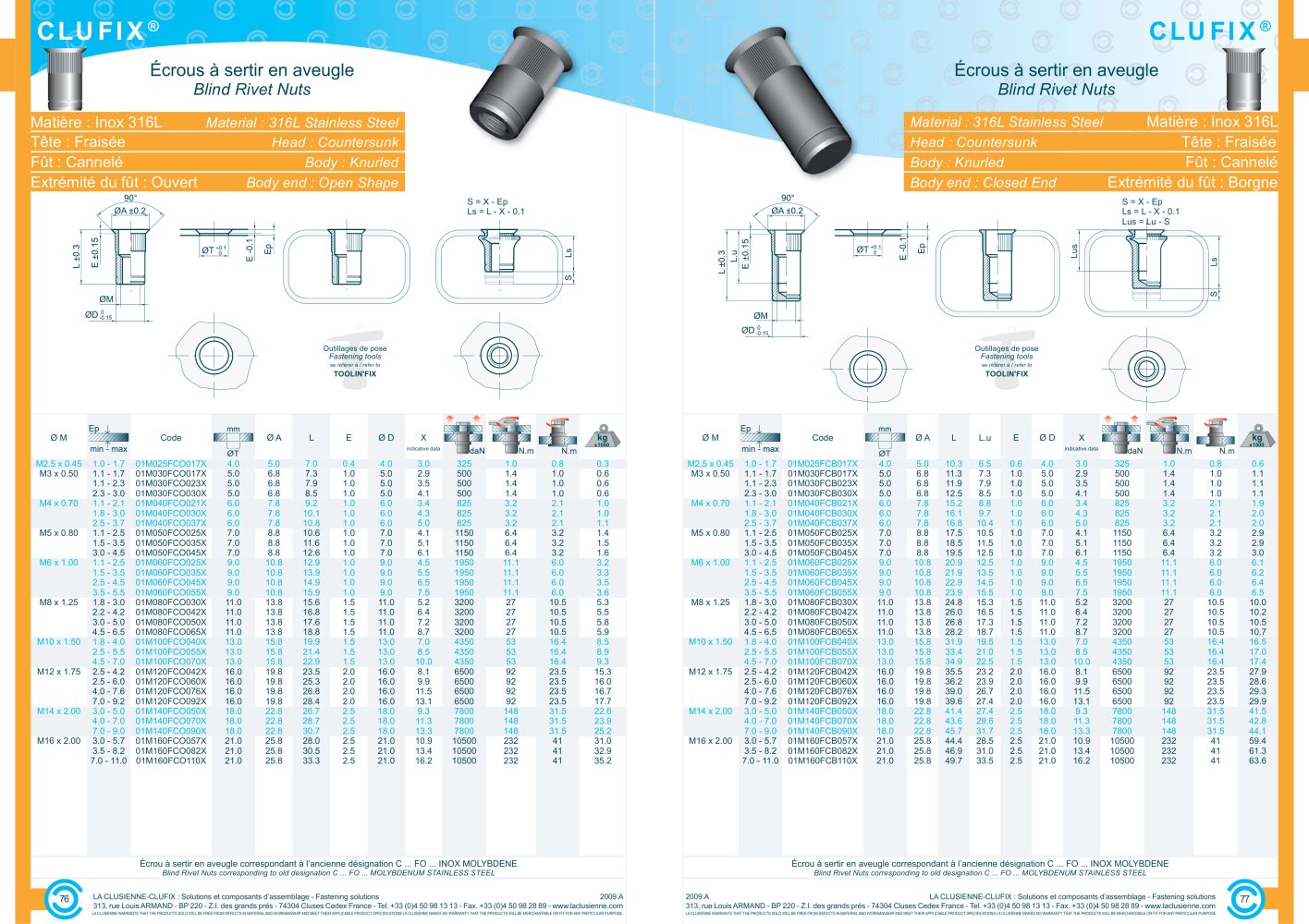

Écrous à sertir en aveugle Écrous à sertir en aveugle

Blind Rivet Nuts Blind Rivet Nuts Matière : Inox 316L

Material : 316L Stainless Steel Material : 316L Stainless Steel

Matière : Inox 316L Tête : Tête : Fraisée

Head : Countersunk Head : Head : Head : Countersunk

Tête : Fraisée Tête : Fût : Cylindrique Fût : Cannelé

Body : Knurled Body : Round Body : Round Body : Knurled

Fût : Cylindrique Fût : Cannelé Extrémité du fût : Ouvert

Body end : Open Shape Body end : Closed End

Extrémité du fût : Borgne

S = X - EpLs = L - X - 0.1 S = X - EpLs = L - X - 0.1 Lus = Lu - S

Outillages de pose Outillages de pose Fastening tools Fastening tools

se référer à / refer to se référer à / refer to

TOOLIN'FIX TOOLIN'FIX

Ø M Code Ø A L E Ø D X L Ø D Ø M Code Ø A L L.u E Ø D X E X

indicative data indicative data i n di cat i ve d ata

M2.5 x 0.45 1.0 - 1.7 01M025FCO017X 4.0 5.0 7.0 0.4 4.0 3.0 325 1.0 0.8 0.3 M3 x 0.50 1.1 - 1.7 01M030FCO017X 5.0 6.8 7.3 1.0 5.0 2.9 500 1.4 1.0 0.6 1.1 - 2.3 01M030FCO023X 5.0 6.8 7.9 1.0 5.0 3.5 500 1.4 1.0 0.6 2.3 - 3.0 01M030FCO030X 5.0 6.8 8.5 1.0 5.0 4.1 500 1.4 1.0 0.6 M4 x 0.70 1.1 - 2.1 01M040FCO021X 6.0 7.8 9.2 1.0 6.0 3.4 825 3.2 2.1 1.0 1.8 - 3.0 01M040FCO030X 6.0 7.8 10.1 1.0 6.0 4.3 825 3.2 2.1 1.0 2.5 - 3.7 01M040FCO037X 6.0 7.8 10.8 1.0 6.0 5.0 825 3.2 2.1 1.1 M5 x 0.80 1.1 - 2.5 01M050FCO025X 7.0 8.8 10.6 1.0 7.0 4.1 1150 6.4 3.2 1.4 1.5 - 3.5 01M050FCO035X 7.0 8.8 11.6 1.0 7.0 5.1 1150 6.4 3.2 1.5 3.0 - 4.5 01M050FCO045X 7.0 8.8 12.6 1.0 7.0 6.1 1150 6.4 3.2 1.6 M6 x 1.00 1.1 - 2.5 01M060FCO025X 9.0 10.8 12.9 1.0 9.0 4.5 1950 11.1 6.0 3.2 1.5 - 3.5 01M060FCO035X 9.0 10.8 13.9 1.0 9.0 5.5 1950 11.1 6.0 3.3 2.5 - 4.5 01M060FCO045X 9.0 10.8 14.9 1.0 9.0 6.5 1950 11.1 6.0 3.5 3.5 - 5.5 01M060FCO055X 9.0 10.8 15.9 1.0 9.0 7.5 1950 11.1 6.0 3.6 M8 x 1.25 1.8 - 3.0 01M080FCO030X 11.0 13.8 15.6 1.5 11.0 5.2 3200 27 10.5 5.3 2.2 - 4.2 01M080FCO042X 11.0 13.8 16.8 1.5 11.0 6.4 3200 27 10.5 5.5 3.0 - 5.0 01M080FCO050X 11.0 13.8 17.6 1.5 11.0 7.2 3200 27 10.5 5.8 4.5 - 6.5 01M080FCO065X 11.0 13.8 18.8 1.5 11.0 8.7 3200 27 10.5 5.9 M10 x 1.50 1.8 - 4.0 01M100FCO040X 13.0 15.8 19.9 1.5 13.0 7.0 4350 53 16.4 8.5 2.5 - 5.5 01M100FCO055X 13.0 15.8 21.4 1.5 13.0 8.5 4350 53 16.4 8.9 4.5 - 7.0 01M100FCO070X 13.0 15.8 22.9 1.5 13.0 10.0 4350 53 16.4 9.3 M12 x 1.75 2.5 - 4.2 01M120FCO042X 16.0 19.8 23.5 2.0 16.0 8.1 6500 92 23.5 15.3 2.5 - 6.0 01M120FCO060X 16.0 19.8 25.3 2.0 16.0 9.9 6500 92 23.5 16.0 4.0 - 7.6 01M120FCO076X 16.0 19.8 26.8 2.0 16.0 11.5 6500 92 23.5 16.7 7.0 - 9.2 01M120FCO092X 16.0 19.8 28.4 2.0 16.0 13.1 6500 92 23.5 17.7 M14 x 2.00 3.0 - 5.0 01M140FCO050X 18.0 22.8 26.7 2.5 18.0 9.3 7800 148 31.5 22.6 4.0 - 7.0 01M140FCO070X 18.0 22.8 28.7 2.5 18.0 11.3 7800 148 31.5 23.9 7.0 - 9.0 01M140FCO090X 18.0 22.8 30.7 2.5 18.0 13.3 7800 148 31.5 25.2 M16 x 2.00 3.0 - 5.7 01M160FCO057X 21.0 25.8 28.0 2.5 21.0 10.9 10500 232 41 31.0 3.5 - 8.2 01M160FCO082X 21.0 25.8 30.5 2.5 21.0 13.4 10500 232 41 32.9 7.0 - 11.0 01M160FCO110X 21.0 25.8 33.3 2.5 21.0 16.2 10500 232 41 35.2 Écrou à sertir en aveugle correspondant à l’ancienne désignation C ... FO ... INOX MOLYBDENE M2.5 x 0.45 1.0 - 1.7 01M025FCB017X 4.0 5.0 10.3 6.5 0.6 4.0 3.0 325 1.0 0.8 0.6 M3 x 0.50 1.1 - 1.7 01M030FCB017X 5.0 6.8 11.3 7.3 1.0 5.0 2.9 500 1.4 1.0 1.1 1.1 - 2.3 01M030FCB023X 5.0 6.8 11.9 7.9 1.0 5.0 3.5 500 1.4 1.0 1.1 2.3 - 3.0 01M030FCB030X 5.0 6.8 12.5 8.5 1.0 5.0 4.1 500 1.4 1.0 1.1 M4 x 0.70 1.1 - 2.1 01M040FCB021X 6.0 7.8 15.2 8.8 1.0 6.0 3.4 825 3.2 2.1 1.9 1.8 - 3.0 01M040FCB030X 6.0 7.8 16.1 9.7 1.0 6.0 4.3 825 3.2 2.1 2.0 2.5 - 3.7 01M040FCB037X 6.0 7.8 16.8 10.4 1.0 6.0 5.0 825 3.2 2.1 2.0 M5 x 0.80 1.1 - 2.5 01M050FCB025X 7.0 8.8 17.5 10.5 1.0 7.0 4.1 1150 6.4 3.2 2.9 1.5 - 3.5 01M050FCB035X 7.0 8.8 18.5 11.5 1.0 7.0 5.1 1150 6.4 3.2 2.9 3.0 - 4.5 01M050FCB045X 7.0 8.8 19.5 12.5 1.0 7.0 6.1 1150 6.4 3.2 3.0 M6 x 1.00 1.1 - 2.5 01M060FCB025X 9.0 10.8 20.9 12.5 1.0 9.0 4.5 1950 11.1 6.0 6.1 1.5 - 3.5 01M060FCB035X 9.0 10.8 21.9 13.5 1.0 9.0 5.5 1950 11.1 6.0 6.2 2.5 - 4.5 01M060FCB045X 9.0 10.8 22.9 14.5 1.0 9.0 6.5 1950 11.1 6.0 6.4 3.5 - 5.5 01M060FCB055X 9.0 10.8 23.9 15.5 1.0 9.0 7.5 1950 11.1 6.0 6.5 M8 x 1.25 1.8 - 3.0 01M080FCB030X 11.0 13.8 24.8 15.3 1.5 11.0 5.2 3200 27 10.5 10.0 2.2 - 4.2 01M080FCB042X 11.0 13.8 26.0 16.5 1.5 11.0 6.4 3200 27 10.5 10.2 3.0 - 5.0 01M080FCB050X 11.0 13.8 26.8 17.3 1.5 11.0 7.2 3200 27 10.5 10.5 4.5 - 6.5 01M080FCB065X 11.0 13.8 28.2 18.7 1.5 11.0 8.7 3200 27 10.5 10.7 M10 x 1.50 1.8 - 4.0 01M100FCB040X 13.0 15.8 31.9 19.5 1.5 13.0 7.0 4350 53 16.4 16.5 2.5 - 5.5 01M100FCB055X 13.0 15.8 33.4 21.0 1.5 13.0 8.5 4350 53 16.4 17.0 4.5 - 7.0 01M100FCB070X 13.0 15.8 34.9 22.5 1.5 13.0 10.0 4350 53 16.4 17.4 M12 x 1.75 2.5 - 4.2 01M120FCB042X 16.0 19.8 35.5 23.2 2.0 16.0 8.1 6500 92 23.5 27.9 2.5 - 6.0 01M120FCB060X 16.0 19.8 36.2 23.9 2.0 16.0 9.9 6500 92 23.5 28.6 4.0 - 7.6 01M120FCB076X 16.0 19.8 39.0 26.7 2.0 16.0 11.5 6500 92 23.5 29.3 7.0 - 9.2 01M120FCB092X 16.0 19.8 39.6 27.4 2.0 16.0 13.1 6500 92 23.5 29.9 M14 x 2.00 3.0 - 5.0 01M140FCB050X 18.0 22.8 41.4 27.4 2.5 18.0 9.3 7800 148 31.5 41.5 4.0 - 7.0 01M140FCB070X 18.0 22.8 43.6 29.6 2.5 18.0 11.3 7800 148 31.5 42.8 7.0 - 9.0 01M140FCB090X 18.0 22.8 45.7 31.7 2.5 18.0 13.3 7800 148 31.5 44.1 M16 x 2.00 3.0 - 5.7 01M160FCB057X 21.0 25.8 44.4 28.5 2.5 21.0 10.9 10500 232 41 59.4 3.5 - 8.2 01M160FCB082X 21.0 25.8 46.9 31.0 2.5 21.0 13.4 10500 232 41 61.3 7.0 - 11.0 01M160FCB110X 21.0 25.8 49.7 33.5 2.5 21.0 16.2 10500 232 41 63.6 Écrou à sertir en aveugle correspondant à l’ancienne désignation C ... FO ... INOX MOLYBDENE

Blind Rivet Nuts corresponding to old designation C ... FO ... MOLYBDENUM STAINLESS STEEL Blind Rivet Nuts corresponding to old designation C ... FO ... MOLYBDENUM STAINLESS STEEL

76

LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2009.A313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2009.A LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com

77

LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE.
