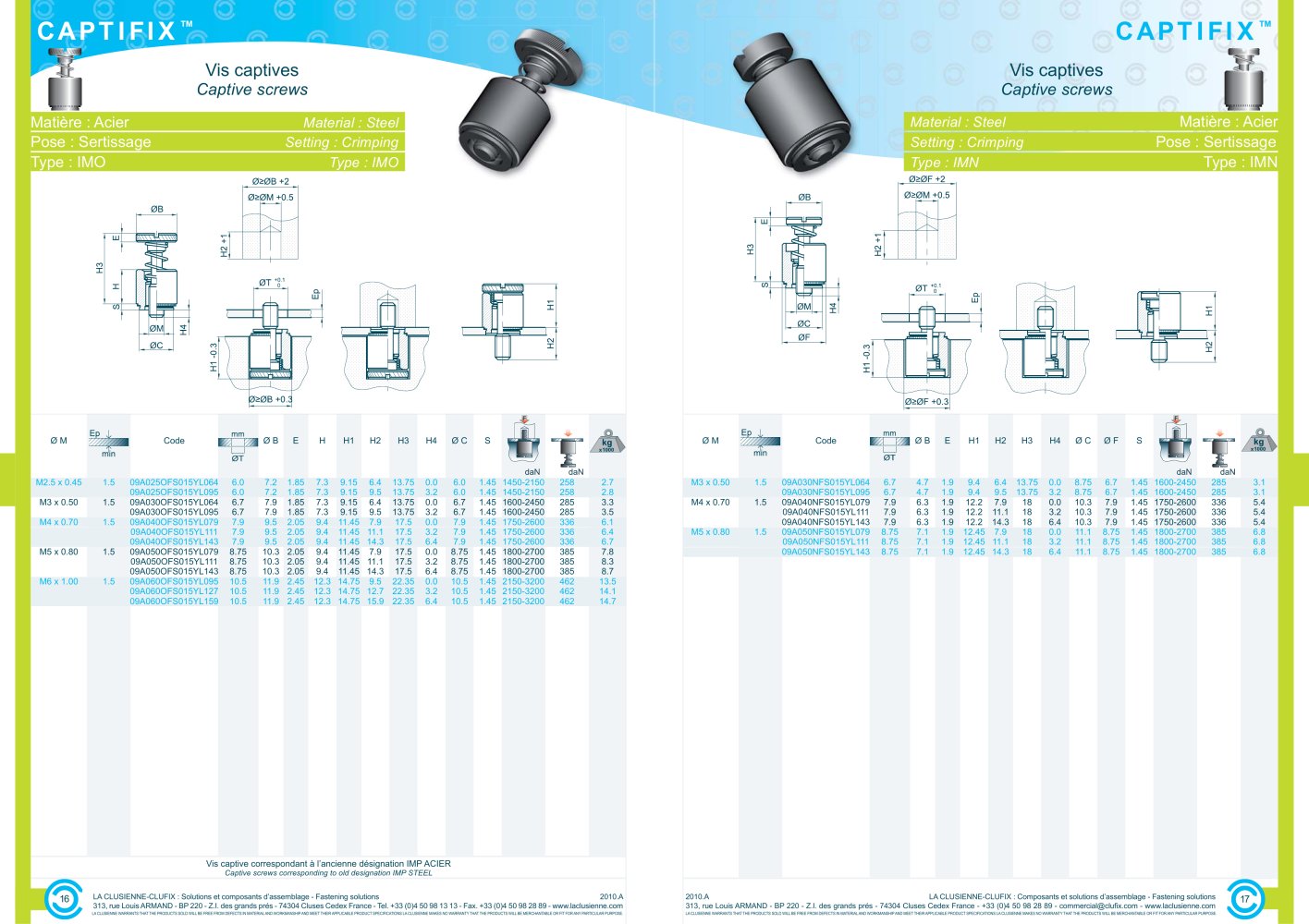

Vis captives Captive screws CAPTIFIX™ Matière : Acier Material : Steel Pose : Sertissage Setting : Crimping 16 17 Type : IMO Type : IMO Material : Steel Matière : Acier Setting : Crimping Pose : Sertissage Type : IMN Type : IMN CAPTIFIX™ Vis captives Captive screws LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2010.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2010.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Vis captive correspondant à l’ancienne désignation IMP ACIER Captive screws corresponding to old designation IMP STEEL Ø M Code Ø B E H H1 H2 H3 H4 Ø C S Ø M Code Ø B E H1 H2 H3 H4 Ø C Ø F S M3 x 0.50 1.5 09A030NFS015YL064 6.7 4.7 1.9 9.4 6.4 13.75 0.0 8.75 6.7 1.45 1600-2450 285 3.1 09A030NFS015YL095 6.7 4.7 1.9 9.4 9.5 13.75 3.2 8.75 6.7 1.45 1600-2450 285 3.1 M4 x 0.70 1.5 09A040NFS015YL079 7.9 6.3 1.9 12.2 7.9 18 0.0 10.3 7.9 1.45 1750-2600 336 5.4 09A040NFS015YL111 7.9 6.3 1.9 12.2 11.1 18 3.2 10.3 7.9 1.45 1750-2600 336 5.4 09A040NFS015YL143 7.9 6.3 1.9 12.2 14.3 18 6.4 10.3 7.9 1.45 1750-2600 336 5.4 M5 x 0.80 1.5 09A050NFS015YL079 8.75 7.1 1.9 12.45 7.9 18 0.0 11.1 8.75 1.45 1800-2700 385 6.8 09A050NFS015YL111 8.75 7.1 1.9 12.45 11.1 18 3.2 11.1 8.75 1.45 1800-2700 385 6.8 09A050NFS015YL143 8.75 7.1 1.9 12.45 14.3 18 6.4 11.1 8.75 1.45 1800-2700 385 6.8 M2.5 x 0.45 1.5 09A025OFS015YL064 6.0 7.2 1.85 7.3 9.15 6.4 13.75 0.0 6.0 1.45 1450-2150 258 2.7 09A025OFS015YL095 6.0 7.2 1.85 7.3 9.15 9.5 13.75 3.2 6.0 1.45 1450-2150 258 2.8 M3 x 0.50 1.5 09A030OFS015YL064 6.7 7.9 1.85 7.3 9.15 6.4 13.75 0.0 6.7 1.45 1600-2450 285 3.3 09A030OFS015YL095 6.7 7.9 1.85 7.3 9.15 9.5 13.75 3.2 6.7 1.45 1600-2450 285 3.5 M4 x 0.70 1.5 09A040OFS015YL079 7.9 9.5 2.05 9.4 11.45 7.9 17.5 0.0 7.9 1.45 1750-2600 336 6.1 09A040OFS015YL111 7.9 9.5 2.05 9.4 11.45 11.1 17.5 3.2 7.9 1.45 1750-2600 336 6.4 09A040OFS015YL143 7.9 9.5 2.05 9.4 11.45 14.3 17.5 6.4 7.9 1.45 1750-2600 336 6.7 M5 x 0.80 1.5 09A050OFS015YL079 8.75 10.3 2.05 9.4 11.45 7.9 17.5 0.0 8.75 1.45 1800-2700 385 7.8 09A050OFS015YL111 8.75 10.3 2.05 9.4 11.45 11.1 17.5 3.2 8.75 1.45 1800-2700 385 8.3 09A050OFS015YL143 8.75 10.3 2.05 9.4 11.45 14.3 17.5 6.4 8.75 1.45 1800-2700 385 8.7 M6 x 1.00 1.5 09A060OFS015YL095 10.5 11.9 2.45 12.3 14.75 9.5 22.35 0.0 10.5 1.45 2150-3200 462 13.5 09A060OFS015YL127 10.5 11.9 2.45 12.3 14.75 12.7 22.35 3.2 10.5 1.45 2150-3200 462 14.1 09A060OFS015YL159 10.5 11.9 2.45 12.3 14.75 15.9 22.35 6.4 10.5 1.45 2150-3200 462 14.7
