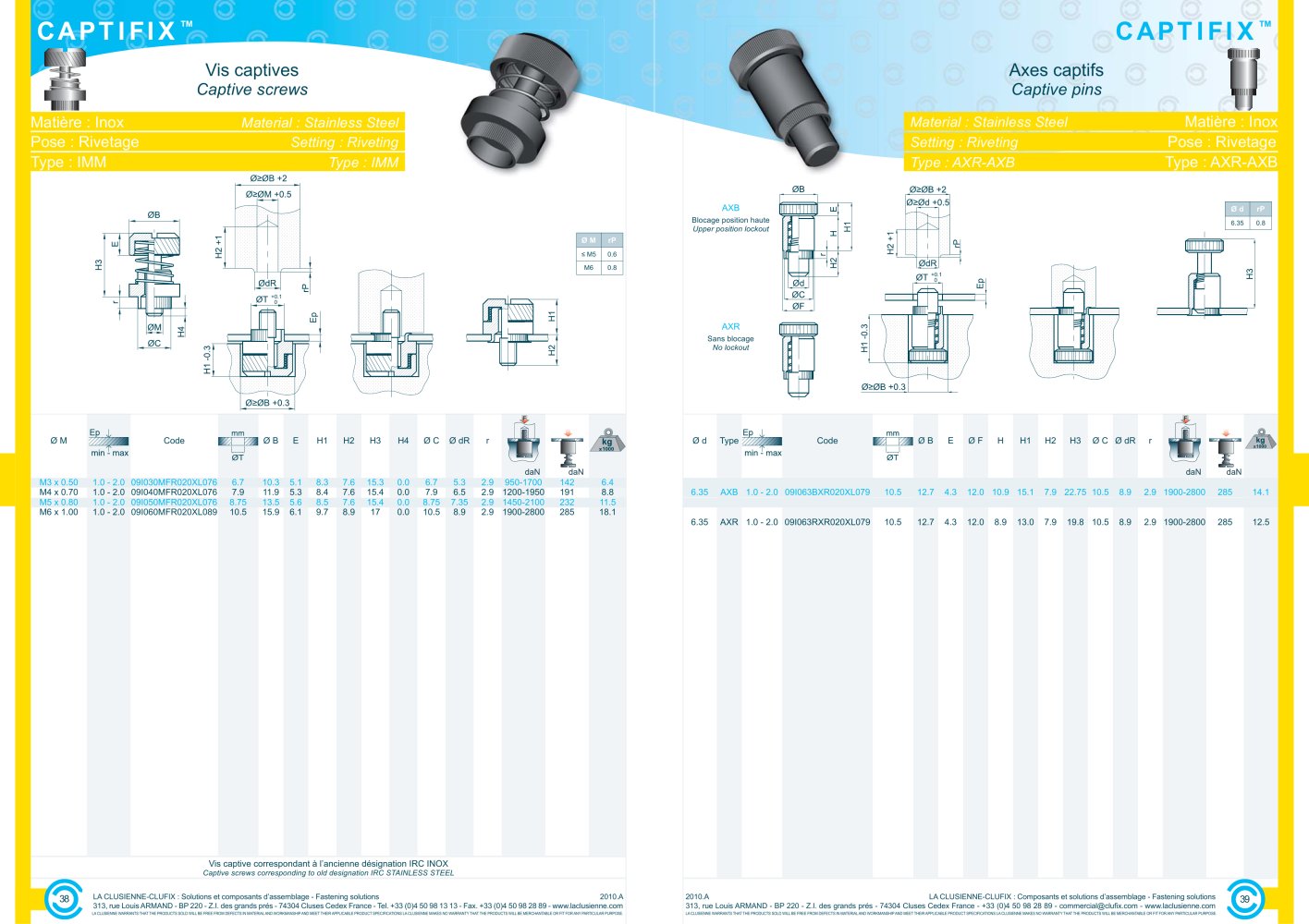

Vis captives Captive screws CAPTIFIX™ Matière : Inox Material : Stainless Steel Pose : Rivetage Setting : Riveting 38 39 Type : IMM Type : IMM Material : Stainless Steel Matière : Inox Setting : Riveting Pose : Rivetage Type : AXR-AXB Type : AXR-AXB CAPTIFIX™ Axes captifs Captive pins LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2010.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2010.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. Vis captive correspondant à l’ancienne désignation IRC INOX Captive screws corresponding to old designation IRC STAINLESS STEEL AXB AXR Blocage position haute Upper position lockout Sans blocage No lockout Ø M rP M5 0.6 M6 0.8 Ø d rP 6.35 0.8 Ø M Code Ø B E H1 H2 H3 H4 Ø C Ø dR r Ø d Type Code Ø B E Ø F H H1 H2 H3 Ø C Ø dR r 6.35 AXB 1.0 - 2.0 09I063BXR020XL079 10.5 12.7 4.3 12.0 10.9 15.1 7.9 22.75 10.5 8.9 2.9 1900-2800 285 14.1 6.35 AXR 1.0 - 2.0 09I063RXR020XL079 10.5 12.7 4.3 12.0 8.9 13.0 7.9 19.8 10.5 8.9 2.9 1900-2800 285 12.5 M3 x 0.50 1.0 - 2.0 09I030MFR020XL076 6.7 10.3 5.1 8.3 7.6 15.3 0.0 6.7 5.3 2.9 950-1700 142 6.4 M4 x 0.70 1.0 - 2.0 09I040MFR020XL076 7.9 11.9 5.3 8.4 7.6 15.4 0.0 7.9 6.5 2.9 1200-1950 191 8.8 M5 x 0.80 1.0 - 2.0 09I050MFR020XL076 8.75 13.5 5.6 8.5 7.6 15.4 0.0 8.75 7.35 2.9 1450-2100 232 11.5 M6 x 1.00 1.0 - 2.0 09I060MFR020XL089 10.5 15.9 6.1 9.7 8.9 17 0.0 10.5 8.9 2.9 1900-2800 285 18.1
