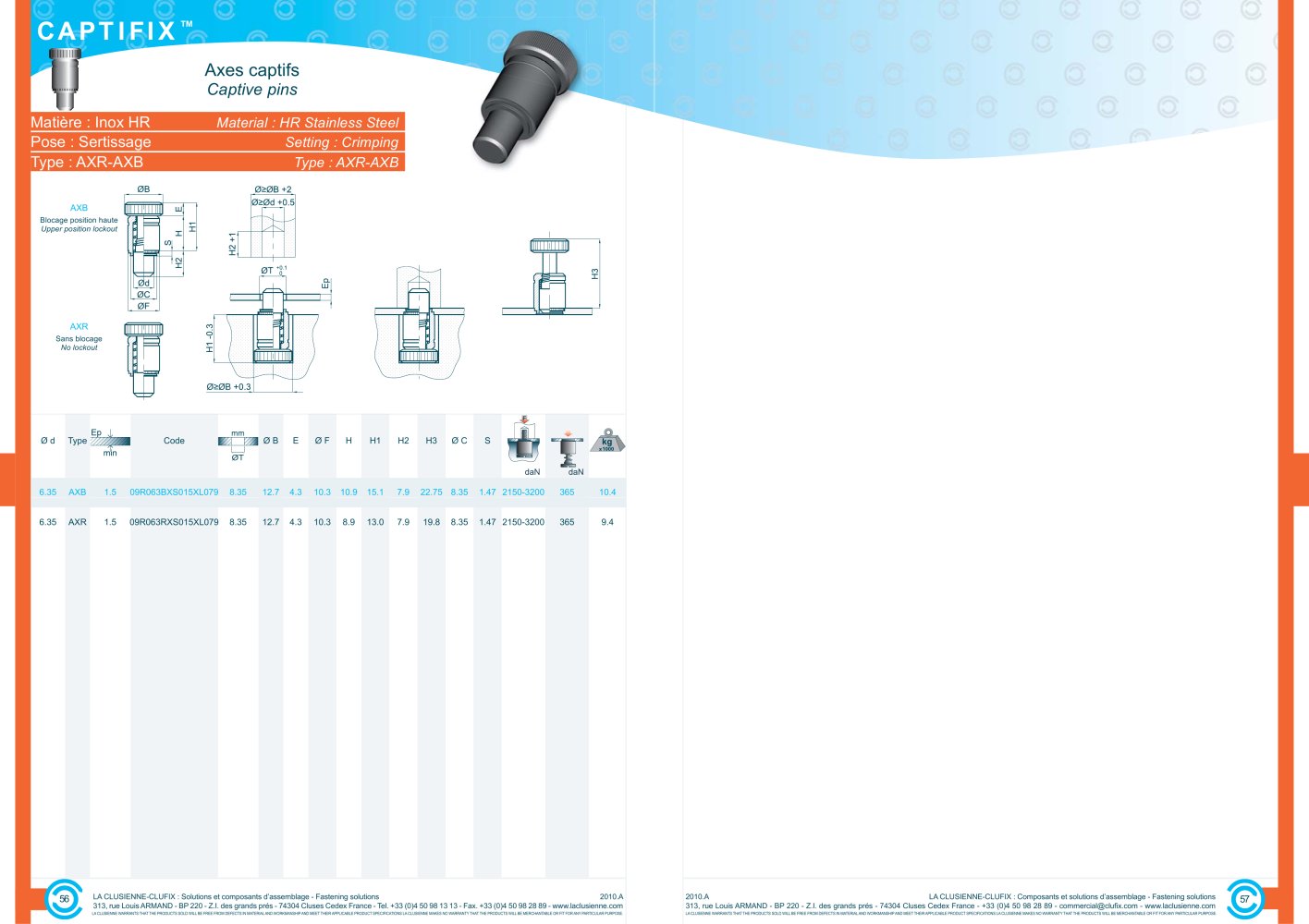

Axes captifs Captive pins CAPTIFIX™ Matière : Inox HR Material : HR Stainless Steel Pose : Sertissage Setting : Crimping 56 57 Type : AXR-AXB Type : AXR-AXB LA CLUSIENNE-CLUFIX : Solutions et composants d’assemblage - Fastening solutions 2010.A 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - Tel. +33 (0)4 50 98 13 13 - Fax. +33 (0)4 50 98 28 89 - www.laclusienne.com 2010.A LA CLUSIENNE-CLUFIX : Composants et solutions d’assemblage - Fastening solutions 313, rue Louis ARMAND - BP 220 - Z.I. des grands prés - 74304 Cluses Cedex France - +33 (0)4 50 98 28 89 - commercial@clufi x.com - www.laclusienne.com LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. LA CLUSIENNE WARRANTS THAT THE PRODUCTS SOLD WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP AND MEET THEIR APPLICABLE PRODUCT SPECIFICATIONS LA CLUSIENNE MAKES NO WARRANTY THAT THE PRODUCTS WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. AXB AXR Blocage position haute Upper position lockout Sans blocage No lockout Ø d Type Code Ø B E Ø F H H1 H2 H3 Ø C S 6.35 AXB 1.5 09R063BXS015XL079 8.35 12.7 4.3 10.3 10.9 15.1 7.9 22.75 8.35 1.47 2150-3200 365 10.4 6.35 AXR 1.5 09R063RXS015XL079 8.35 12.7 4.3 10.3 8.9 13.0 7.9 19.8 8.35 1.47 2150-3200 365 9.4
