LOOP/PFC/PSC Tester 4140 - 2 / 2 Pages

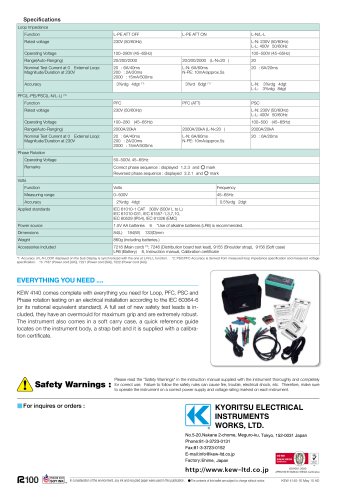

Spcifications Loop Impdance Function L-PE ATT OFF L-PE ATT ON L-N/L-L Rated voltage 230V (50/60Hz) L-N: 230V (50/60Hz) L-L: 400V (50/60Hz) Operating Voltage 100~280V (45~65Hz) 100~500V (45~65Hz) Range(Auto-Ranging) 20/200/2000Q 20/200/2000Q (L-N<20Q) 20Q Nominal Test Current at 0Q External Loop: Magnitude/Duration at 230V 20Q: 6A/40ms 200Q: 2A/20ms 2000Q: 15mA/500ms L-N: 6A/60ms N-PE: 10mA/approx.5s 20Q: 6A/20ms Accuracy ±3%rdg±4dgt ±3%rd±6dgt L-N: ±3%rdg±4dgt L-L: ±3%rdg±8dgt PFC(L-PE)/PSC(L-N/L-L) <"2> Function PFC PFC (ATT) PSC Rated voltage 230V (50/60Hz) L-N: 230V (50/60Hz) L-L: 400V (50/60Hz) Operating Voltage 100~280V (45~65Hz) 100~500V (45~65Hz) Range(Auto-Ranging) 2000A/20kA 2000A/20kA (L-N<20Q) 2000A/20kA Nominal Test Current at 0Q External Loop: Magnitude/Duration at 230V 20Q: 6A/40ms 200Q: 2A/20ms 2000Q: 15mA/500ms L-N: 6A/60ms N-PE: 10mA/approx.5s 20Q: 6A/20ms Phase Rotation Operating Voltage 50~500V 45~65Hz Remarks Correct phase sequence : displayed "1.2.3" and Q mark Reversed phase sequence : displayed "3.2.1 " and Q mark Volts Function Volts Frequency Measuring range 0~500V 45~65Hz Accuracy ±2%rdg±4dgt ±0.5%rdg±2dgt Applied standards IEC 61010-1 CATIII 300V (500V L to L) IEC 61010-031, IEC 61557-1,3,7,10, IEC 60529 (IP54), IEC 61326 (EMC) Power source 1.5V AA batteries X 6 *Use of alkaline batteries (LR6) is recommended. Dimensions 84(L) X 184(W) X 133(D)mm Weight 860g (including batteries.) Accessories included 7218 (Main cord) (*3), 7246 (Distribution board test lead), 9155 (Shoulder strap), 9156 (Soft case) LR6 (Battery) X 6, Instruction manual, Calibration certificate *1: Accuracy of L-N LOOP displayed on the Sub Display is synchronized with the one at L-N/L-L function. *2: PSC/PFC Accuracy is derived from measured loop impedance specification and measured voltage specification. *3: 7187 (Power cord [UK]), 7221 (Power cord [SA]), 7222 (Power cord [AU]) EVERYTHING YOU NEED .... KEW 4140 comes complete with everything you need for Loop, PFC, PSC and Phase rotation testing on an electrical installation according to the IEC 60364-6 (or its national equivalent standard). A full set of new safety test leads is in驭cluded, they have an overmould for maximum grip and are extremely robust. The instrument also comes in a soft carry case, a quick reference guide locates on the instrument body, a strap belt and it is supplied with a calibra-tion certificate. Please read the "Safety Warnings" in the instruction manual supplied with the instrument thoroughly and completely SafGty ^VammgS for correct use. Failure to follow the safety rules can cause fire, trouble, electrical shock, etc. Therefore, make sure to operate the instrument on a correct power supply and voltage rating marked on each instrument. For inquires or orders : KYORITSU ELECTRICAL INSTRUMENTS WORKS, LTD. No.5-20,Nakane 2-chome, Meguro-ku, Tokyo, 152-0031 Japan Phone:81-3-3723-0131 Fax:81-3-3723-0152 E-mail:info@kew-ltd.co.jp Factory: Ehime, Japan 9 http://www.kew-ltd.co.jp ISO9001:2000 APPROVED BY BUREAU VERITAS Certification (51 IPHIHTED WITHl 00 I^IsOYINkL In consideration of the environment, soy ink and recycled paper were used in this publication. #The contents of this leaflet are subject to change without notice. KEW 4140-1E May 10 AD

LOOP/PFC/PSC Tester 4140
  1. P. 1

    | Quality and reliability is our tradition KYORITSU LOOP/PFC/PSCTESTER KEW4140 RCDstrippinqdurin^LoomTstinqii No i^KVORfTSU VOLTS f PJUSfl J (■ ■...
