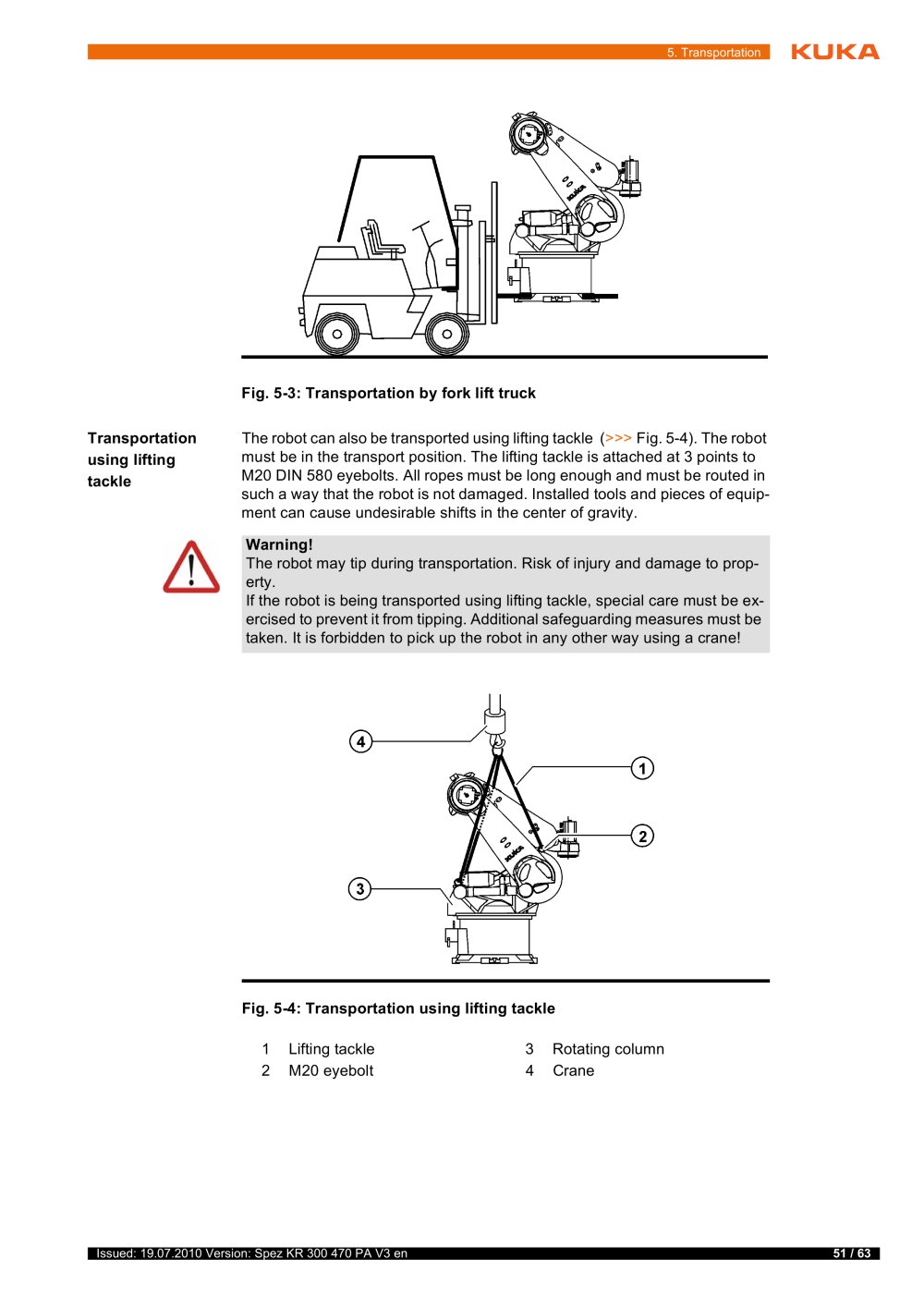

Issued: 19.07.2010 Version: Spez KR 300 470 PA V3 en 51 / 63 5. Transportation Transportation using lifting tackle The robot can also be transported using lifting tackle (>>> Fig. 5-4). The robot must be in the transport position. The lifting tackle is attached at 3 points to M20 DIN 580 eyebolts. All ropes must be long enough and must be routed in such a way that the robot is not damaged. Installed tools and pieces of equipment can cause undesirable shifts in the center of gravity. Fig. 5-3: Transportation by fork lift truck Warning! The robot may tip during transportation. Risk of injury and damage to property. If the robot is being transported using lifting tackle, special care must be exercised to prevent it from tipping. Additional safeguarding measures must be taken. It is forbidden to pick up the robot in any other way using a crane! Fig. 5-4: Transportation using lifting tackle 1 Lifting tackle 3 Rotating column 2 M20 eyebolt 4 Crane
