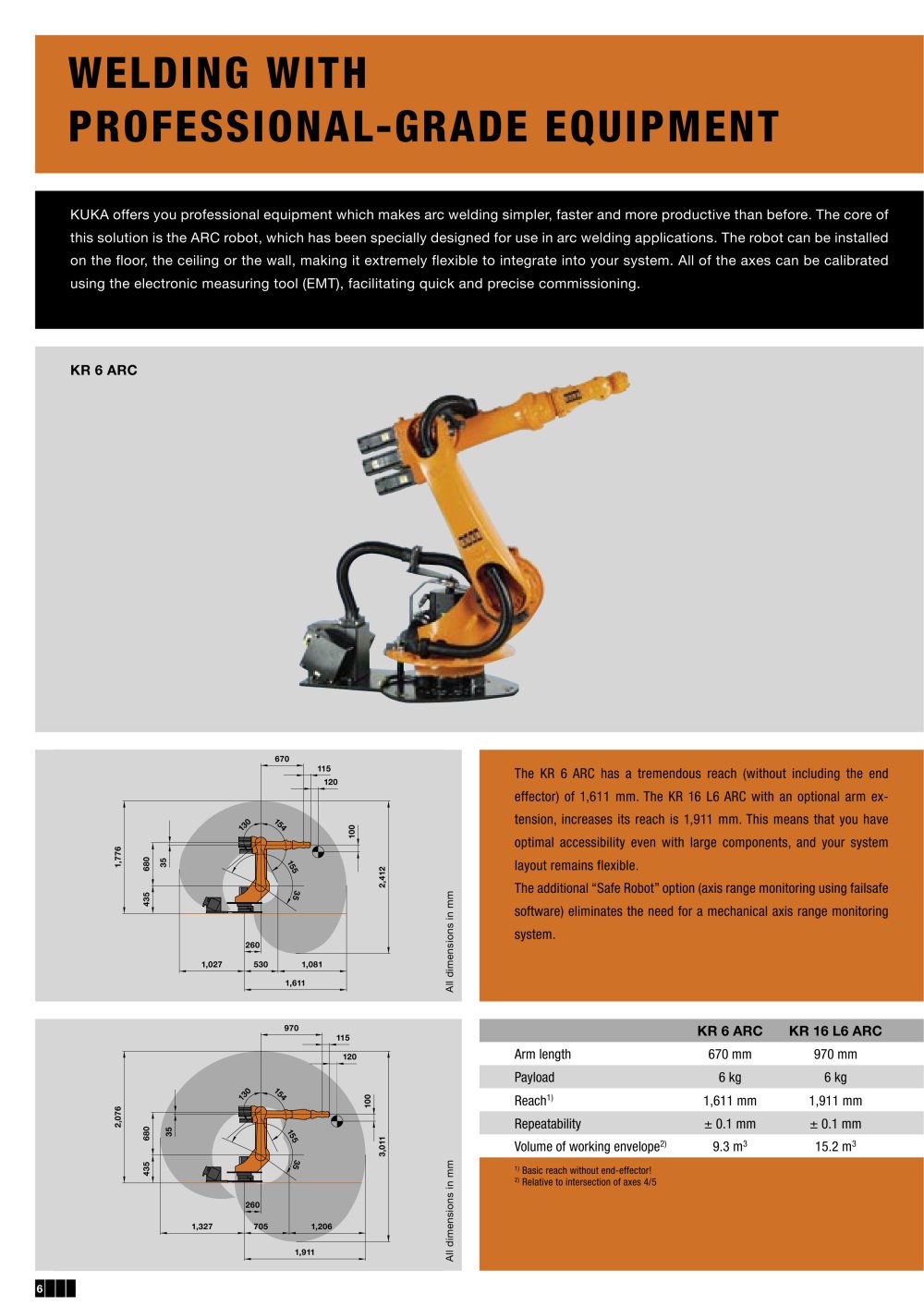

| | | | | | | | | | | | | | | | | | | | | | | | WELDING WITH PROFESSIONAL-GRADE EQUIPMENT | | | | | | | | | | KUKA offers you professional equipment which makes arc welding simpler, faster and more productive than before. The core of this solution is the ARC industrial robot, which has been specially designed for use in arc welding applications. The robot can be installed on the floor, the ceiling or the wall, making it extremely flexible to integrate into your system. All of the axes can be calibrated using the electronic measuring tool (EMT), facilitating quick and precise commissioning. | | | | | | | | | | The KR 6 ARC has a tremendous reach (without including the end effector) of 1,611 mm. The KR 16 L6 ARC with an optional arm extension, increases its reach is 1,911 mm. This means that you have optimal accessibility even with large components, and your system layout remains flexible. The additional "Safe Robot" option (axis range monitoring using failsafe software) eliminates the need for a mechanical axis range industrial monitoring system. | | | | | | | | | | KR 6 ARC 670 mm 6 kg 1,611 mm ± 0.1 mm 9.3 m3 | | KR 16 L6 ARC 970 mm 6 kg 1,911 mm ± 0.1 mm 15.2 m3 | | | | | | Arm length Payload Reach1' Repeatability Volume of working envelope2' r> Basic reach without end-effector! 2> Relative to intersection of axes 4/5 | | | | | | | | | | | | | | 2 | | | | | | | | | | | | | | | | | | | | | | | |
|
