compact robots

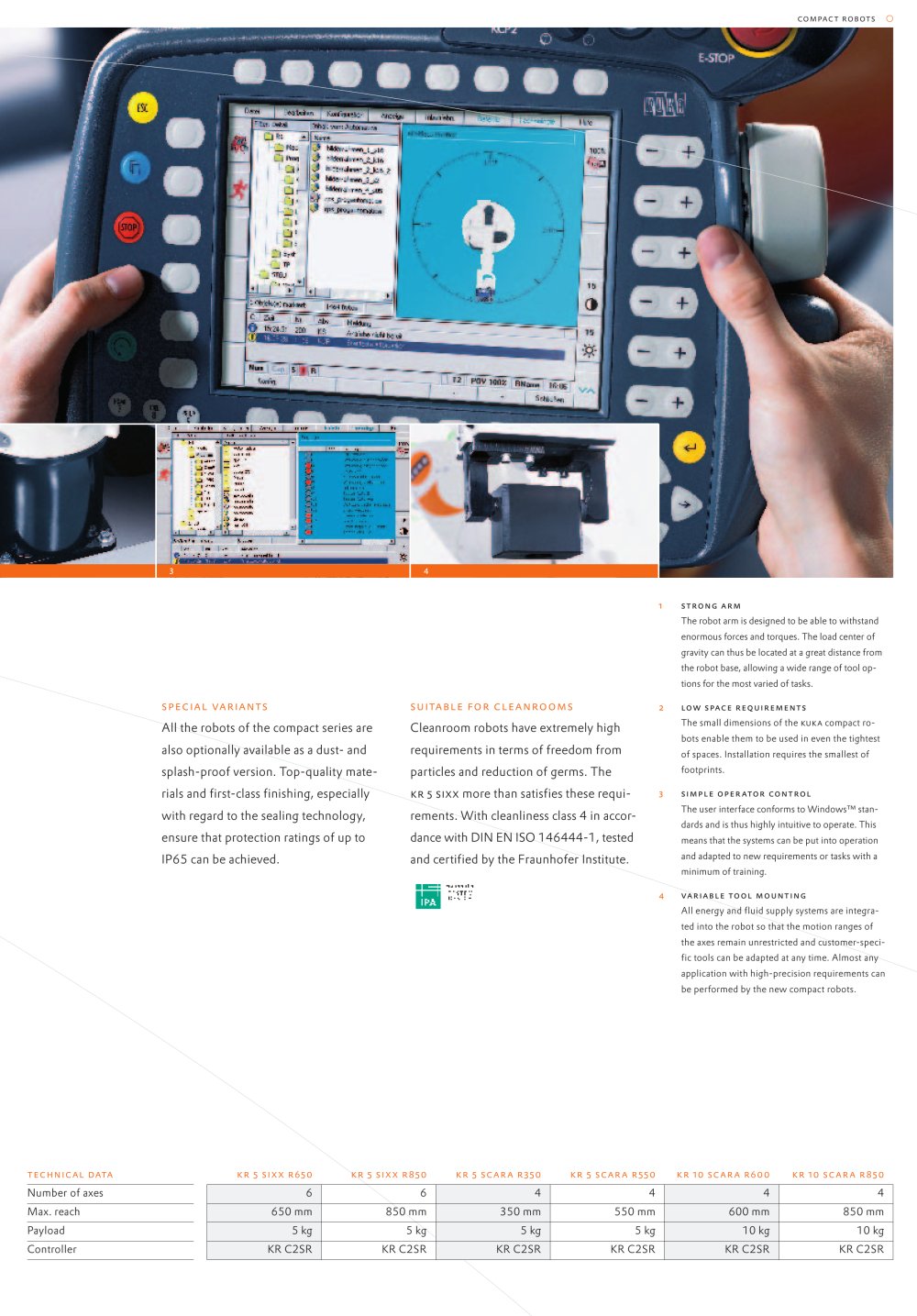

Compact robots - 17587 special variants All the robots of the compact series are also optionally available as a dust- and splash-proof version. Top-quality mate- rials and first-class finishing, especially with regard to the sealing technology, ensure that protection ratings of up to IP65 can be achieved.

34 2low space requirements The small dimensions of the kuka compact ro-bots enable them to be used in even the tightest of spaces. Installation requires the smallest of footprints. 1strong arm 3simple operator control The robot arm is designed to be able to withstand enormous forces and torques. The load center of gravity can thus be located at a great distance from the robot base, allowing a wide range of tool op- tions for the most varied of tasks. The user interface conforms to Windows™ stan-dards and is thus highly intuitive to operate. This means that the systems can be put into operation and adapted to new requirements or tasks with a minimum of training. 4variable tool mounting

kr 5 sixx more than satisfies these requi-rements. With cleanliness class 4 in accor- dance with DIN EN ISO 146444-1, tested and certified by the Fraunhofer Institute.

All energy and fluid supply systems are integra-ted into the robot so that the motion ranges of the axes remain unrestricted and customer-speci- fic tools can be adapted at any time. Almost any application with high-precision requirements can be performed by the new compact robots.

suitable for cleanrooms Cleanroom robots have extremely high requirements in terms of freedom from particles and reduction of germs. The

technical datakr 5 sixx r650 kr 5 sixx r850kr 5 scara r350kr 5 scara r550kr 10 scara r600kr 10 scara r850 Number of axes664444 Max. reach650 mm850 mm350 mm550 mm600 mm850 mm Payload5 kg5 kg5 kg5 kg10 kg10 kg ControllerKR C2SRKR C2SRKR C2SRKR C2SRKR C2SRKR C2SR
