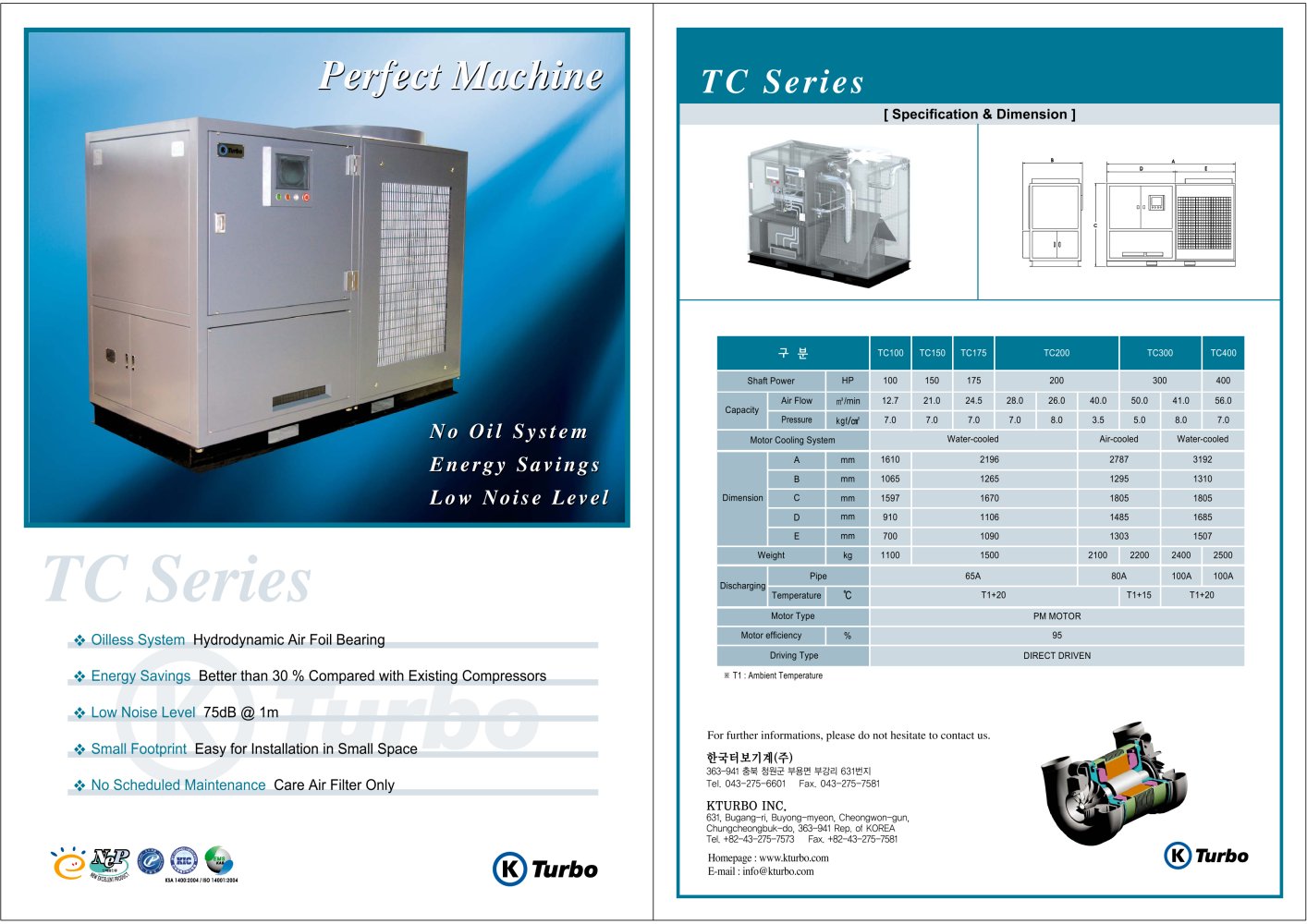

Perfect Machine

D6B

TC200

TC400


Shaft Power	HP	100	150	175	200	30	0 400
Air Flow Capacity Pressure	m'/min kgf/cnf	12.7 7.0	21.0 7.0	24.5 28.0 7.0 7.0	26.0 8.0	40.0 50.0 3.5 5.0	41.0 56.0 8.0 7.0
Motor Cooling System				Water-cooled		Air-cooled	Water-cooled
A	mm	1610		2196		2787	3192
B	mm	1065		1265		1295	1310
Dimension C	mm	1597		1670		1805	1805
D	mm	910		1106		1485	1685
LU 1	mm	700		1090		1303	1507
Weight	kg	1100		1500		2100 2200	2400 2500
Pipe Discharging Temperature	•c			65A T1+20		80A T1+15	100A 100A T1+20

o Oil System Energy Savings Low Noise Level

Motor Type Motor efficiency Driving Type

X T1 : Ambient Temperature

PM MOTOR 95

DIRECT DRIVEN

❖ Oilless System Hydrodynamic Air Foil Bearing

❖ Energy Savings Better than 30 % Compared with Existing Compressors

❖ Low Noise Level 75dB @ 1m

❖ Small Footprint Easy for Installation in Small Space

❖ No Scheduled Maintenance Care Air Filter Only

For further informations, please do not hesitate to contact us.

*H-E].a.7]7ii(^)

363-941 SSS 6316M

Tel. 043-275-6601 Fax. 043-275-7581

KTURBO INC.

631 Bugang-ri Buyong-myeon Cheongwon-gun Chungcheongbuk-do 363-941 Rep of KOREA ' TeL +82-43-275-7573 Fax. +82-43-275-7581

Homepage : www.kturbo.com E-mail : info@kturbo.com
