Type Series Booklet S 100D 60 Hz

Type Series Booklet S 100D 60 Hz
16Pages

Catalog excerpts

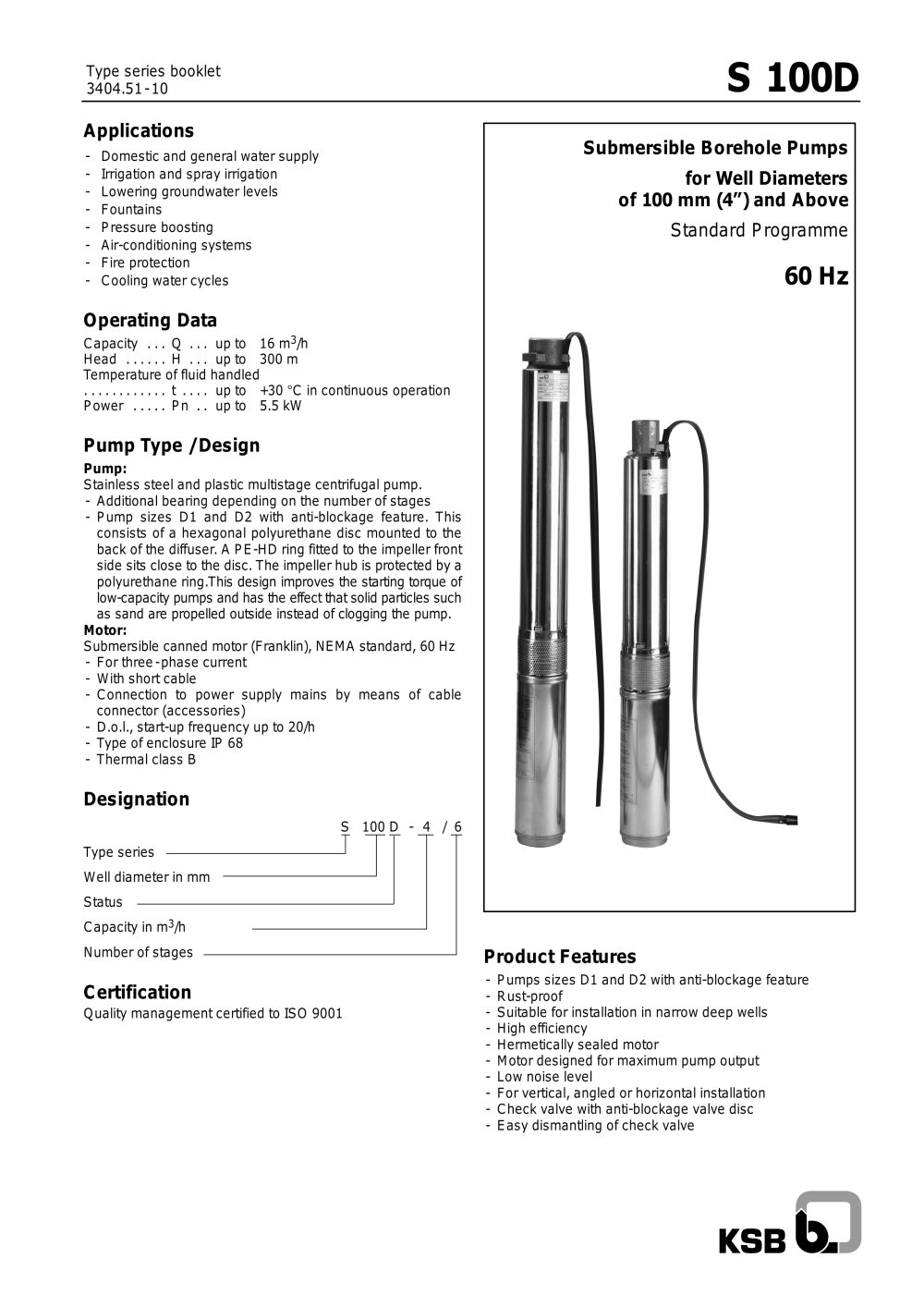

Type series booklet S 100D 3404.51-10 Applications - Domestic and general water supply - Irrigation and spray irrigation - Lowering groundwater levels - Fountains - Pressure boosting - Air-conditioning systems - Fire protection - Cooling water cycles Operating Data Capacity . . . Q . . . up to 16 m3/h Head . . . . . . H . . . up to 300 m Temperature of fluid handled . . . . . . . . . . . . t . . . . up to +30 °C in continuous operation Power . . . . . Pn . . up to 5.5 kW Pump Type / Design Pump: Stainless steel and plastic multistage centrifugal pump. - Additional bearing depending on the number of stages - Pump sizes D1 and D2 with anti-blockage feature. This consists of a hexagonal polyurethane disc mounted to the back of the diffuser. A PE-HD ring fitted to the impeller front side sits close to the disc. The impeller hub is protected by a polyurethane ring.This design improves the starting torque of low-capacity pumps and has the effect that solid particles such as sand are propelled outside instead of clogging the pump. Motor: Submersible canned motor (Franklin), NEMA standard, 60 Hz - For three-phase current - With short cable - Connection to power supply mains by means of cable connector (accessories) - D.o.l., start-up frequency up to 20/h - Type of enclosure IP 68 - Thermal class B Designation S 100 D - 4 / 6 Type series Well diameter in mm Status Capacity in m3/h Number of stages Certification Quality management certified to ISO 9001 Submersible Borehole Pumps for Well Diameters of 100 mm (4”) and Above Standard Programme 60 Hz Product Features - Pumps sizes D1 and D2 with anti-blockage feature - Rust-proof - Suitable for installation in narrow deep wells - High efficiency - Hermetically sealed motor - Motor designed for maximum pump output - Low noise level - For vertical, angled or horizontal installation - Check valve with anti-blockage valve disc - Easy dismantling of check valve

Open the catalog to page 1

S 100D 1 S 100D 2 S 100D 4 S 100D 7 S 100D 12 60 Hz S 100D 2 Selection Chart 60 Hz (Ranges on Offer) n 3450 rpm

Open the catalog to page 2

60 Hz S 100D 3 Materials Component Standard design Pump ... Outer pump casing / Suction casing / Valve housing CrNi steel (1.4301) Stage casing CrNi steel (1.4301) Stage casing (diffuser) / Impeller glass fibre reinforced Noryl (PPO GF20) Shaft Cr steel (1.4021) Bearing bush Nitril NBR 80 Screws, bolts and nuts CrNiMo steel (A4-70) Motor ... Shaft CrNi steel (1.4305) Bearing carrier CrNi steel (1.4301) Stator case CrNi steel (1.4301) Bearings / Lubrication Plain bearings, lubricated by the fluid pumped or by the motor fill liquid. Depending on the number of stages, an additional...

Open the catalog to page 3

60 Hz S 100D 4 Design Features (Pump sizes D1 - D2) Non-return valve with double-guided valve disc - No jamming or tilting. - If not required, the non-return valve may be removed. Diffusers with smooth surfaces - Made of glass fibre reinforced Noryl. High-performance impellers - Made of glass fibre reinforced Noryl, highly abrasion- and corrosion-resistant. - With integrated keys for easy assembly. Pump bearing with grooves - Maintenance-free and highly wear-resistant. - For smooth long-term operation. Franklin submersible motor - Designed for max. pump power to protect unit from overloads....

Open the catalog to page 4

60 Hz S 100D 7 Design Features (Pump Sizes D4 - D7) Non-return valve with double-guided valve disc - No jamming or tilting. - If not required, the nonreturn valve may be removed. Diffusers with smooth surfaces - Made of glass fibrereinforced Noryl. High-duty impellers - Made of glass fibre-reinforced Noryl, highly abrasionand corrosion-resistant. - With integrated keys for easy assembly. Pump bearing with grooves - Maintenance-free and highly wear-resistant. - For smooth long-term operation. Franklin submersible motor - Designed for max. pump output and therefore protected against...

Open the catalog to page 7

Capacity 3 6 8 11 16 21 24 For information on cooling shroud refer to page 10. 60 Hz S 100D 8 S 100D - 4 for well diameters of 100 mm (4 inches) and above Pumps with submersible motors for ... - Temperature of fluid handled . . . . . . . . . . . . . . up + 30 oC - Current / Operating voltage . . . . . . . . . . . . . . . . . 3 /460 V - Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . direct Rated power (motor) Current intensity for 3 460 V Installation 1) Pump unit S 100D PN kW IN A 4 / 3 1.00 2.4 v + h 4 / 6 1.80 4.1 v + h 4 / 8 2.50 5.6 v + h 4 / 11...

Open the catalog to page 8

Capacity 4 6 8 11 13 18 For information on cooling shroud refer to page 10. 60 Hz S 100D 9 S 100D - 7 for well diameters of 100 mm (4 inches) and above Pumps with submersible motors for ... - Temperature of fluid handled . . . . . . . . . . . . . . up + 30 oC - Current / Operating voltage . . . . . . . . . . . . . . . . . 3 /460 V - Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . direct Rated power (motor) Current intensity for 3 460 V Installation 1) Pump unit S 100D PN kW IN A 7 / 4 1.80 4.1 v + h 7 / 6 2.50 5.6 v + h 7 / 8 3.40 7.4 v + h 7 / 11 4.20...

Open the catalog to page 9

60 Hz S 100D 10 Design Features (Pump Size D12) Diffusers with smooth surfaces - Made of glass fibrereinforced Noryl. Pump bearings with grooves - Maintenance-free and highly wear-resistant. - For smooth long-term operation. Stainless steel stage casing without return vanes - High pressure resistance. - Easy assembly and dismantling. High-duty impellers - Made of glass fibre-reinforced Noryl, highly abrasionand corrosion-resistant. - With integrated keys for easy assembly. Franklin submersible motor - Designed for max. pump output and therefore protected against overloading. - Easy-to-fit...

Open the catalog to page 10

Capacity For information on cooling shroud refer to page 10. 60 Hz S 100D 11 S 100D - 12 for well diameters of 100 mm (4 inches) and above Pumps with submersible motors for ... - Temperature of fluid handled . . . . . . . . . . . . . . up + 30 oC - Current / Operating voltage . . . . . . . . . . . . . . . . . 3 /460 V - Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . direct Ratedpower (motor) Current intensity for 3 460 V Installation 1) Pump unit S 100D PN kW IN A 12 / 4 1.80 4.1 v + h 12 / 6 3.40 7.4 v + h 12 / 10 4.20 8.7 v 12 / 13 6.40 13.1 v 1) v =...
