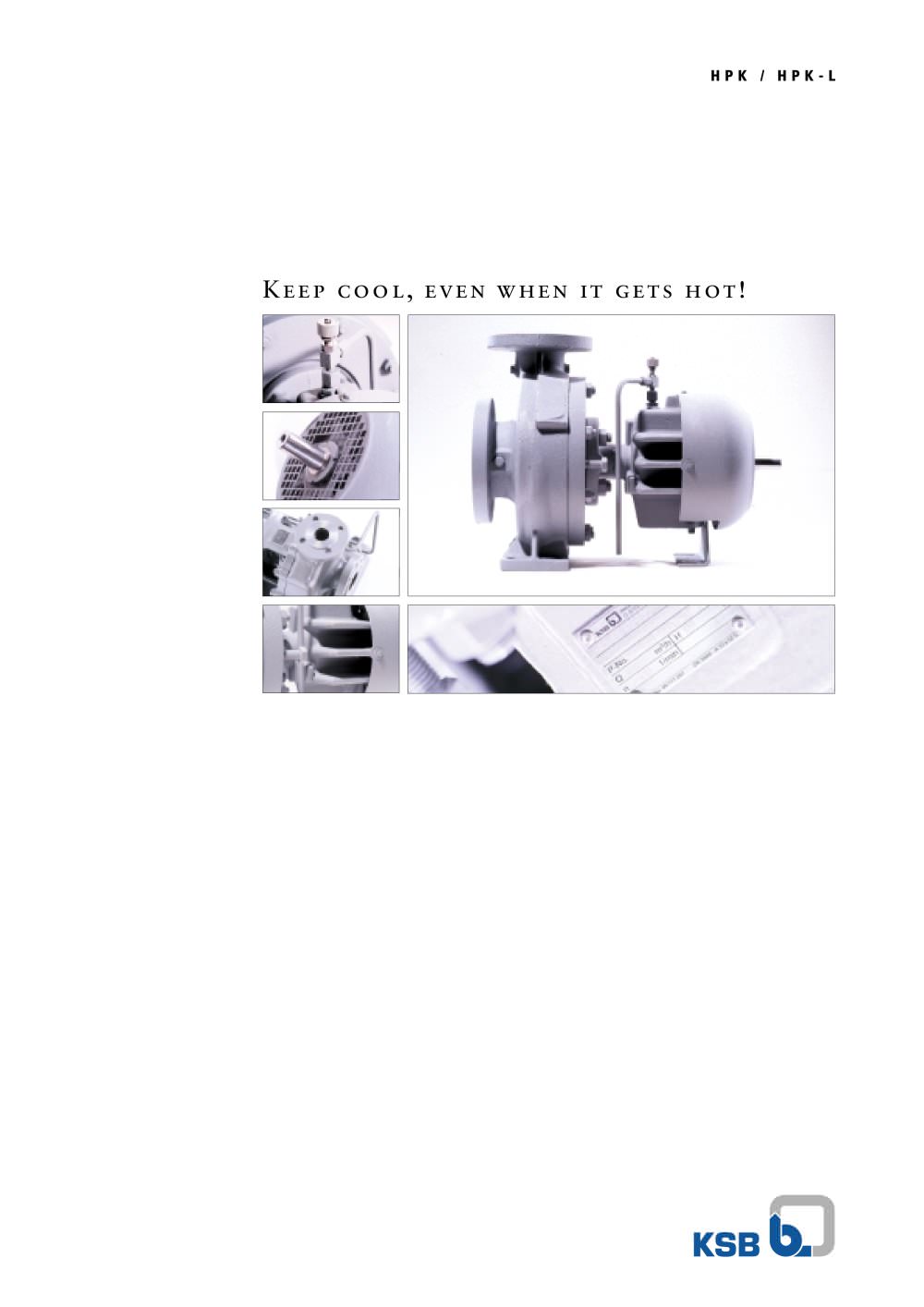

Keep cool, even when it gets hot! H P K / H P K - L

Open the catalog to page 1

1 50 6 Q m3/h 10 100 400 0,3 0,5 1 10 50 100 50 20 Q I/s Hm 100 Low operating costs High efficiency combined with long operating life H P K - L well proven the CPK; units date Easy to service Back-pull-out design and modular construction reduces spares holding HPK-L HPKL Operating limits HPK-L: EN JS 1025 (Nodular cast iron) GP 240 GH+N (Carbon steel) 1.7706 (High tensile steel) Materials: “No cooling water needed; up to 230 °C” Due to the heat barrier, large cooling ribs, and integrated cooling fan Long operating life (MTBF) Heavy duty thrust bearing and silicon carbide radial bearing

Open the catalog to page 2

Discharge pressure [bar] Water Steam HPK-L PN 25 HPK-L PN 40 Temperature [ °C] 0 50 100 150 200 250 0 5 10 15 20 25 30 35 40 45 Air cooled for hot water up to 230 °C no cooling water required. Low operating costs no cooling water or auxiliary piping needed. Environmentaly friendly no treatment and disposal of cooling water.

Open the catalog to page 3

Low operating costs High efficiency combined with long operating life well proven the CPK; units date HPK-L HPKL Operating limits HPK Materials: Flexible Many seal arrangements to suit the application “Dry shaft” Shaft protecting sleeve prevents contact with pumped medium and locates mechanical seal Reliable Heavy duty bearing and shaft H P K 1 50 4 Q m3/h 10 100 400 0,3 0,5 1 10 50 100 50 20 H m Q I/s 100 700 10 200
