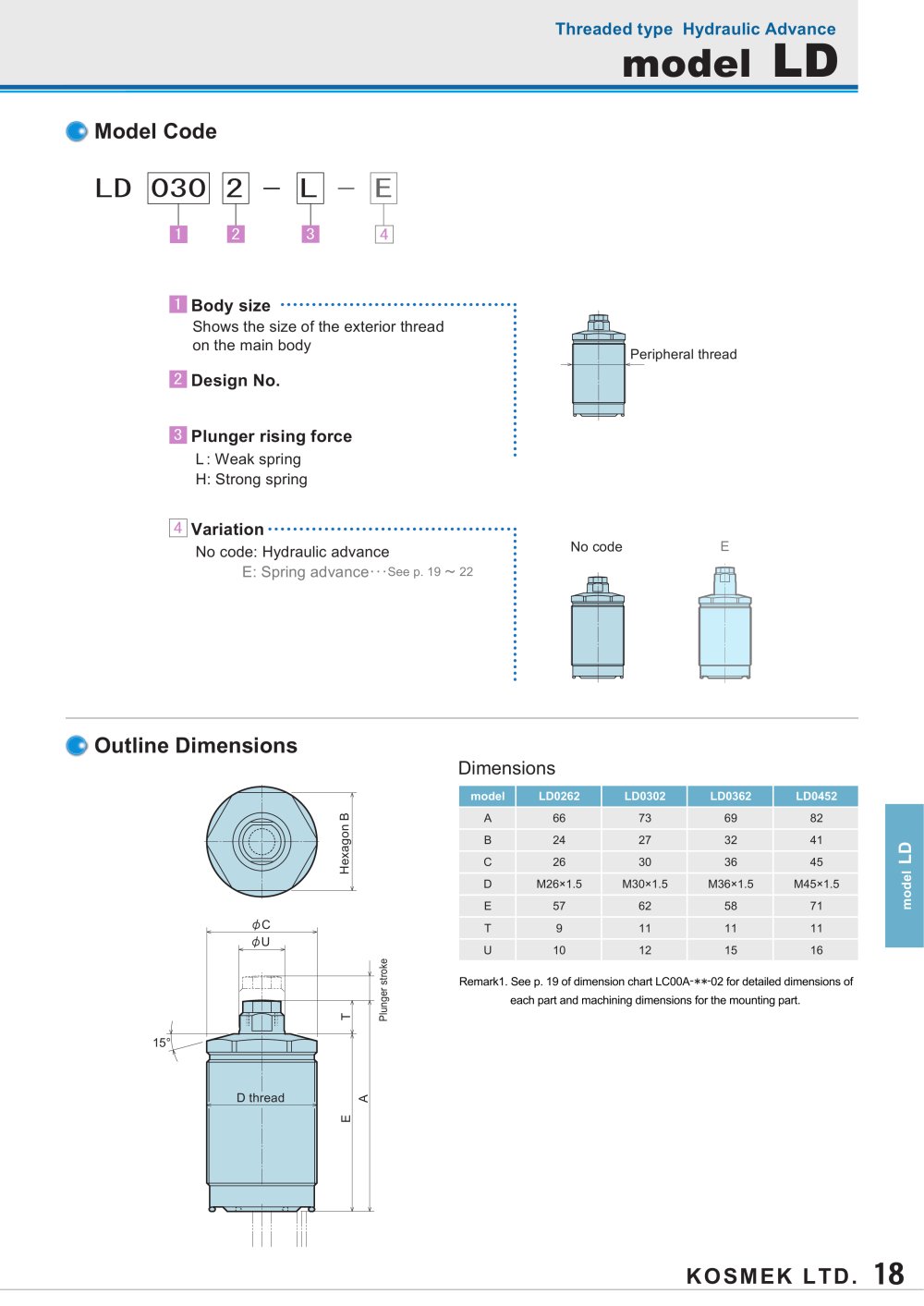

KOSMEK LTD. 18
model LD Threaded type Hydraulic Advance
model LD
LD 030 2 - L - E
model
A
B
C
D
E
T
U
LD0262
66
24
26
M26×1.5
57
9
10
LD0302
73
27
30
M30×1.5
62
11
12
LD0362
69
32
36
M36×1.5
58
11
15
LD0452
82
41
45
M45×1.5
71
11
16
No code E
15°
E Hexagon B
öC
D thread
öU
T
A
Plunger stroke
Remark1. See p. 19 of dimension chart LC00A-––-02 for detailed dimensions of
each part and machining dimensions for the mounting part.
Model Code
Outline Dimensions
1
2
3
1 2 3
Dimensions
Body size
Design No.
Plunger rising force
Variation
L: Weak spring
H: Strong spring
Shows the size of the exterior thread
on the main body
Peripheral thread
No code: Hydraulic advance
E: Spring advance¥¥¥See p. 19 ` 22
4
4
