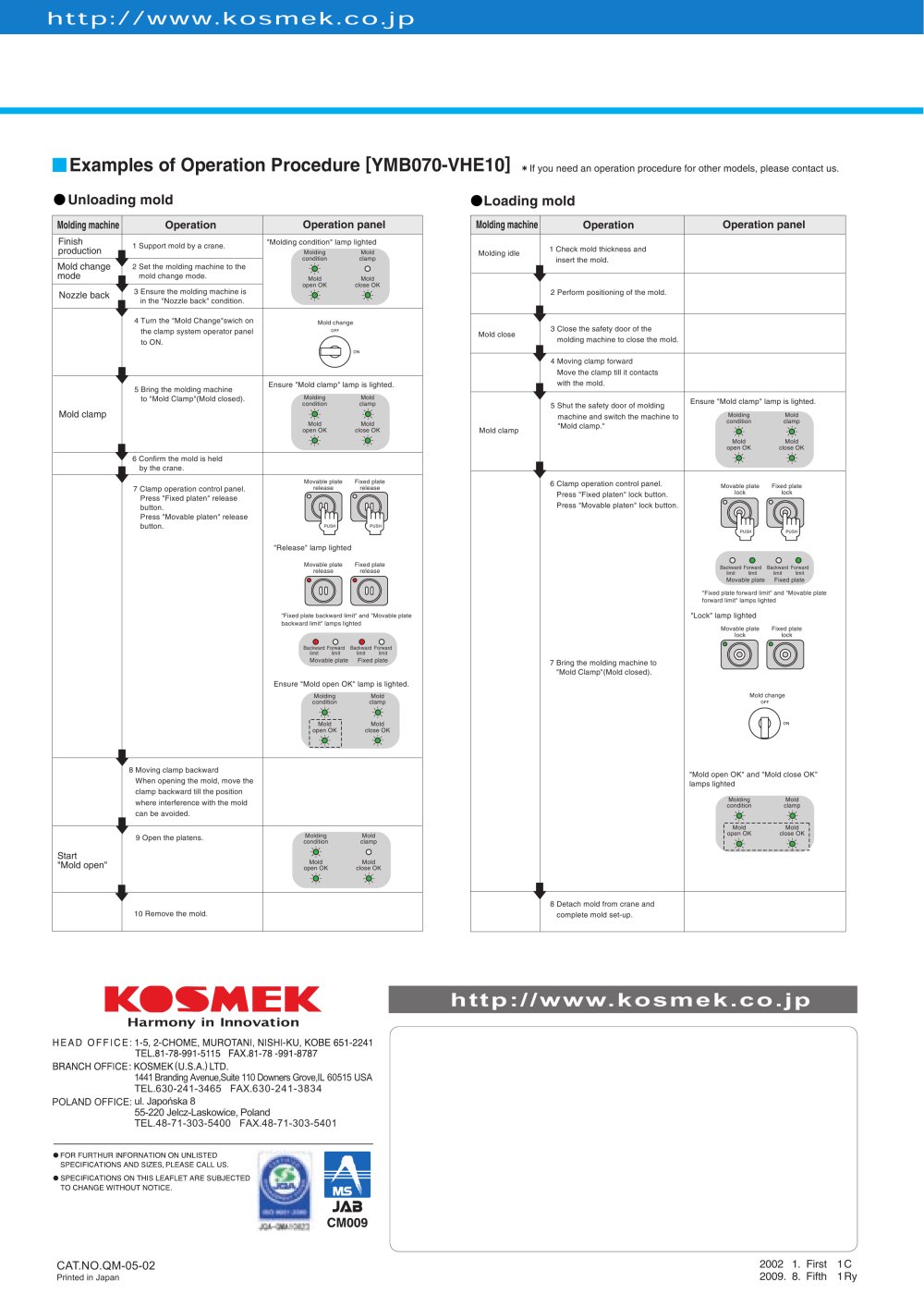

.. ..Loading mold 7 Clamp operation control panel. Press "Fixed platen" release button. Press "Movable platen" release button. 1 Support mold by a crane. 2 Set the molding machine to the mold change mode. Mold change mode 3 Ensure the molding machine is in the "Nozzle back" condition. 6 Confirm the mold is held by the crane. 4 Turn the "Mold Change"swich on the clamp system operator panel to ON. 5 Bring the molding machine to "Mold Clamp"(Mold closed). 9 Open the platens. 10 Remove the mold. "Molding condition" lamp lighted Ensure "Mold clamp" lamp is lighted. Finish production Nozzle back Mold clamp Start "Mold open" Molding machine Operation Operation panel 8 Moving clamp backward When opening the mold, move the clamp backward till the position where interference with the mold can be avoided. Molding condition Mold open OK Mold clamp Mold close OK Molding condition Mold open OK Mold clamp Mold close OK .... ...... Mold change "Release" lamp lighted Ensure "Mold open OK" lamp is lighted. Movable plate release Fixed plate release Movable plate release Fixed plate release ........ ........ Molding condition Mold open OK Mold clamp Mold close OK Molding condition Mold open OK Mold clamp Mold close OK Molding idle Mold close 1 Check mold thickness and insert the mold. 2 Perform positioning of the mold. 5 Shut the safety door of molding machine and switch the machine to "Mold clamp." 8 Detach mold from crane and complete mold set-up. 6 Clamp operation control panel. Press "Fixed platen" lock button. Press "Movable platen" lock button. 7 Bring the molding machine to "Mold Clamp"(Mold closed). Mold clamp "Lock" lamp lighted "Mold open OK" and "Mold close OK" lamps lighted Molding machine Operation Operation panel Ensure "Mold clamp" lamp is lighted. 3 Close the safety door of the molding machine to close the mold. 4 Moving clamp forward Move the clamp till it contacts with the mold. Molding condition Mold open OK Mold close OK Mold clamp Molding condition Mold open OK Mold clamp Mold close OK ........ ........ .... ...... Mold change Movable plate lock Fixed plate lock Movable plate lock Fixed plate lock Backward limit Forward limit Backward limit Forward limit Movable plate Fixed plate "Fixed plate forward limit" and "Movable plate forward limit" lamps lighted ..If you need an operation procedure for other models, please contact us. "Fixed plate backward limit" and "Movable plate backward limit" lamps lighted Backward limit Forward limit Backward limit Forward limit Movable plate Fixed plate ..Unloading mold Examples of Operation Procedure [YMB070-VHE10] 2002. 1. First 1 C Printed in Japan 2009. 8. Fifth 1 Ry CAT.NO.QM-05-02 http://www.kosmek.co.jp ul. Japoñska 8 55-220 Jelcz-Laskowice, Poland TEL.48-71-303-5400 FAX.48-71-303-5401 POLAND OFFICE: 1441 Branding Avenue,Suite 110 Downers Grove,IL 60515 USA TEL.630-241-3465 FAX.630-241-3834
