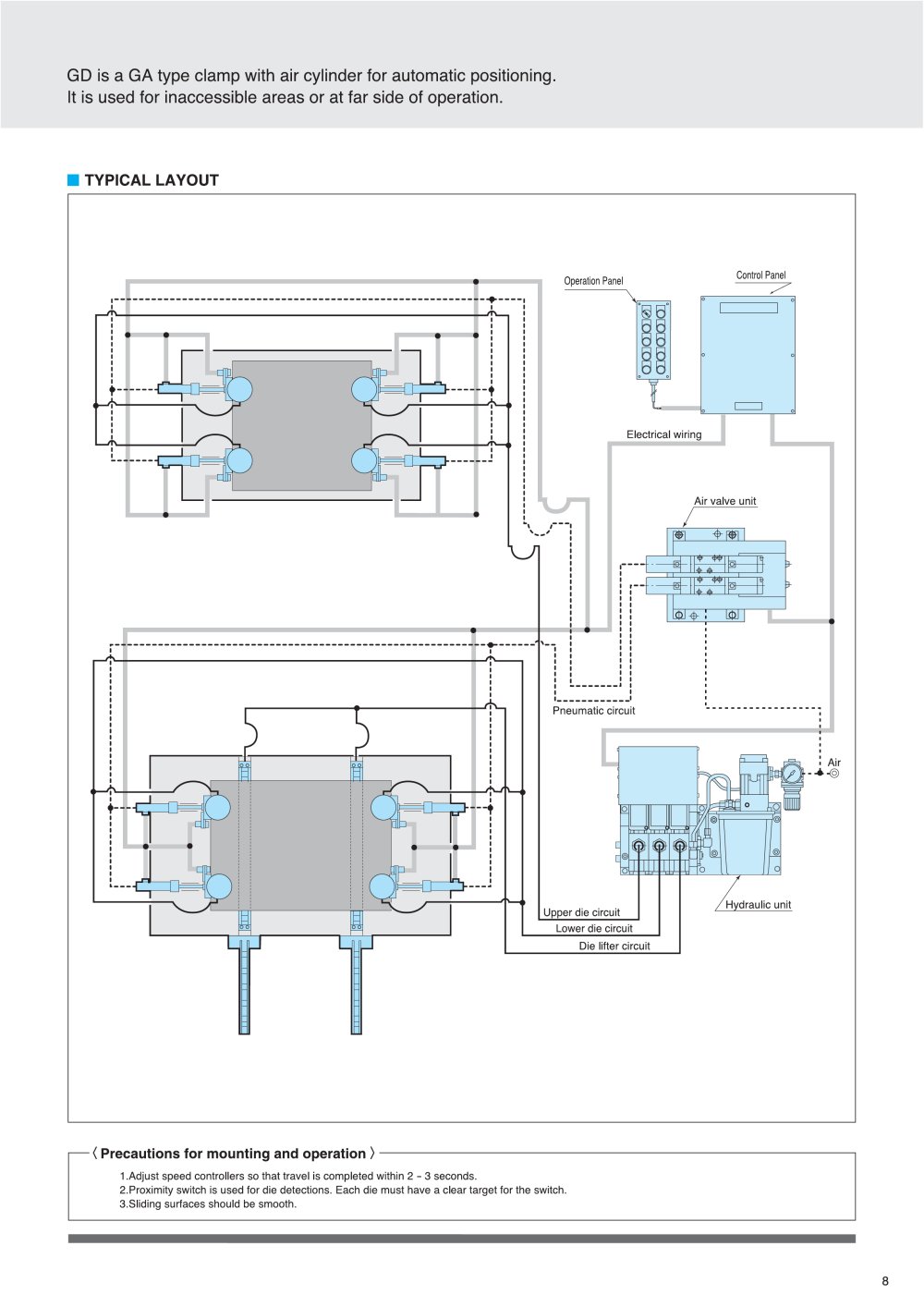

GD is a GA type clamp with air cylinder for automatic positioning. It is used for inaccessible areas or at far side of opération.
TYPICAL LAYOUT
— < Précautions for mounting and opération )-
1 .Adjust speed controllers so that travel is complétée! within 2-3 seconds.
2.Proximity switch is used for die détections. Each die must have a clear target for the switch.
3.Sliding surfaces should be smooth.
