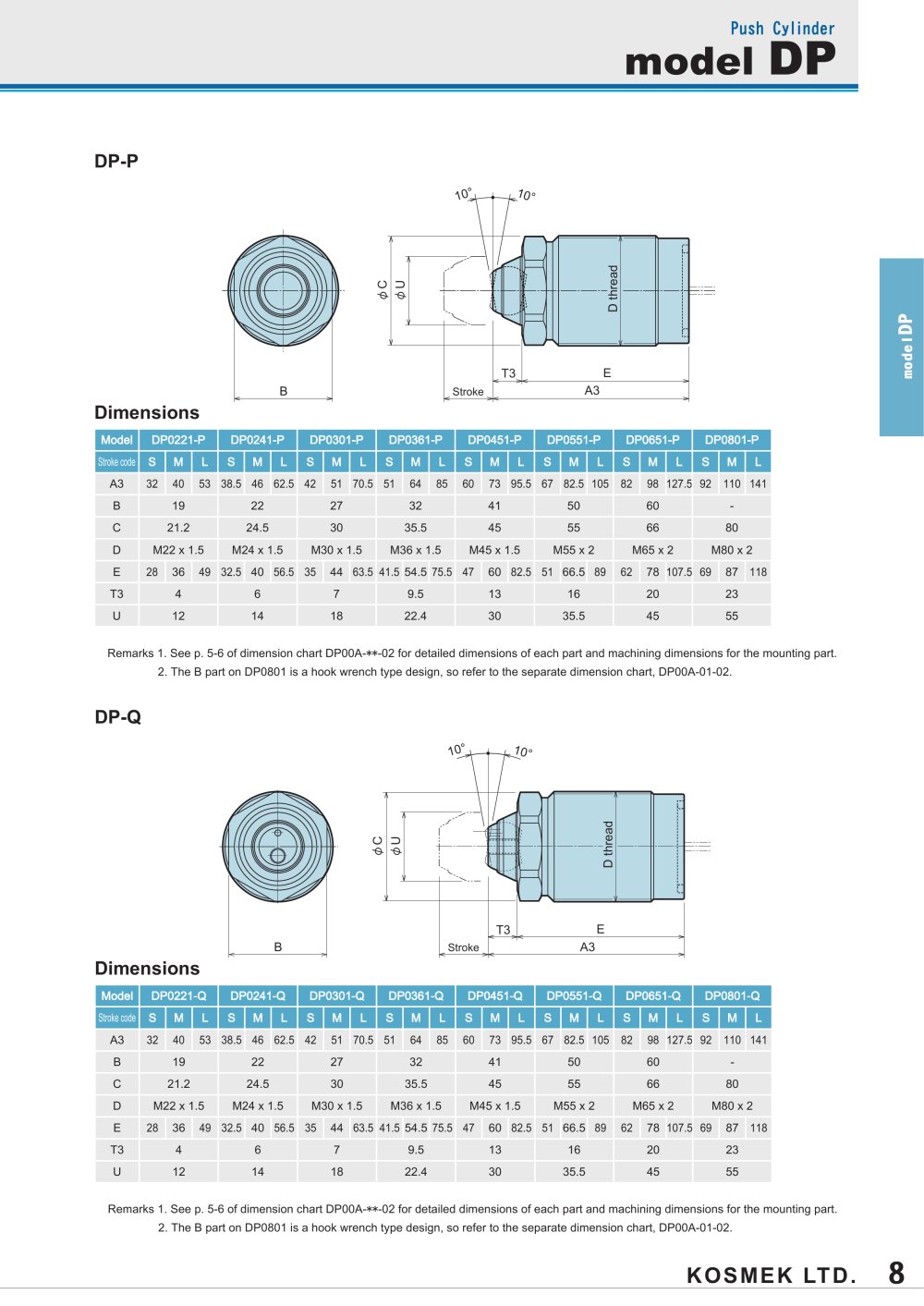

KOSMEK LTD. 8 model DP Push Cylinder modelDP B 10° 10° öC öU Stroke T3 A3 E D thread Dimensions Remarks 1. See p. 5-6 of dimension chart DP00A-**-02 for detailed dimensions of each part and machining dimensions for the mounting part. 2. The B part on DP0801 is a hook wrench type design, so refer to the separate dimension chart, DP00A-01-02. Model Stroke code A3 B C D E T3 U S 32 28 L 53 49 DP0221-P M 40 19 21.2 M22 x 1.5 36 4 12 S 38.5 32.5 L 62.5 56.5 DP0241-P M 46 22 24.5 M24 x 1.5 40 6 14 S 42 35 L 70.5 63.5 DP0301-P M 51 27 30 M30 x 1.5 44 7 18 S 51 41.5 L 85 75.5 DP0361-P M 64 32 35.5 M36 x 1.5 54.5 9.5 22.4 S 60 47 L 95.5 82.5 DP0451-P M 73 41 45 M45 x 1.5 60 13 30 S 67 51 L 105 89 DP0551-P M 82.5 50 55 M55 x 2 66.5 16 35.5 S 82 62 L 127.5 107.5 DP0651-P M 98 60 66 M65 x 2 78 20 45 S 92 69 L 141 118 DP0801-P M 110 - 80 M80 x 2 87 23 55 DP-P B 10° 10° Stroke A3 öC öU T3 E D thread Dimensions DP-Q Remarks 1. See p. 5-6 of dimension chart DP00A-**-02 for detailed dimensions of each part and machining dimensions for the mounting part. 2. The B part on DP0801 is a hook wrench type design, so refer to the separate dimension chart, DP00A-01-02. Model Stroke code A3 B C D E T3 U S 32 28 L 53 49 DP0221-Q M 40 19 21.2 M22 x 1.5 36 4 12 S 38.5 32.5 L 62.5 56.5 DP0241-Q M 46 22 24.5 M24 x 1.5 40 6 14 S 42 35 L 70.5 63.5 DP0301-Q M 51 27 30 M30 x 1.5 44 7 18 S 51 41.5 L 85 75.5 DP0361-Q M 64 32 35.5 M36 x 1.5 54.5 9.5 22.4 S 60 47 L 95.5 82.5 DP0451-Q M 73 41 45 M45 x 1.5 60 13 30 S 67 51 L 105 89 DP0551-Q M 82.5 50 55 M55 x 2 66.5 16 35.5 S 82 62 L 127.5 107.5 DP0651-Q M 98 60 66 M65 x 2 78 20 45 S 92 69 L 141 118 DP0801-Q M 110 - 80 M80 x 2 87 23 55
