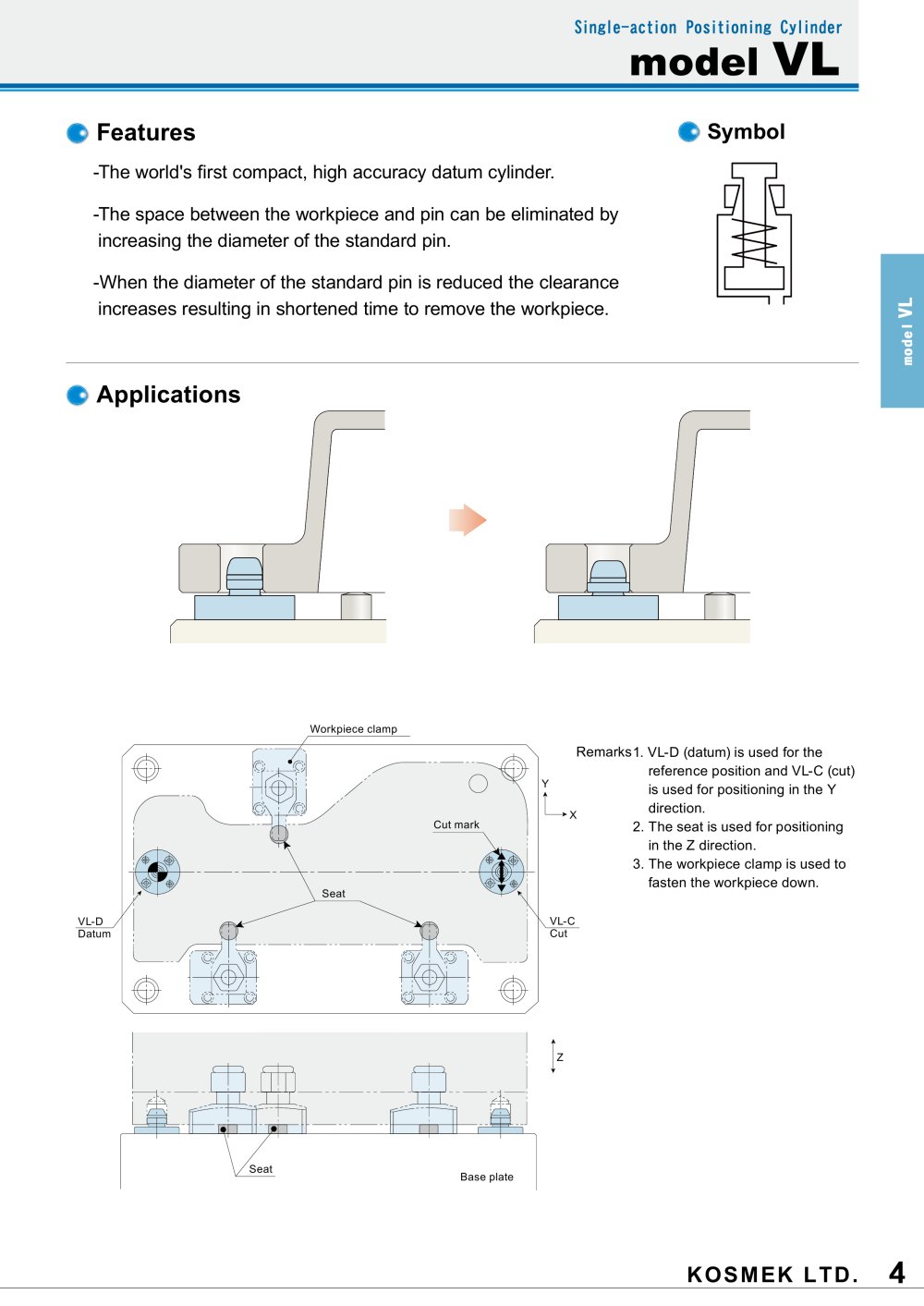

KOSMEK LTD. 4 model VL Symbol model VL Single-action Positioning Cylinder Features Applications Base plate VL-C Cut VL-D Datum Seat Seat Cut mark Workpiece clamp Z X Y Remarks -The world's first compact, high accuracy datum cylinder. -The space between the workpiece and pin can be eliminated by increasing the diameter of the standard pin. -When the diameter of the standard pin is reduced the clearance increases resulting in shortened time to remove the workpiece. 1. VL-D (datum) is used for the reference position and VL-C (cut) is used for positioning in the Y direction. 2. The seat is used for positioning in the Z direction. 3. The workpiece clamp is used to fasten the workpiece down.
