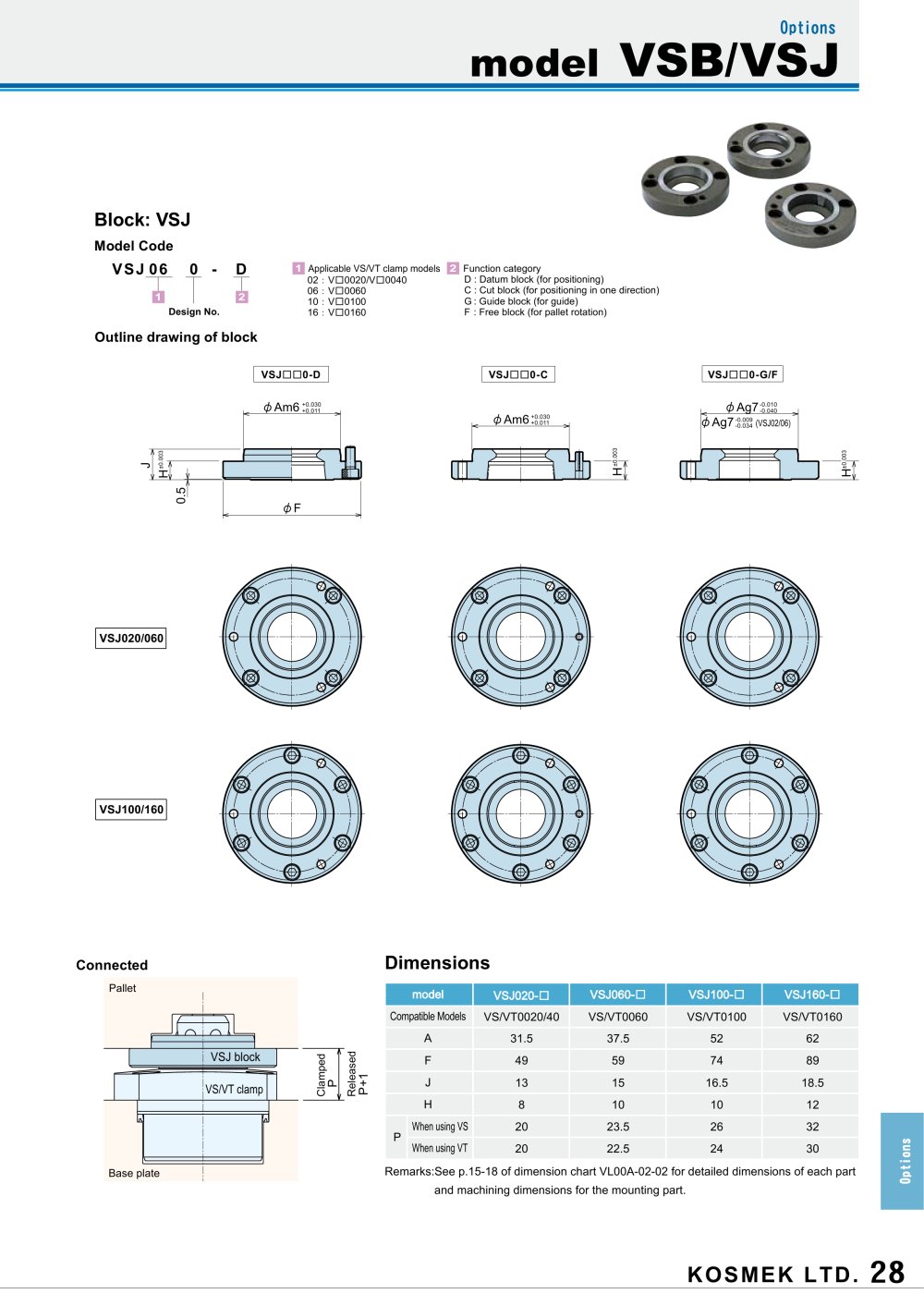

KOSMEK LTD. 28
model VSB/VSJ
Options
Options
Block: VSJ
Model Code
VSJ 06 0 - D
Design No.
Applicable VS/VT clamp models Function category
D : Datum block (for positioning)
C : Cut block (for positioning in one direction)
G : Guide block (for guide)
F : Free block (for pallet rotation)
02..V..0020/V..0040
06..V..0060
10..V..0100
16..V..0160
VSJ....0-D VSJ....0-C VSJ....0-G/F
VSJ020/060
VSJ100/160
1 2
1 2
Remarks:See p.15-18 of dimension chart VL00A-02-02 for detailed dimensions of each part
and machining dimensions for the mounting part.
Dimensions
model VSJ020-.. VSJ060-.. VSJ100-.. VSJ160-..
Compatible Models
A
F
J
H
...... When using VS..
P ..........
...... When using VT..
VS/VT0020/40 VS/VT0060 VS/VT0100 VS/VT0160
31.5
49
13
8
20
20
37.5
59
15
10
23.5
22.5
52
74
16.5
10
26
24
62
89
18.5
12
32
30
Outline drawing of block
Am6 +0.030
+0.011
F
0.5
H±0.003
J
Am6+0.030
+0.011
H±0.003
H±0.003
Ag7-0.010
-0.040
Ag7-0.009
-0.034 (VSJ02/06)
Connected
Pallet
VSJ block
VS/VT clamp
Base plate
P
P+1
Clamped
Released
