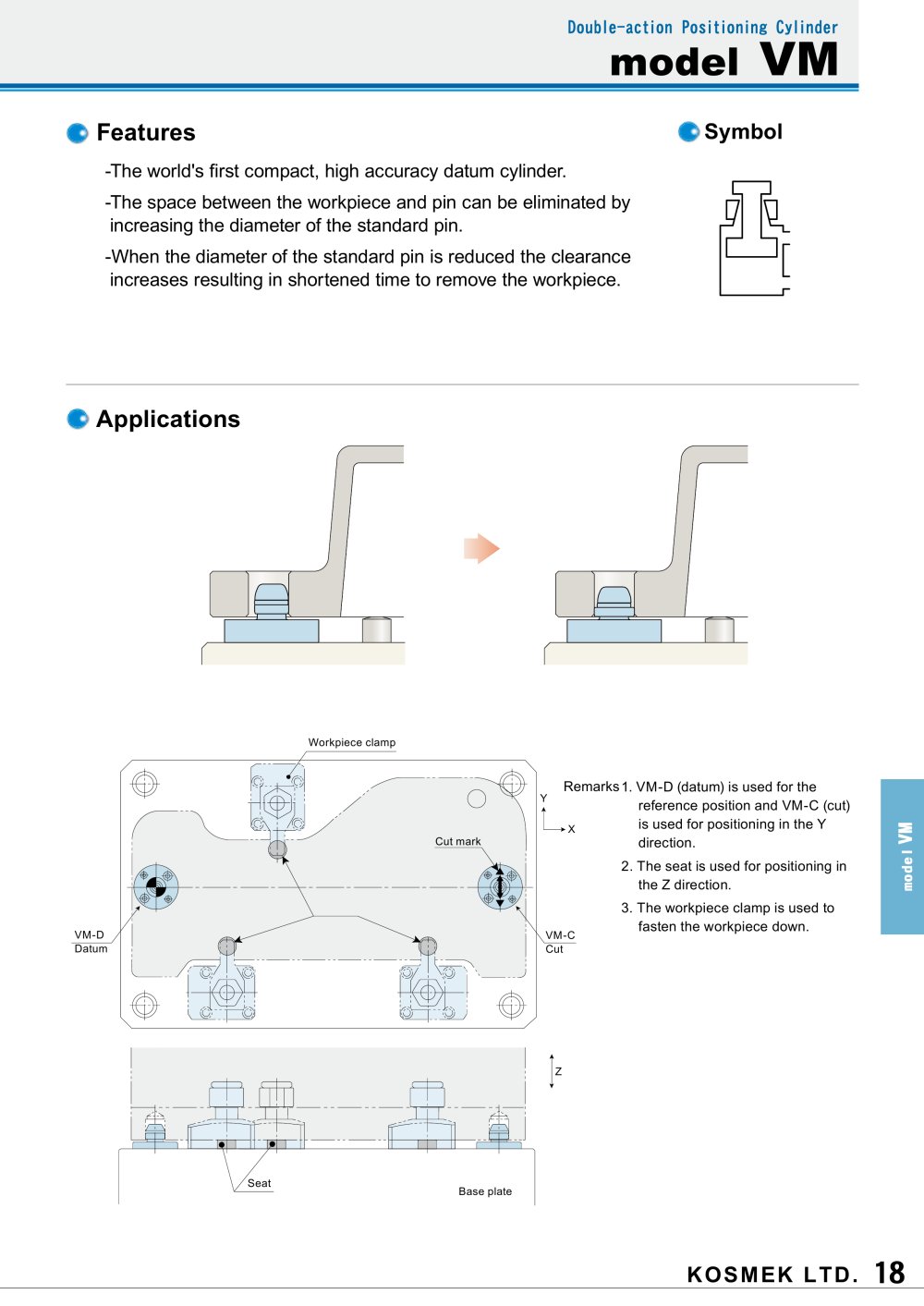

Symbol KOSMEK LTD. 18 model VM Double-action Positioning Cylinder Base plate VM-C Cut VM-D Datum Seat Seat Cut mark Workpiece clamp Z X Y Cut mark Remarks 1. VM-D (datum) is used for the reference position and VM-C (cut) is used for positioning in the Y direction. 2. The seat is used for positioning in the Z direction. 3. The workpiece clamp is used to fasten the workpiece down. model VM Features Applications -The world's first compact, high accuracy datum cylinder. -The space between the workpiece and pin can be eliminated by increasing the diameter of the standard pin. -When the diameter of the standard pin is reduced the clearance increases resulting in shortened time to remove the workpiece.
